Electro-Voice T52 90s - cloth

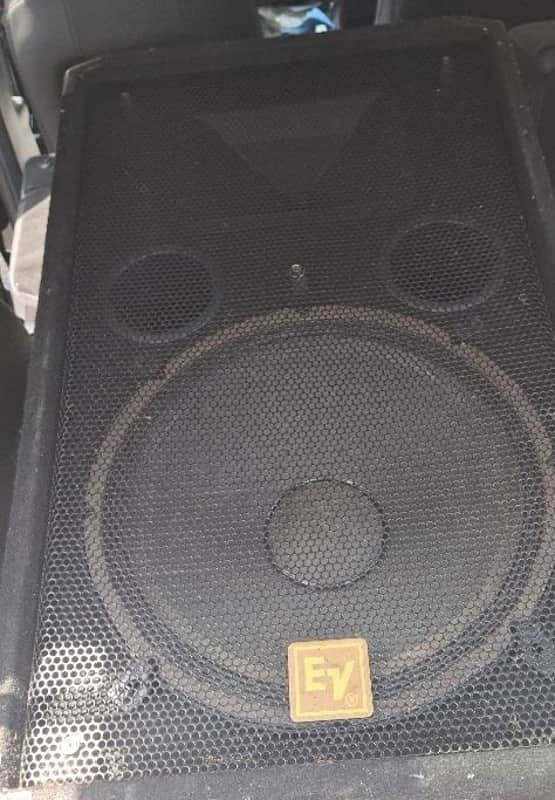

The Electro-Voice T52 are 2-way passive trapezoidal stage speakers designed for live sound and professional audio reinforcement. They deliver robust performance in a durable, carpet-covered wood enclosure. [1, 2, 3, 4]Key Specifications

• System Type: 2-Way Full-Range Passive
• Frequency Response: 55 Hz – 20,000 Hz (-3 dB)
• Power Handling: 300 Watts Continuous (RMS), 1,200 Watts Peak
• Sensitivity: 100.5 dB (1W/1m)
• Maximum Peak Output: 131 dB SPL

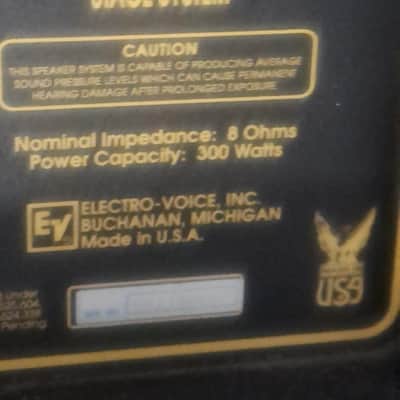

• Nominal Impedance: 8 Ohms [1, 2, 3, 4, 5]

Technical Components

• Low-Frequency Driver: 15-inch high-excursion DL15T woofer
• High-Frequency Driver: DH2010A titanium compression driver
• Coverage Pattern: 90° x 40° Constant-Directivity die-cast horn [1, 2, 3, 4, 5]

Connections & Hardware

• Audio Inputs: Parallel 1/4" phone jacks and Neutrik Speakon connectors
• Protection: Built-in PRO circuit for high-frequency (HF) driver protection
• Mounting: Integral 1-3/8" stand/pole mount socket
• Enclosure: 7-ply, void-free plywood covered in heavy-duty black carpet [1, 2, 3]

Dimensions & Weight

• Height: 31.7 inches
• Width: 19.2 inches
• Depth: 23.7 inches
• Weight: 72 lbs [1, 2]

You can check out the original technical engineering breakdown directly on Electro-Voice.
