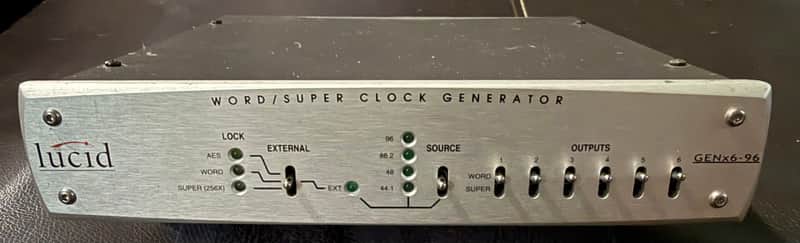

Lucid GENX6-96 Word/Super Clock Generator

Lucid's word and super clock generators (like the popular GENx6-96) are highly stable, low-jitter master synchronization tools for recording and mastering studios. They eliminate digital distortion by providing rock-solid, centralized clock streams to multiple digital audio interfaces and consoles.

Specifications vary slightly depending on the specific model:

Common Core Specifications (e.g., GENx6-96)

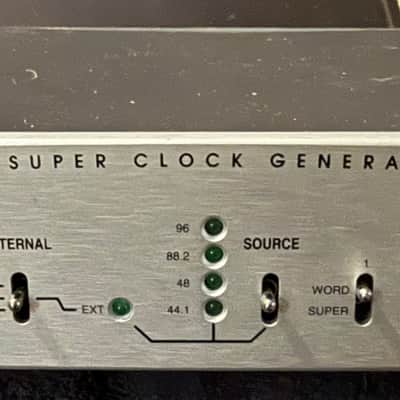

• Internal Sample Rates: 44.1, 48, 88.2, and 96 kHz.

• External Sync Range: 32 kHz to 96 kHz.

• Input/Output Z: AES is 110 Ω; Clock is 75 Ω.

• Connectors: 1 x Balanced XLR-3 (AES Input), 1 x BNC (Word/Super Clock Input), and 6 x BNC (Word/Super Clock Outputs).

• Clock Format: Selectable between standard Word Clock or Super Clock per output.

• Physical Size: 1/2 U rack-mountable chassis (Dimensions: 1.72 × 8.5 × 8 inches).

Advanced Studio Sync Generator (SSG192)

• Output Formats (Simultaneous): Word Clock, 256X Superclock, 1024X Lucid Ultra-Clock, and AES11 sync formats.

• Sample Rates: Supports all standard frequencies from 32 kHz up to 192 kHz.

• Synchronization: Locks directly to house video blackburst (NTSC and PAL), AES3, AES11, or Word Clock.

• Compatibility: Integrates seamlessly with multi-brand workstations and consoles (including Avid, Digidesign, and Yamaha, really anything using word clock and Superclock)
