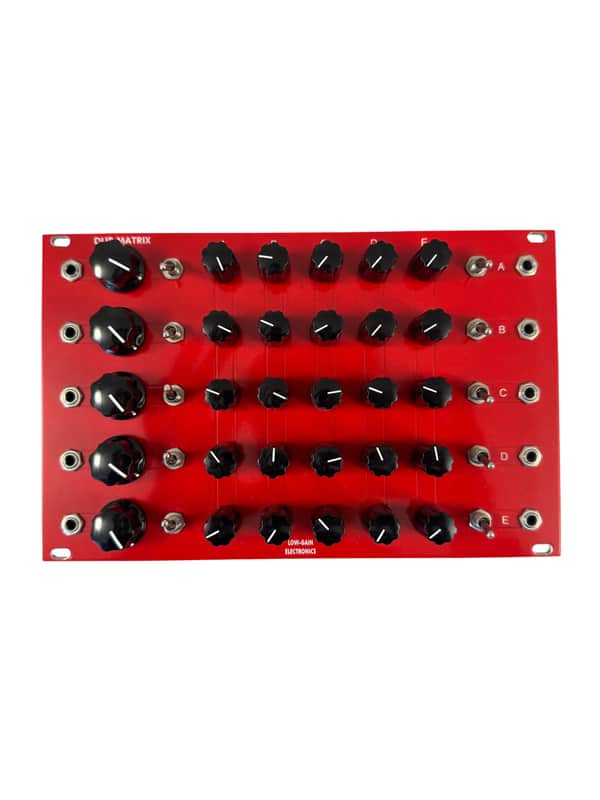

LOW-GAIN ELECTRONICS DUBMATRIX : USED : [DETROIT MODULAR]

5 Channel Active Matrix Mixer

The DubMatrix is a 5 channel 40hp Active* Matrix Mixer!
Features:
5 input channels with normalization expansion header
5 input attenuators
5 input cut switches (pre-summing matrix)
5 output cut switches (post-summing matrix)
5 output jacks with normaliziation expansion header

The DubMatrix is CV and audio friendly, keeping in mind you will have offset/clipping if you use both DC and AC signals at same time.

Inputs have a x2 gain structure so when the input attenuator is at 12(middle), it will function at Unity. Turn it all the way up and your signal is boosted by a gain of 2.

The expansion headers will allow for future modules to be added to the DubMatrix to make stand alone desktop Matrix Mixer System (coming soon!)

*while this unit is active, it can be run passively by removing the active PCB and jumping the headers on the rear of the PCB.

Dimensions: 40 HP
