The Ibanez Layer Delayer LD303 is one of the more ambitious delay pedals the company has released in years—moving far beyond traditional single-repeat echo sounds into something that feels closer to a rhythmic sound-design tool. Instead of simply repeating a standard delay line, the LD303 generates layered rhythmic subdivisions including quarter notes, 16th notes, and triplets, each with independently adjustable volume controls. The result is a pedal capable of creating evolving textures, syncopated rhythmic patterns, ambient soundscapes, and stereo movement that go well beyond conventional delay territory.

At the core of the LD303 is a morphing delay engine that blends between digital, analog, and tape-style echoes rather than forcing hard switching between modes. The TONE control allows smooth transitions between those delay textures, while the onboard FILTER section adds a simulated low-pass ladder filter capable of everything from subtle warmth to darker, more aggressive filtered repeats.

Stereo functionality is a major part of the design. The LD303 includes stereo inputs and outputs along with eight auto-panning modes that allow the repeats to move dynamically across the stereo field. Combined with the independent rhythmic subdivisions, the pedal can create everything from subtle spatial widening to complex ambient movement and rhythmic ping-pong effects.

Ibanez also built the LD303 with deeper integration in mind. MIDI in/thru, USB-C connectivity, preset storage, expression compatibility, and an onboard FX loop for the delay path allow players to incorporate external effects directly into the repeats themselves. The pedal ships with 20 factory presets and supports up to 50 total preset slots.

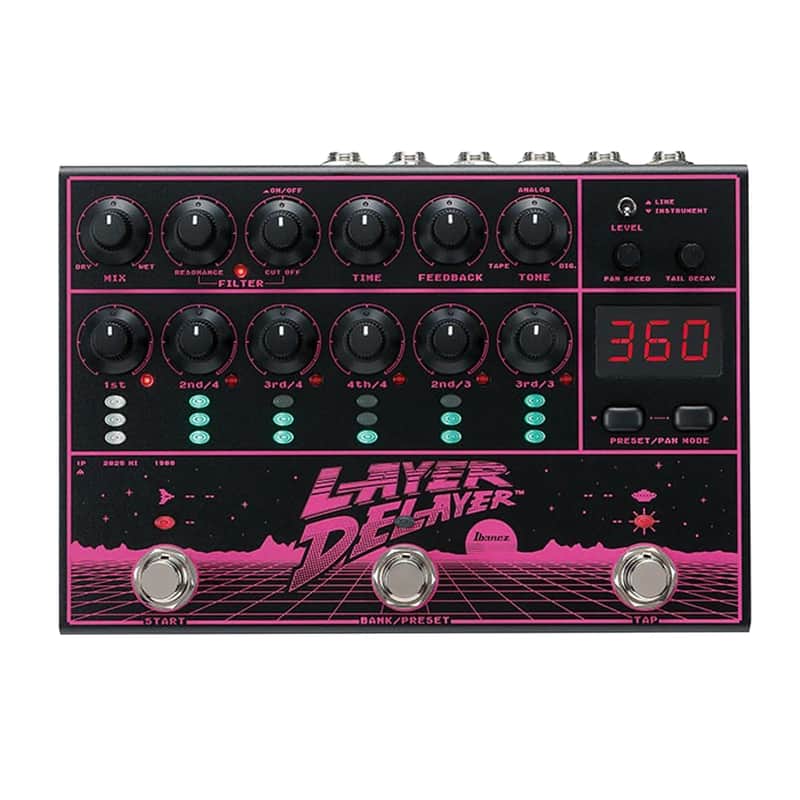

Visually, the LD303 leans into a very intentional retro-futuristic aesthetic with an interface that feels more like vintage rack gear or early digital studio equipment than a traditional stompbox. It’s a pedal clearly aimed at players who want to experiment, build layered textures, and push delay into more creative territory.

Highlights

• Layered delay engine with quarter note, 16th note, and triplet repeats
• Independent volume control for rhythmic delay subdivisions
• Morphing digital, analog, and tape-style delay textures
• Stereo I/O with 8 auto-panning modes and MIDI integration
• FX loop for processing the delay signal independently from the dry signal

Specifications

Controls

• Mix
• Feedback
• Time
• Tone
• Filter
• Tail Decay
• Independent Delay Layer Volume Controls
• Preset / Bank Controls
• Tap Tempo

Electronics

• Multi-Layer Digital Delay Engine
• Digital / Analog / Tape Echo Morphing
• Simulated Low-Pass Ladder Filter
• 20 Factory Presets / 50 Preset Slots
• Buffered Bypass

Connectivity

• Stereo Inputs
• Stereo Outputs
• MIDI In / MIDI Thru
• USB-C Connectivity
• FX Loop for Delay Path
• Expression Pedal Compatibility

Power

• 9V DC Center Negative
• Current Draw: 300mA
• External Power Supply Only

Construction

• Dimensions: 175(W) x 125(D) x 62(H) mm
• Weight: 640g / 1.4 lbs

Miscellaneous

• Model: LD303 Layer Delayer
• Made for Guitar, Bass, Synth, and Studio Applications
