This amplifier is a late-1964 Vox AC30 built at the Westrex factory, identifiable by its unstamped upright chassis, original Albion transformers, and Westrex-specific component sourcing. Westrex production differs from Burnley/JMI manufacture in both materials and assembly practices, making these amplifiers a distinct and well-recognized subset within AC30 history.

Multiple independent dating markers converge on late 1964: August 1964 pot and capacitor codes, the dome-style voltage selector introduced late that year, and the presence of correct Westrex-era components throughout the circuit. The transformers are original Albion units and show no evidence of rewinding or substitution.

The amplifier is configured as a Normal-circuit AC30, not a Top Boost variant. This circuit features a simpler signal path with a single tone control and no treble/bass stack, a configuration favored by many players for its immediacy, midrange authority, and earlier interaction with the power stage. Rectification is via tube rectifier, contributing to the characteristic compression and feel associated with early AC30s.

The vibrato system is the original Vox tube-driven vibrato, a comparatively complex design that uses multiple tubes rather than later opto or bias-shift methods. A 12AU7 is present in the modulation path, consistent with original AC30 vibrato architecture. The system reflects Vox’s mid-1960s engineering emphasis on harmonically rich modulation rather than simple amplitude tremolo.

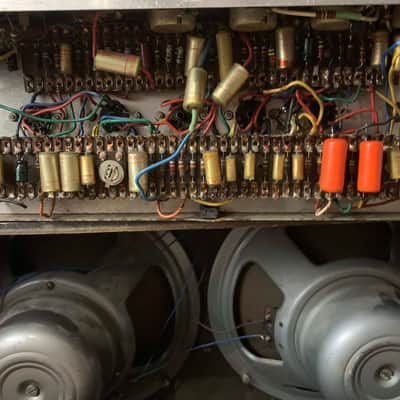

Original WEMA signal capacitors remain in place, preserving the amplifier’s original voicing. Power-tube coupling capacitors have been replaced with value-correct 0.047 µF Orange Drop capacitors, and select electrolytics have been updated with Sprague Atom capacitors—both standard, conservative service choices. Resistors are predominantly original carbon composition types, with only minimal replacement during maintenance.

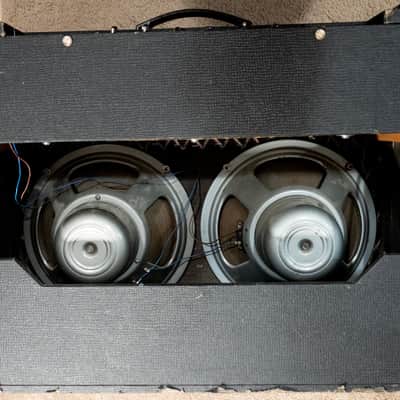

The speaker complement reflects typical mid-1960s service history. One speaker dates to August 1965 and uses frame-mounted solder tabs; the second dates to February 1966 and uses a phenolic terminal board. Both retain original cones, with a professional repair to the earlier speaker that does not materially affect tonal balance.

The cabinet is original but has undergone practical working-life modifications. The chassis shelf has been glued in place, requiring internal access for chassis removal, and the rear panel has been reduced in height, likely to improve ventilation and service access. These changes are common period modifications and do not compromise structural integrity.

Overall, this amplifier represents a well-preserved, lightly serviced Westrex-built AC30, retaining its original transformers, original circuit topology, and a substantial portion of its original passive components. Service work reflects maintenance rather than modification, and all changes are historically appropriate.

Late-1964 Westrex-Built Example

I. Collector Specification SheetIdentification

• Manufacturer: Vox Amplification
• Model: AC30 (Normal circuit)
• Production Period: Late 1964
• Factory: Westrex
• Chassis: Upright steel chassis, unstamped (no serial number; consistent with Westrex production)

Dating Evidence

• Potentiometers: Date codes August 1964
• Capacitors: Multiple original signal capacitors dated August 1964
• Voltage Selector: Dome-shaped selector knob (introduced late 1964)
• Speakers:
• • Speaker A: August 1965
  • Speaker B: February 1966

Dating Conclusion:
Assembly consistent with a late-1964 Westrex build, with period-correct early service-life speaker replacement.

Transformers

• Type: Albion transformers
• Factory Association: Westrex
• Status: Original
• Notes: Albion transformers are a defining characteristic of Westrex-built Vox amplifiers, in contrast to Woden units commonly found in Burnley/JMI production.

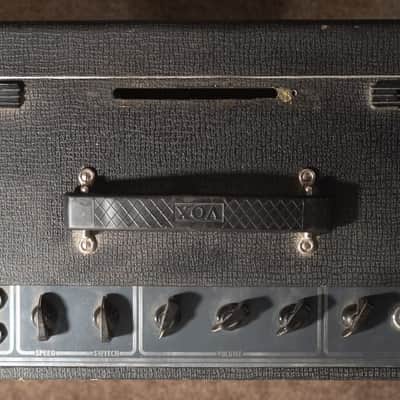

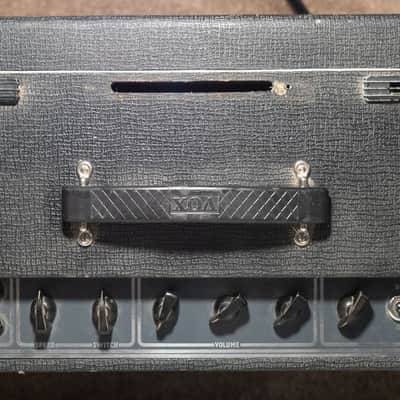

Circuit Configuration

• Circuit Type: AC30 Normal
• Top Boost: No
• Tone Controls: Single tone control (Normal channel)
• Rectification: Tube rectified
• Vibrato/Tremolo: Original Vox tube-driven vibrato circuit

Capacitors

• Original Signal Capacitors: Westrex-era WEMA
• Power Tube Coupling Capacitors: Replaced with 0.047 µF Orange Drop capacitors (value-correct service replacement)
• Electrolytics: Select preamp electrolytics replaced with Sprague Atom capacitors

Resistors

• Type: Carbon composition
• Assessment: Period-correct style consistent with Westrex factory builds
• Service Changes: A small number replaced during maintenance; majority remain original

Speakers

• Configuration: 2×12
• Speaker A:
• • Date: August 1965
  • Connection style: Frame-mounted solder tabs
  • Cone: Original, professionally repaired
• Speaker B:
• • Date: February 1966
  • Connection style: Phenolic terminal board
  • Cone: Original

Assessment: Mixed dates are consistent with normal 1960s Vox service history. The mixed speaker dates reflect normal mid-1960s Vox service history, with period-correct replacements typical of working AC30 amplifiers rather than later owner modification.

Cabinet

• Construction: Original Vox cabinet
• Modifications:
• • Bottom chassis shelf glued in place (chassis removal requires internal bolt access)
  • Rear panel reduced to approximately 75% of original height
• Assessment: Non-original but historically common working-amp modifications

Tube Complement (Current)

• Power Tubes: JJ EL84 (modern replacements)
• Preamp / Modulation:
• • Mullard (vintage)
  • Sovtek (replacement)
  • Pinnacle-branded 12AU7 (vibrato/modulation circuit)
  • JJ preamp tubes in tremolo positions
• Rectifier: Pinnacle tube rectifier

Technical Analysis Attribution

This technical analysis and evaluation were performed by Bill Webb in December 2025.
