Gefell UM92 S Large Diaphragm Tube Condenser Microphone #0227 (Used)

This item has been carefully inspected, tested and serviced by our expert tech team. All vintage, used and open-box items we sell are backed by an industry-leading warranty. Expand your studio with confidence knowing that we have you covered.

The Gefell UM92 S studio tube condenser microphone features Gefell's classic M7 capsule which is renowned for its sound quality. This pressure gradient transducer uses two large diameter gold-plated plastic diaphragms. The capsules are selected for optimum polar response. Three directional characteristics (omni, cardioid and figure 8) can be selected with a pattern selector switch integrated into the power supply. This vacuum tube microphone has a remarkable signal-to-noise ratio and high sensitivity.

The UM92 S has the typical full-bodied sound of tube microphones that are preferred by vocalists and soloists. The direction of maximum sensitivity is perpendicular to the microphone's axis (side addressed). The vacuum tube preamplifier is a well-established design equipped with a pentode working as high μ triode selected for its sonic characteristics.

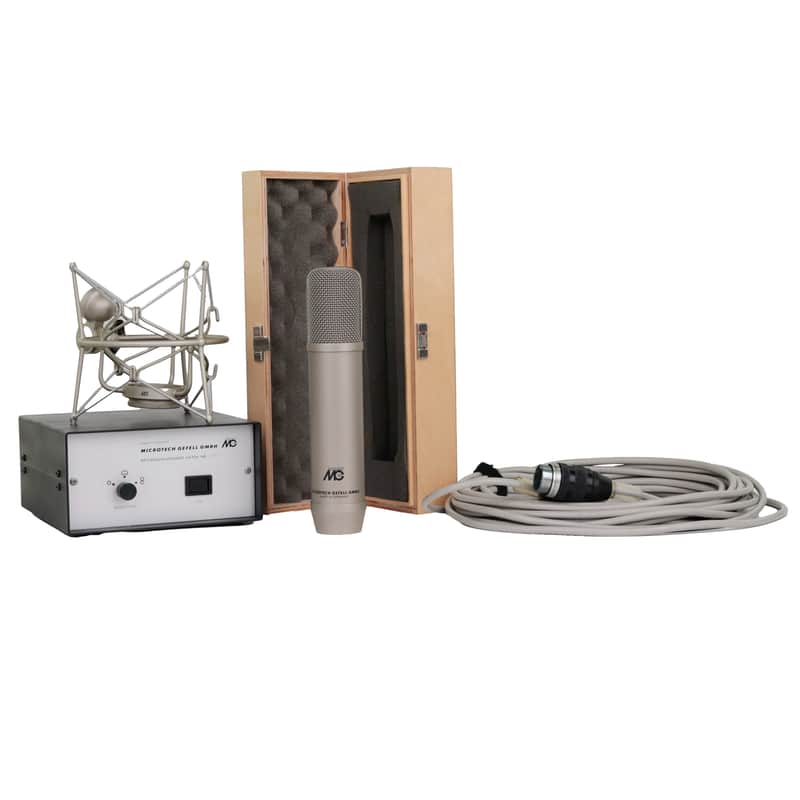

The UN 920.1 power supply provides the polarization voltage for the capsule and the necessary DC voltages for the microphone's preamplifier. For cable lengths over 50 meters it is recommended to have your service provider set the heater voltage of the power supply to 5.8 volts. The UN 920.1 can be powered from AC mains with a primary voltage of 115 or 230 volts / 50 or 60 Hz. The pattern selector switch and the on/off-switch are located on the front panel. The AC mains connector (with choice of voltage), the 7-pin Tuchel connector that powers the microphone and the standard 3-pin XLR connector for audio output are located on the rear panel.

• Tube condenser microphone with legendary M7 capsule
• Omnidirectional, cardioid, and figure-8 polar patterns
• Large diameter gold-plated plastic membrane
• Tube preamplifier with EF86

Vintage King offers an industry-leading level of technical service and warranty support on our used and vintage items. Our used item warranty periods are as follows:

• Analog Outboard Gear – 1 Year
• Microphones – 1 Year (excluding capsules, tubes, and ribbon elements)
• Speakers – 1 Year (excluding drivers)
• Digital Outboard Gear – 30 Days
