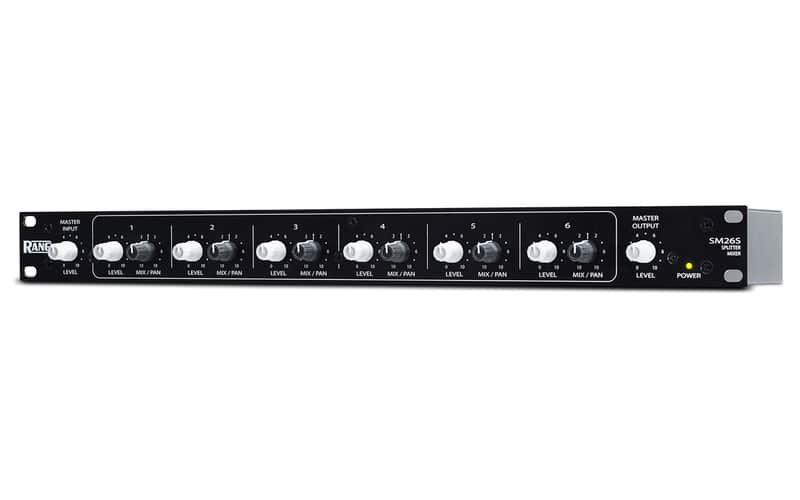

Rane SM26S | B-Stock | Refurbished

Rane Commercial SM26S - Key Features

• Ultra-Versatile 6-Channel Splitter/Mixer — operates simultaneously as a 6-to-2 line mixer, a 1-or-2-input multi-zone splitter, a 6-channel straight-through buffer amplifier, or any combination of all three modes at once
• 6 Balanced Mono Inputs & Outputs — all 1/4" TRS active balanced connections accept both balanced and unbalanced line-level sources with up to +22dBu maximum input level
• 2 Master Stereo Inputs & Outputs — additional Left/Right master inputs bring total inputs to 8; internal header blocks allow Mix Outputs to operate as a fully independent stereo bus for a total of 8 outputs
• Per-Channel Level & Mix/Pan Controls — six individual channel level controls and six Mix/Pan controls for precise routing and level management of each signal to any output destination
• -10dBV / +4dBu Level Shifting — built-in level conversion in both directions for seamless integration between consumer (-10dBV) and professional (+4dBu) equipment without external adapters
• Gain Range up to +12dB — overall gain adjustable from off to +12dB from any input to any output for flexible signal boosting and level matching
• Wide Application Range — suited for live recording splits, zone management in hotels, clubs, and restaurants, studio monitor buses, intercom splitting, paging systems, and custom AV installations
• Compact 1U All-Steel Rackmount — rugged all-steel 1U chassis rated for 35,500 hours MTBF for reliable long-term installed use

Technical Specifications

• Inputs - 6x mono 1/4" TRS balanced + 2x master L/R 1/4" TRS balanced; impedance 20kΩ; max +22dBu
• Outputs - 6x mono 1/4" TRS balanced + 2x master L/R 1/4" TRS balanced; impedance 125Ω; max +26dBu
• Overall Gain Range - Off to +12dB
• Frequency Response - 10Hz–40kHz (+0/-3dB)
• THD+N - 0.008% (+4dBu, 20Hz–20kHz, unity gain)
• IM Distortion (SMPTE) - 0.009% (60Hz/7kHz, 4:1, +4dBu)
• SNR (Mono Outputs) - 120dB (ref +4dBu, 20kHz BW, unity gain)
• SNR (Mix Outputs) - 98dB (ref +4dBu, 20kHz BW, unity gain)
• Crosstalk (L-R Pan) - 60dB @ 1kHz
• Crosstalk (Channel-Channel) - 75dB @ 1kHz
• Level Shifting - -10dBV to +4dBu and +4dBu to -10dBV
• Power - 100–240VAC, 50/60Hz, 7W max
• MTBF - 35,500 hours
• Dimensions - 48.3 x 13.5 x 4.4 cm (19" x 5.3" x 1.75") — 1U rackmount
• Weight - 2.3 kg (5 lbs.)
