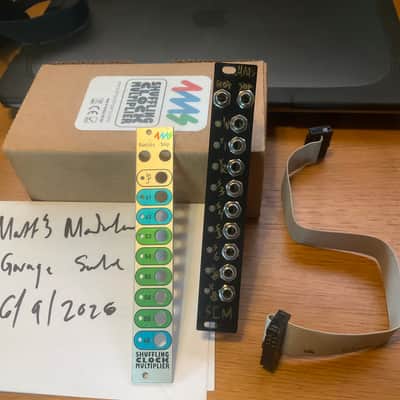

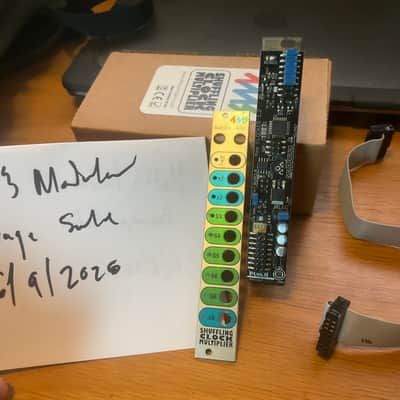

Very good condition used 4ms Shuffling Clock Multiplier Eurorack Synth Module
Includes original box, power cable, original silver faceplate, hand painted black and gold faceplate (installed).
Module will ship via USPS priority mail flat rate w/tracking, estimated ship time of 3 days in continental US.
Description from 4ms website:
Basic Features:
- Multiply-by-1 to Multiply-by-32, on 8 output jacks
- Five Slipped/Shuffled/Skipped clock outputs (S3, S4, S5, S6, S8). Each is based on a multiple of the input clock frequency (x3, x4, x5, x6, and x8, respectively)
- Three steady clock outputs (x1, x2, and x8), which are not effected by Slip/Shuffle/Skip effects
- CV Rotate jack to shift multiply-by amount on all jacks
- CV Slip causes particular beats to land ahead in time
- Connects to the SCM Breakout for controlling more features: Pulse Width, Shuffle pattern, Skip, Re-sync, Mute, and 4x Fast
- ISP header: Connects to in-circuit programmer such as AVR ISP MKII for reprogramming code
- Maximum input frequency 3kHz
Electrical and Mechanical Specifications:
- Module size:
- 4HP Eurorack format module
- 1.39" (35mm) deep
- Power consumption:
- 5VSEL Jumper set to INT:
- 33mA maximum power draw from +12V rail
- 0mA max on the +5V rail
- 4mA maximum power draw on the -12V rail
- 5VSEL Jumper set to EXT:
- 19mA maximum power draw on the +12V rail
- 14mA max on the +5V rail
- 4mA maximum power draw on the -12V rail
