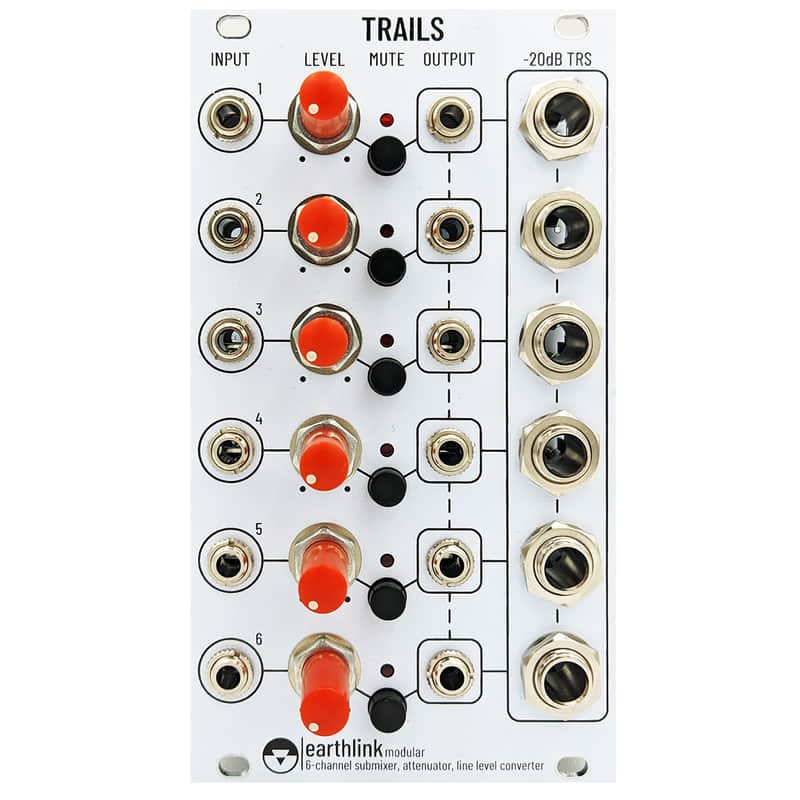

Earthlink Modular Trails Eurorack Mixer & Output Module

A really well-built and nicely thought-out utility that fulfils a few useful roles in any system - mixer, attenuators, muting and line-level outputs. A great 'finishing touch' to a medium-sized system!

TRAILS is a flexible 6-channel utility that combines sub-mixing, active attenuation and studio-ready balanced outputs in one compact module.

• Normalized outputs: instant submixes or independent stems
• Each channel mirrored to –20dB balanced TRS out for direct multitrack
• Audio & CV, log curve and active volume control
• Click-free latching mutes with LEDs

• 6 Channels of Mixing/Sub-Mixing/Attenuation/Line Level Conversion
• Eurorack-level inputs (DC-coupled)
• LEVEL control for each input (active volume control with logarithmic response)
• MUTE button (true clickless action, latching behavior) with LED indicators
• Eurorack-level outputs (DC-coupled)
• Line-level outputs (AC-coupled, 6.35 mm TRS jacks; balanced or unbalanced compatible)
