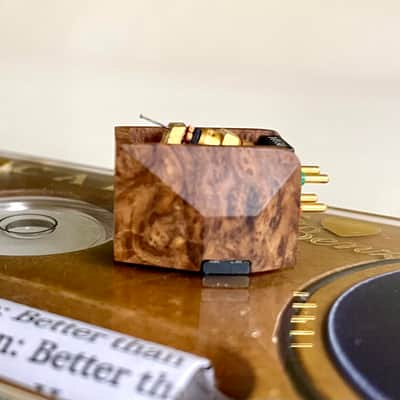

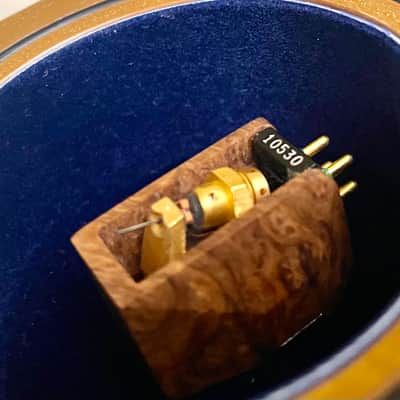

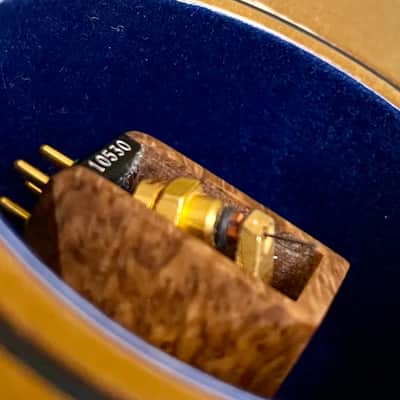

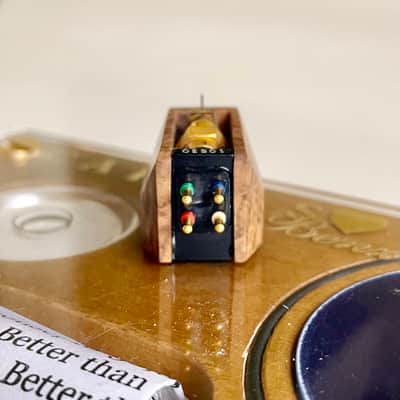

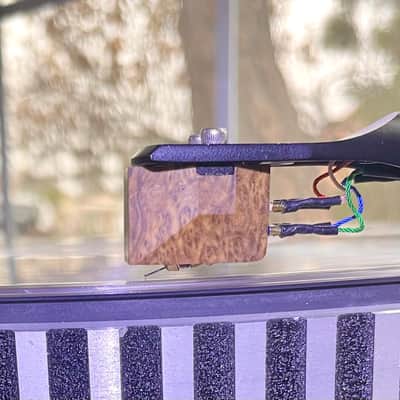

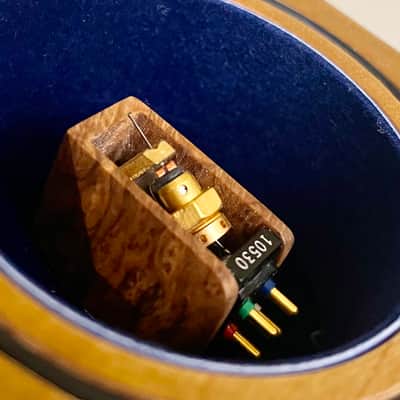

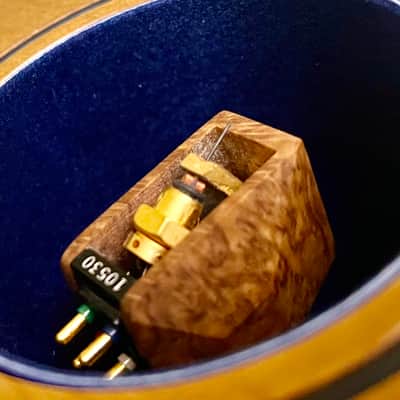

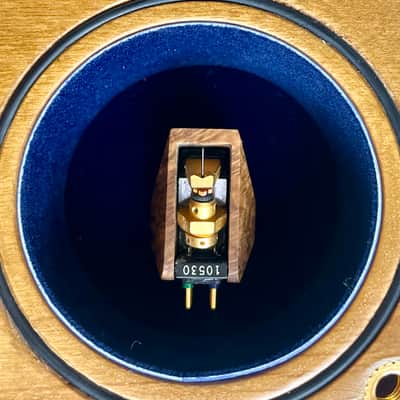

Cardas Myrtle Heart Ruby (Benz Micro Ruby) Cartridge, Myrtlewood, Line-contact Diamond on Boron Cantilever

From my private collection, this cartridge that I have treasured for a long time.

Cardas Myrtle Heart Ruby (Benz Micro Ruby) Low Output MC Moving Coil Cartridge.

This is a like new condition, sounds sweet, musical, works beautifully cartridge, excellent detail, stylus still sharp, cantilever and suspension is also in excellent condition. Used under 100 hours only.

The Cardas Myrtle Heart Moving Coil Phono Cartridge, with it's Copper wound, square Ruby jewel plate, is a highly evolved cartridge that is extremely tough and reliable, as well as being one of the most musically pleasing of all cartridges. Its vented Myrtlewood body is a unique vibration damper for resonance control.

The latest Cardas cartridges are the Myrtle Heart and the Myrtle Silver Heart. They are highly evolved cartridges built on a unique Benz chassis. A well seasoned Myrtle Heart cartridge performs well at a high input impedance of 47 k, if the system is quiet. A lower impedance of 500-1.5 k works if the system tends to hum or the cartridge is not broken-in. The Myrtle Heart has a standard output of 0.3 mV, which is within the capability of most modern high quality pre-amps.

The character of the Cardas Myrtle Heart is lasting musicality. It is well engineered, strong and majestic. It brings the lasting luxury of detailed, life like music.

Specifications:

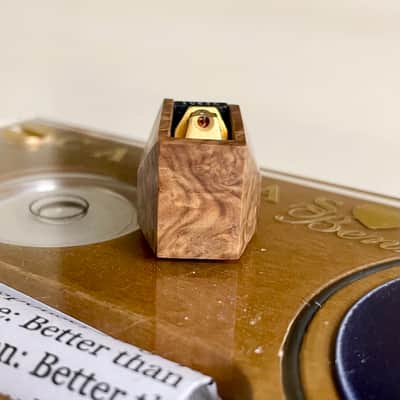

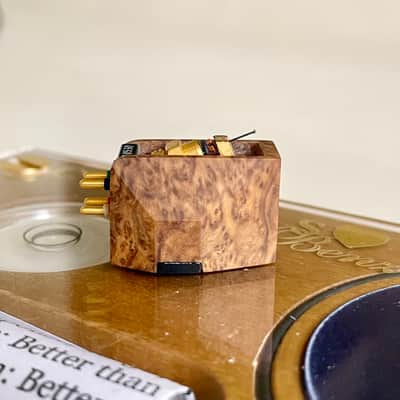

Body: Machined Vented Myrtlewood
Cantilever: Solid Boron rod, 0.28 mm diameter
Stylus: Nude line-contact diamond, mirror polished
Stylus Tip Radius: 5 x 120 µm
Vertical Tracking Angle: 20-22 degrees
Coil: Square Ruby jewel plate, Copper wire
Weight: 9.1 grams
Output Voltage: 0.3 mV @ 3.54 cm/s
Internal Impedance: 45 ohms
Frequency Response: 10-50,000 Hz ± 1 dB
Channel Balance: Better than 0.5 dB
Channel Separation: Better than 35 dB @ 1 kHz
Tracking Ability @ 315 Hz with a tracking force of 2 grams: >80 µm
Dynamic Compliance: 15 µm/mN
Recommended Loading: 500-47,000 ohms
Optimum Tracking Force: 1.8-2.0 grams
Recommended Tone arm Mass: Medium to high
Optimum working temperature: 23 degrees

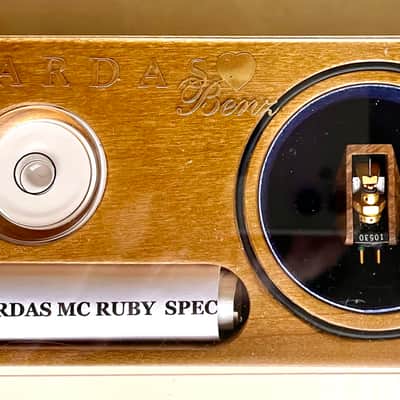

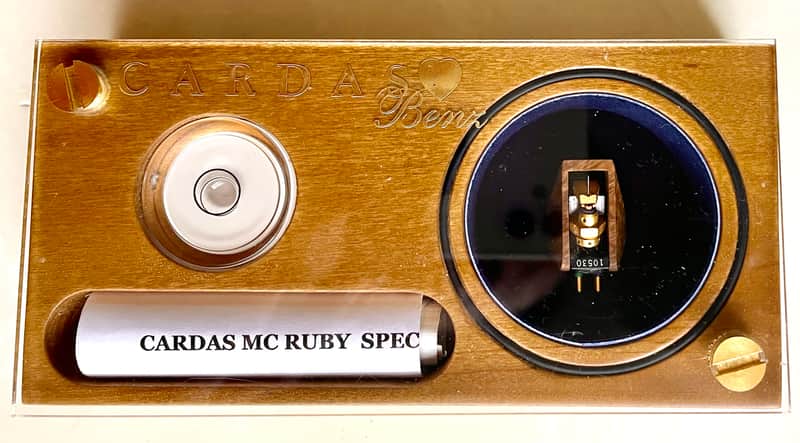

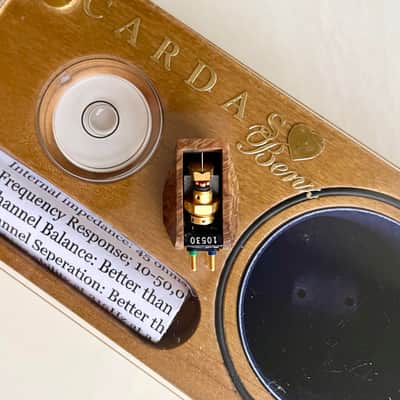

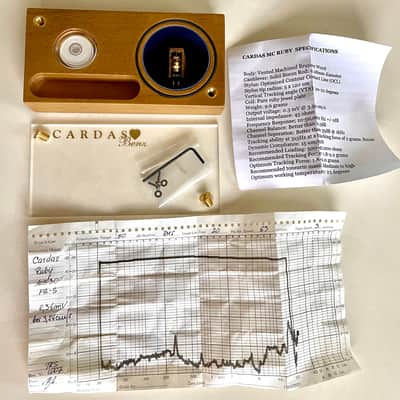

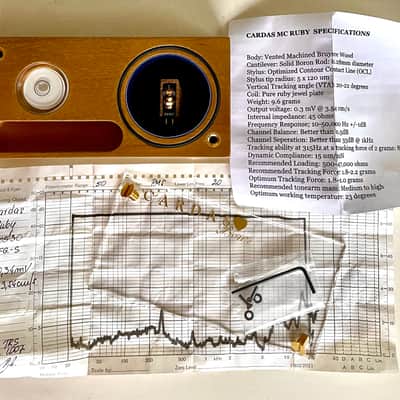

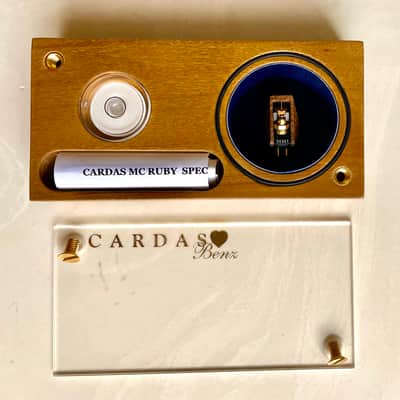

This cartridge comes with all original wood box, Specifications & Measuring paper, Tools and screws.
