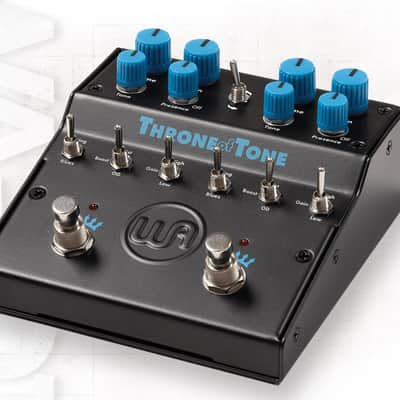

Dual-Sided British-Amp-Inspired Overdrive Pedal

A Tribute To Two Of The Greatest Mid-Gain Amp-Inspired Circuits Of All Time Together In One Pedal

Two Sides, Two Classic Pedals, Legendary Amp Tones
The Throne Of Tone is a tribute to not one, but two extremely sought-after overdrive pedals based on a classic amplifier recording in the late 1960s. Twenty-five years after Blues Breakers With Eric Clapton changed tone chasing forever, a now-classic amp-in-a-box style pedal was launched and set a new standard in transparent amp-like overdrive tones. From that original pedal, a modified, two-sided boutique OD would emerge over a decade later and change the hierarchy of guitar overdrive for good. The original pedals used by artists like John Mayer, Gary Clark Jr, and John Petrucci are known to blend in with any rig, or transform clean tones into completely different tone stacks. Offering these two legendary circuits in one pedal with unprecedented combinations, Throne of Tone delivers all of the tonal bliss of the vintage originals with critical features and controls easily accessible at all times.

Dual Voicings, Unrivaled Combos, Rig-Ready Controls
Throne Of Tone is all about unmatched control and timeless tone. First and foremost, the Throne Of Tone accurately delivers the unique character of both original pedals with boutique gain and drive modifications - on each side! The voicing selector switches between “Blues” (early classics) and “King” (boutique favorite). A gain selector adds the boutique high/low-gain mod, while the drive mode lets each side run as an OD, Distortion, or Boost. Unique to this pedal, each side includes a presence knob for shaping upper mids when tones get muddy. Global voltage doubling increases headroom, while the FX Order Swap instantly changes effect sequence. A top-mounted send/return jack allows inserting pedals or chains between the two sides.

Specs

Product Description & External Specs

• A Tribute To Two Of The Greatest Mid-Gain Amp-Inspired Circuits Of All Time Together In One Pedal
• Dual-Sided British-Inspired Overdrive With Multiple Voicings, Gain Levels, and Drive Modes Plus Added Presence & Voltage Boost Control

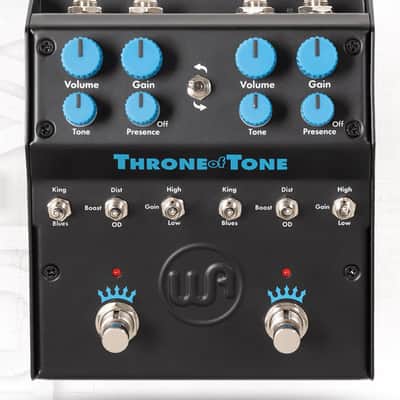

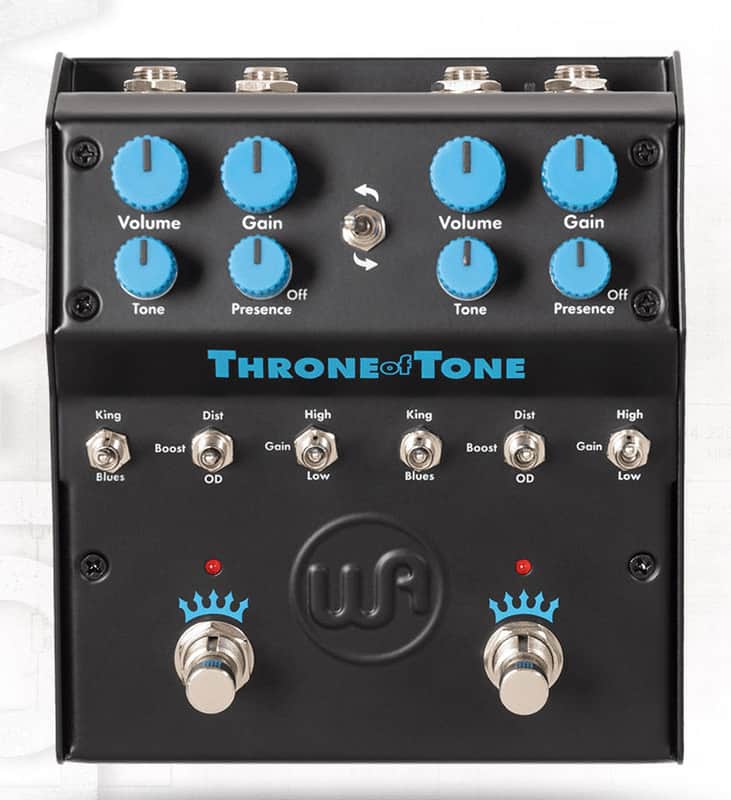

• Controls Per-Side: Volume, Gain, Tone, Presence, Voicing Select, Drive Mode Select, Gain Level Select, On/Off | Global: Voltage Boost, FX Order Swap

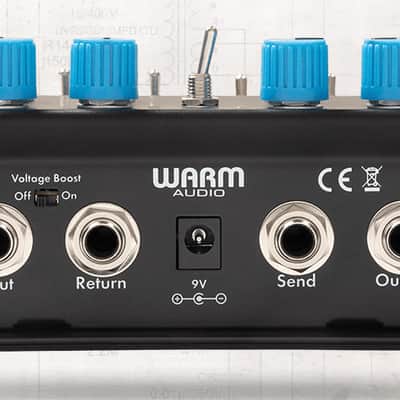

• Jacks: ¼” Mono (Single) Input & Output, Unbalanced Send & Return Jacks, 9V Center-Negative Power
• Dimensions: W: 6.75” |  H: 5” |  D: 2.63” | Weight: 2.4 lbs
• 5-Year Warranty

Components & Internal Specs
Components: (4X) IC’s (Including JRC4580 and TL072 Op-Amps) | (24X) Diodes And A Dual Switch Cap Voltage Doubler Supply.

Power consumption: 24mA Standard Voltage | 43mA Boosted

Input sensitivity: 1M Ω

Output Level (Max): +7.1dBu @9V | +14.6dBu @ 18V
