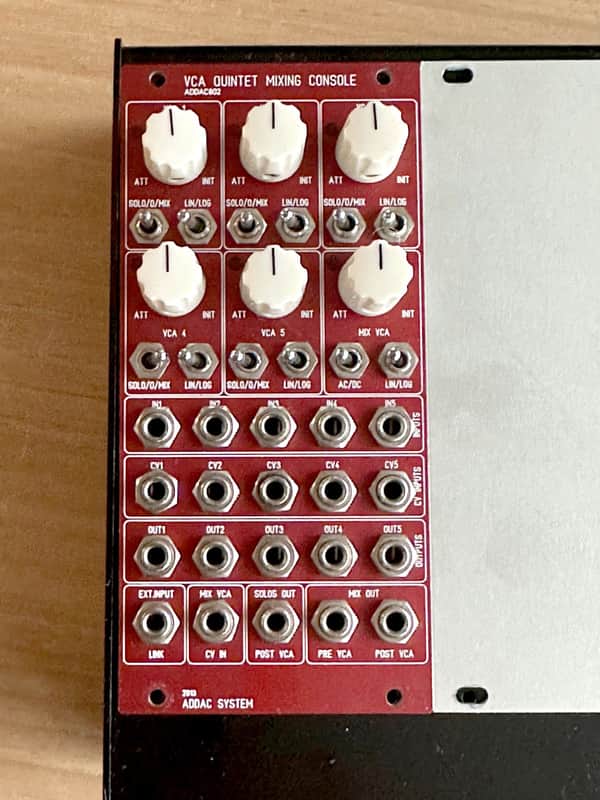

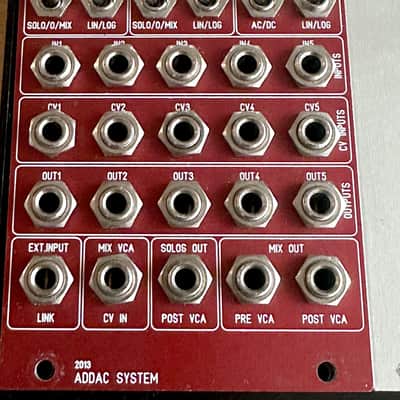

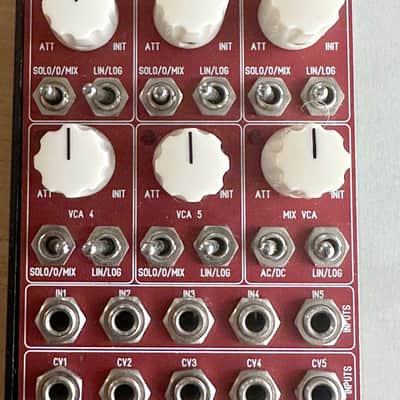

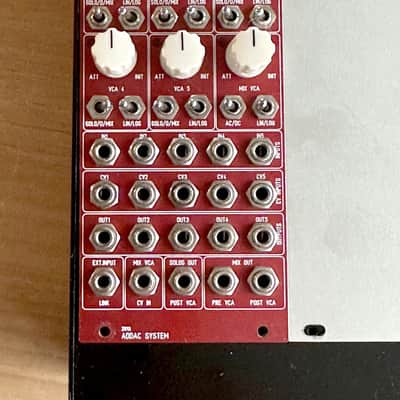

ADDAC 802 VCA Quintet — 6 VCAs - 12HP - Solo/Mix/Bus Routing

5 completely independent analog VCAs

• Every channel gets:

• Audio/CV input
• CV control input
• Manual level control
• Signal LED
• Dedicated individual output

• Per-channel Linear / Logarithmic response switching

• Precise CV duties
• Natural audio fades
• One module handles both jobs properly

• SOLO / OFF / MIX switch on every channel

• Instantly route signals
• No repatching
• No mults
• No utility modules wasted

• Individual channel outputs remain available

• Even while feeding internal buses
• Multiple destinations from one source

• Internal MIX bus sums all active channels

• Dedicated 6th MASTER VCA on final mix

• Entire mix becomes voltage controllable
• Dynamic master fades
• Performance automation
• CV-controlled drops

• PRE-MIX output

• Mix before master VCA

• POST-MIX output

• Mix after master VCA

• External MIX input

• Chain multiple mixers together
• Build large modular console systems

• Dedicated SOLO output

• Cue monitoring
• Isolate voices
• Troubleshoot patches instantly

WHY IT CRUSHES TYPICAL EURORACK MIXERS:

• Most mixers = level knobs only

• ADDAC 802 = VCA bank + mixer + router + submixer + performance controller

• Most VCAs = no routing

• Most mixers = no voltage control

• Most utility mixers = no solo bus

• Most VCA banks = no master VCA architecture

• ADDAC 802 combines all of it in one signal path

REAL PATCH POWER:

• 5-voice drum mixer

• Polyphonic voice controller

• CV-controlled performance mixer

• Submixer inside large systems

• Modulation mixer

• Dynamic effect send hub

• Live performance mute/solo station

SPEC MONSTER:

• 5 channel VCAs

• 1 master VCA

• SOLO bus

• MIX bus

• PRE output

• POST output

• Individual outputs per channel

• External bus expansion input

• 12HP

• 55mm deep

• +190mA / -150mA

BOTTOM LINE:

This is the difference between a "mixer module" and an actual modular signal-management system. Five VCAs. Six total gain stages. Dual-bus architecture. Solo routing. Individual outs. Expandable mixing. Massive functionality per HP.
