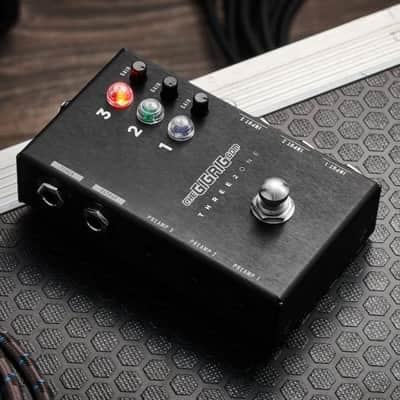

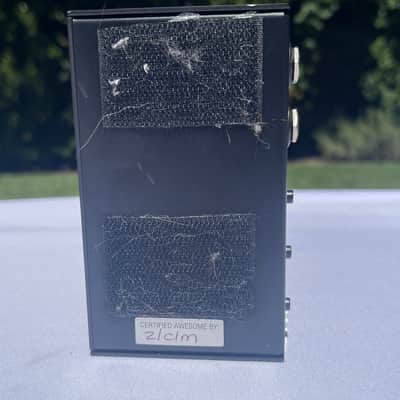

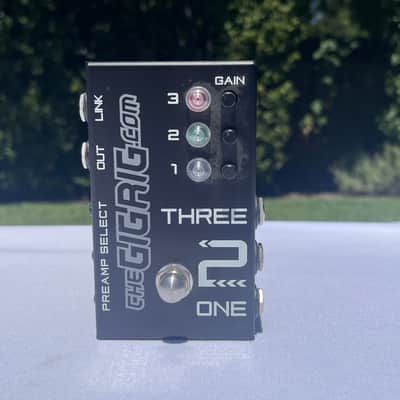

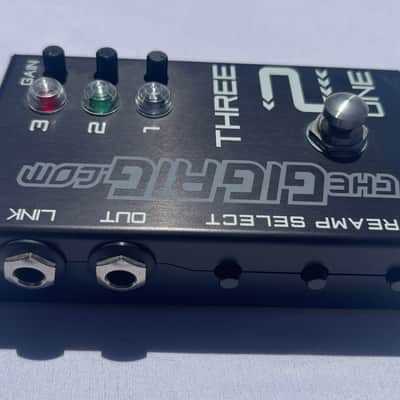

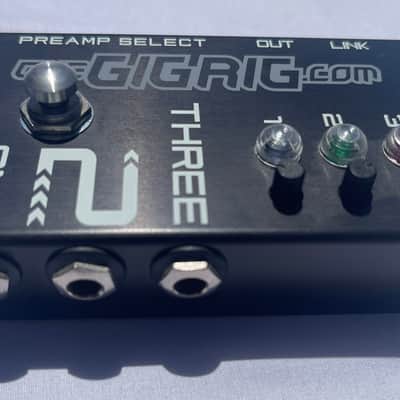

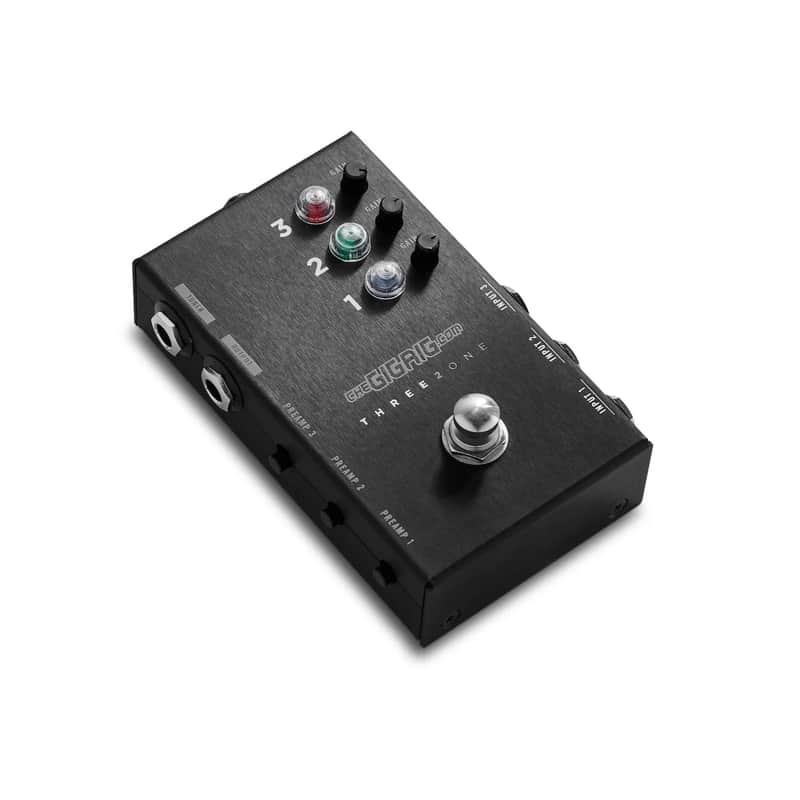

GigRig: THREE2ONE 321 Guitar Switcher

• If you use multiple guitars with different output levels, the GigRig Three2One makes it effortless to balance them.
• The GigRig Three2One guitar selector features three inputs.
• Its built-in preamps ensure consistent levels across all your instruments while automatically routing your active guitar to the Tuner Out for silent, on-stage tuning.
• Stay in control and focus on your performance - no more level mismatches or interruptions.

KEY FEATURES:

• Three inputs: you can now switch easily between 1-3 guitars or even line-level inputs such as keyboards or drum machines
• Use the foot-switch to cycle through inputs
• Choose true bypass or preamp for each instrument.  User-programmable functions with optional signal mute presets and gain boosts up to X4
• Internal voltage ranging from 9V to 18V
• Optokick foot-switch

TECH INFO:

• Dimensions:
• Length: 8cm / 3.14"
• Width: 11.5cm / 4.52"
• Height: 4cm / 1.57"
• Weight: 0.22kg / 0.49lbs
• Power: 9V centre negative. (Optimized for use with the GigRig Generator power supply.)
• Current Draw: 150mA
• Input Impedance: Using the selectable amplifiers, 1 Meg Ohm on each input
• Input Signal Handling: True Bypass. No limit, passive DC connection using relays. Buffered input. 8.6V peak to peak, Buffered with X2 gain: 8.6V peak to peak. With boost option engaged: 4V peak-to-peak.
• Output Impedance: Using the Selectable amplifiers = 100 Ohms
