Bubblesound 6MIX - Mixer / Attenuator - 6x1x2(3x1)
This seller has not set a shipping cost for United Kingdom. Please contact them to ask about shipping.
Our users rate Reverb

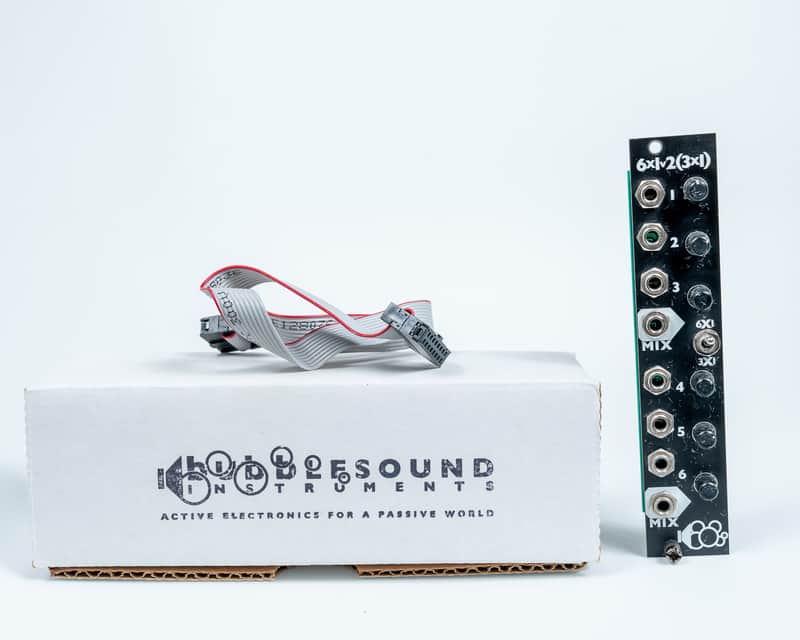

This module is in excellent condition - it was only used lightly in a non-smoking environment, never gigged or travelled. It includes the original box, and a power ribbon cable.
MIX6 is a dual 3 channel mixer, single 6 channel mixer, or single 3 channel stereo mixer, all in one module!
In 1/6 mode all 6 inputs are summed to the lower output. The upper output is still active for channels 1-3 and this is useful for an effects buss. In dual 1/3 mode each set of 3 inputs sums to its own output.
The first 3 inputs are normalled to the second 3 inputs, allowing MIX6 to be used as a 3 channel stereo mixer (where rather than a pan control you have left and right level control). When an input is plugged into channel 1 it is also sent to channel 4 unless something else is plugged into channel 4. This allows 3 inputs to be sent to a pair of outputs for a simple stereo mixer.
The mixer is DC coupled and is perfectly suitable for audio or CV summing.
No Bleed, very low distortion, low power consumption and low profile. The perfect mixer solution for any modular synth.
Specifications:
width - 5HP
depth - 25MM
current draw: +12v 40mA; -12v 65mA
