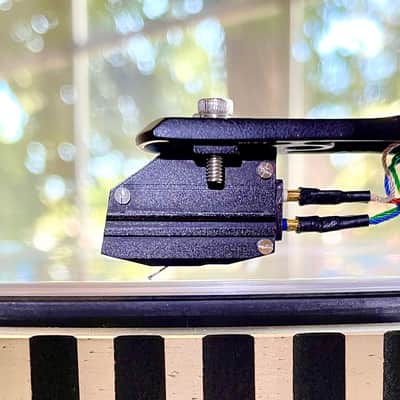

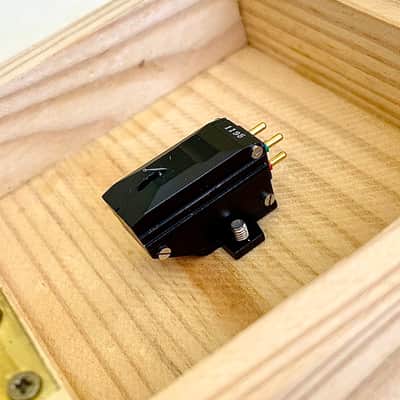

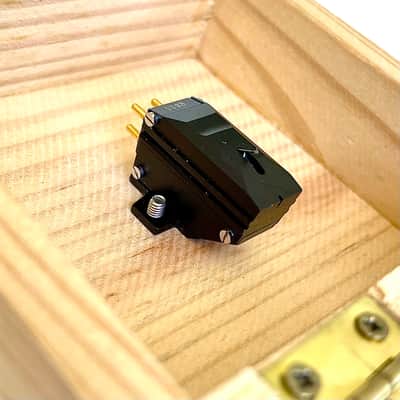

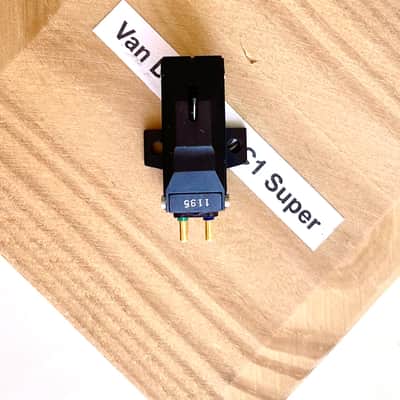

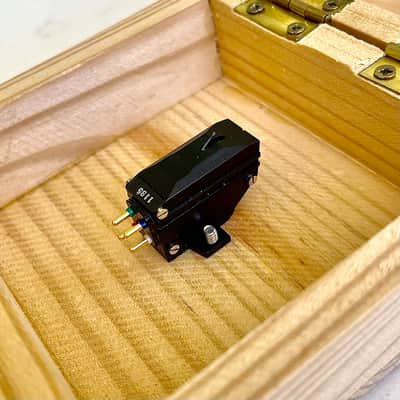

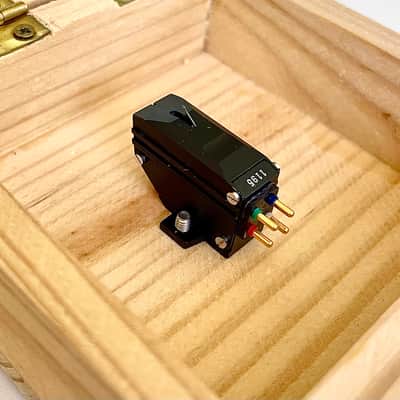

Van Den Hul MC - ONE Super 1.25 mV Medium output Moving Coil Cartridge

From my private collection, this cartridge that I have treasured for a long time.

Van Den Hul MC - ONE Super Special Medium output Moving Coil Cartridge.

This is a like new condition, sounds sweet, musical, works beautifully cartridge, excellent detail, stylus still sharp, cantilever and suspension is also in excellent condition. Used under 100 hours only.

A custom hand built moving coil cartridge; Medium output version of the MC - ONE Special with 1.25 mV/channel and matched crystal copper-wire coils.
The designation “Super” in this cartridge’s name indicates important improvements over its previous version:
The cartridge is equipped with a thicker front pole and an extra small magnet, both further enhancing its resolution capabilities and output voltage.

Specifications

Stylus Shape: VDH - I
Stylus Radii: 3 x 85 Micron
Frequency Range: 5 - 50.000 Hz
Tracking Force: 13.5 - 15.0 mN
Static Compliance: 28 Micron/mN
Tracking Ability at 15mN at 315Hz: 70 - 80 Micron
Output Voltage at 1 kHz at 5.7 cm/s eff.: 1.25 mV RMS
Channel Unbalance: < 0.5 dB
Channel Separation at 1kHz / 10kHz: > 35 / > 30 dB
Equivalent Stylus Tip Mass: 0.35 Milligram
System Weight: 8.2 Gram
Vertical Tracking Angle : 22 Degrees
Optimum Load Capacitance: see (*2)
Recommended Load Impedance: 500 Ohm
Recommended Eff Tone arm Mass: 8 - 12 Gram
Moving Coil Resistance per channel: 41 Ohm

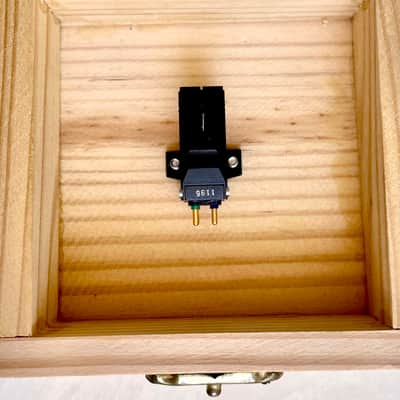

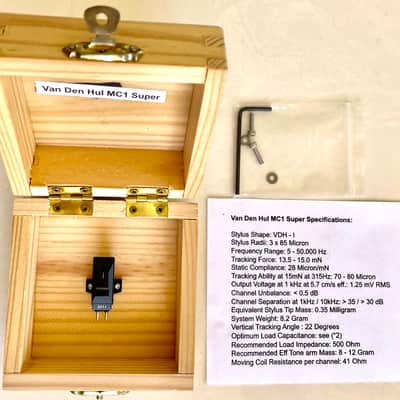

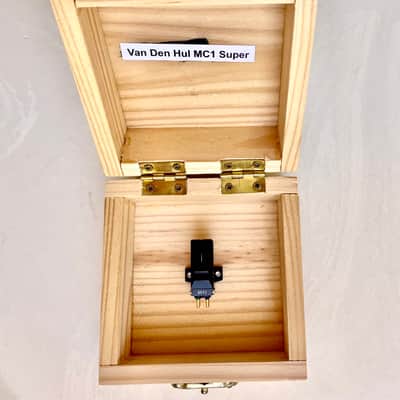

This cartridge comes with wood box, Specifications paper, tool and screws.

I have sold a lot of cartridges and got a lot of good feedback, please check them out.

We guarantee that we will not sell cartridges that are not perfect, if you find that it is not suitable for you after receiving it. We have a full refund policy and you can return it, if you are not satisfied.

And please take a look my other items.

Thanks!

Wayne
Wayne's Audio
