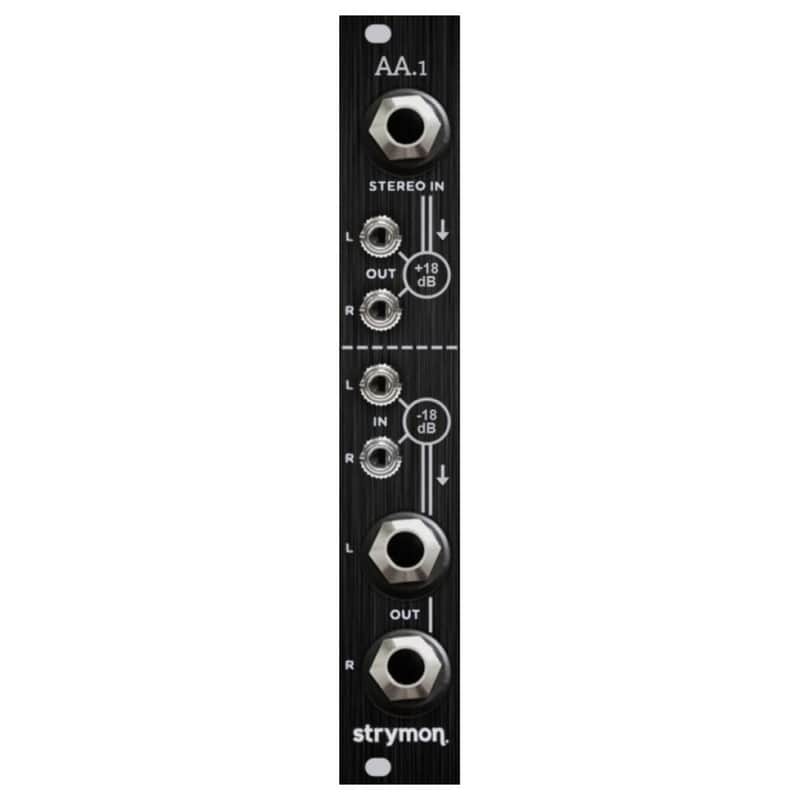

The Strymon AA1 Level Shifter is a highly compact Eurorack module designed to amplify instrument signals to the modular level. The AA1 Level Shifter is ideal for processing electric-stringed instruments for use with other modules. The module features a 1/4-inch input for use with electric guitar and basses, amplifying the signal by +18dB. The module features two 1/8-inch connectors for outputs. Two modular signals can also be fed to the module via the 1/8-inch connectors, attenuated by -18dB for added flexibility.
The AA1 Level Shifter is the perfect module for amplifying electric and bass guitar signals. The simple yet effective design amplifies guitar and bass signals to the modular level for use with external modules. It is the perfect solution for processing guitars and basses with Eurorack-based filters, effects and even wave shapers. This gives you the ability to optimise your sound design capabilities, giving you a wide range of options when it comes to your electric and bass guitars.
ConnectivityThe ergonomic design features a 1/4-inch socket for connecting your instruments, amplifying the signal by +18dB for use with external modular gear. The processed signal is outputted via the dual 1/8-inch connectors. The flexible design also allows you to use the module the other way around. This can be done by feeding two modular signals to the module via the 1/8-inch connectors, attenuated by -18dB and outputted via the dual 1/4-inch sockets. The compact design is only 4HP wide, measuring at 3U, it is also compatible with skiff cases for added flexibility.
Features- Amplifies electric guitar/bass signals to modular level
- Ideal for processing electric string instruments for use with Eurorack modules
- Results can be attenuated to guitar level and in stereo if required
- Compact design
- Simple yet effective
- Gain: +18dB
- Max Input Level (before soft clipping): 2.25Vpp
- Max Output: 18Vpp
- Input Impedance: 1 MΩ
- Output Impedance: 1 kΩ
- Frequency Response:20Hz – 20kHz, +/- 1dB
- Gain: -18dB
- Max Input Level (Nominal): 20Vpp
- Max Output Level (Nominal): 2.5Vpp
- Input Impedance: 8 kΩ
- Output Impedance: 880 Ω
- Frequency Response: 20Hz – 20kHz, +/- 1dB
- +12V Rail: 10mA max
- -12V Rail: 10mA max
- +5V Rail: 0mA
- Eurorack Size: 4HP
- Rack Depth: 1.5-inch (38mm)
