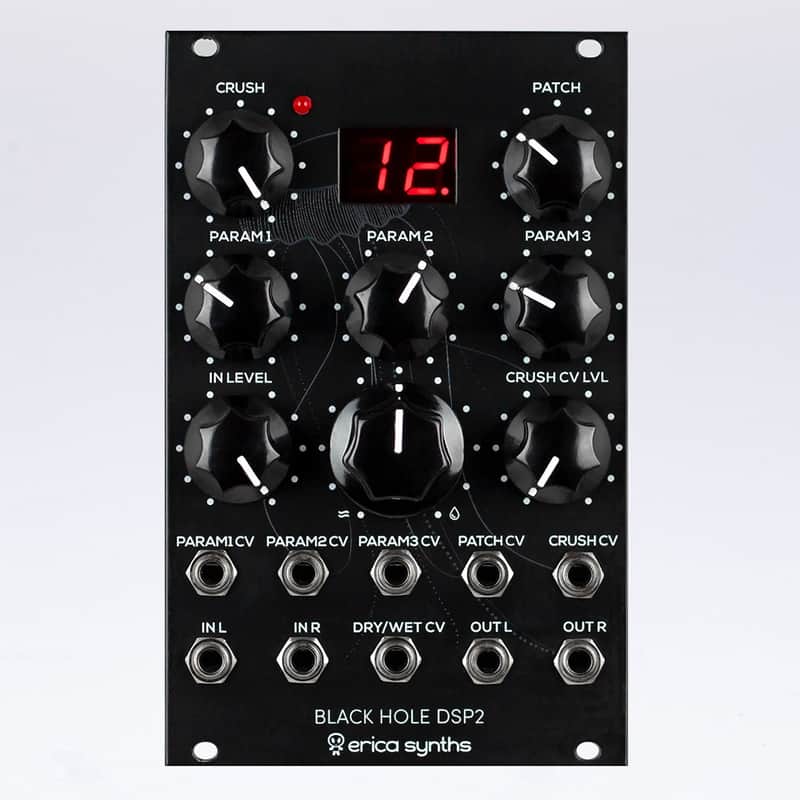

Erica Synths Black Hole DSP 2, an updated version of Black Hole DSP features 24 custom effects, designed in close co-operation of Erica Synths team rider KODEK and creator of SpinCAD software Gary Worsham. Each effect has 3 manually and CV controllable parameters, manual and CV control over sampling frequency for spanning from 48kHz to really Lo-Fi crunchy sound and full analogue dry/wet control. All effect parameter settings can be saved to the memory and instantly recalled with the effect, which makes Black Hole DSP II ideal for live performances.

Features

24 custom FV-1 effects
Stereo INs and OUTs
3 manually and CV controllable parameters
CV controlled effect selection
Manually and CV controllable DSP CPU clock rate
Effect settings memory
Full analogue Dry/Wet control
Clipping LED

Input signal amplitude -5…+5V (or 0…+10V)
Output signal amplitude -10V - +10V
Max sampling rate 48kHz
CV level (full span) -5V - +5V
Power consumption +70mA, -56mA
Module width 16HP
Module depth 35mm
