The Fulltone OCD V2 (Obsessive Compulsive Drive) is one of the most famous and bestselling analog overdrive/distortion pedals of all time. While versions 1.0 through 1.8 featured minor component tweaks, Version 2 (V2) represents the first ground-up electrical redesign of the circuit to drastically improve headroom, tracking, and signal integrity.

Key Upgrades in Version 2

• Class-A JFET Input Stage: Fulltone raised the input impedance from 330K to 1 Mega Ohm using a discrete 2N5457 JFET section. This stops the pedal from choking your guitar signal, increasing dynamic range and giving single-coils and humbuckers a punchier, clearer response.
• Redesigned Output Buffer: V2 includes an integrated output buffer. This ensures your tone stays completely consistent no matter where you place the pedal in a complex signal chain, preventing longer cable runs or downstream pedals from sucking away your high end.
• Switchable "Enhanced Bypass": An internal slide switch lets you choose between standard True Bypass and Enhanced Bypass (EB). In EB mode, the pedal configures its internal FETs into a Class-A preamp circuit when turned off. Inspired by the preamp of an old EP-3 Echoplex, it restores lost dynamics and keeps your overall guitar signal sounding "alive" and fresh without altering your EQ.

Core Features & Controls

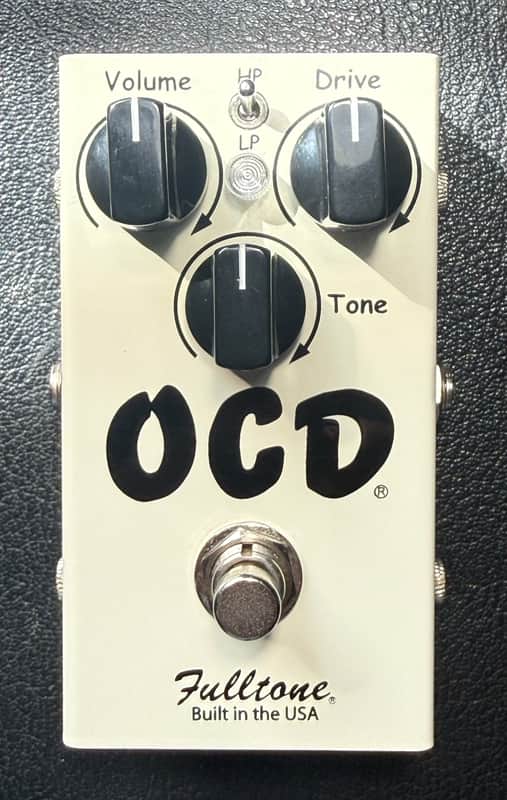

• HP/LP Toggle Switch: This two-way voice switch radically alters the gain structure:
• • High Peak (HP): Cuts deep bass, boosts upper mid-frequencies, and increases volume. It delivers an aggressive, British-voiced distortion reminiscent of a cranked Marshall amplifier.
  • Low Peak (LP): Retains a flat EQ with excellent bottom-end response. It functions beautifully as a clean boost or a transparent, woodsy overdrive that preserves your original guitar and amp character.

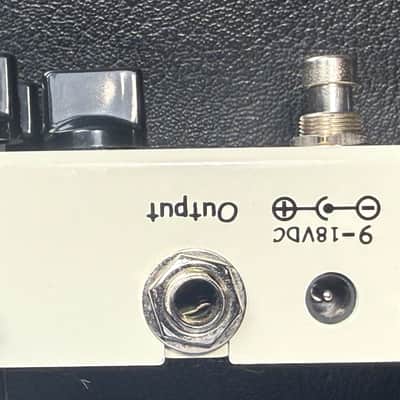

• 9V to 18V Operation: While it runs on a standard 9V battery or power supply, the OCD V2 can safely accept up to 18 Volts DC. Running it at 18V supplies massive extra headroom, tighter bass, and clearer note separation—making it highly effective for stacking with other drive pedals.
