StageBug SB-2

Compact Passive DI

Passive Direct Box

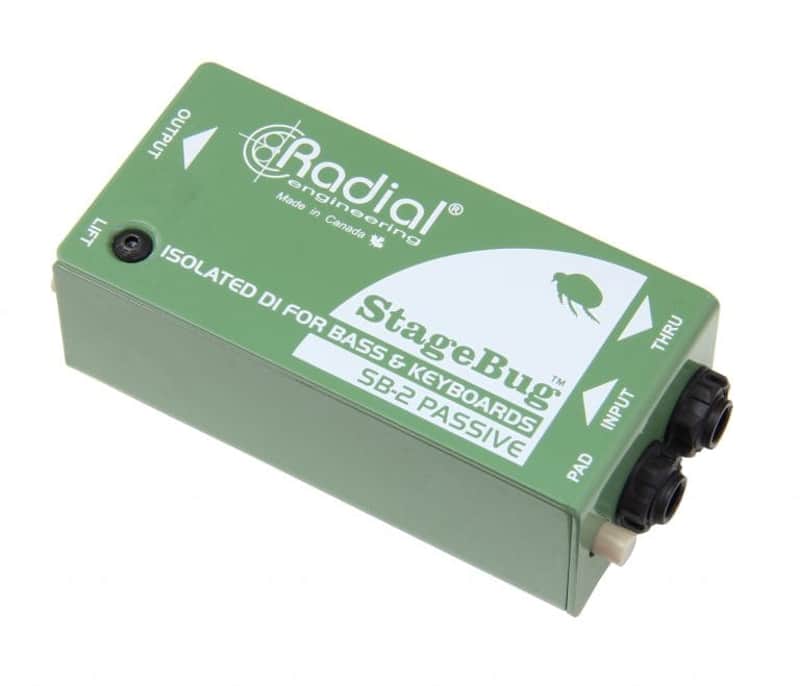

The StageBug SB-2 is a compact passive direct box designed for active basses and keyboards. Its compact size allows it to fit inside an instrument case and it includes a stereo to mono mix function to help save mixer channels.

Features

Passive DI for bass acoustic and keyboard

Ultra compact design

Plug and play operation

Transformer isolation eliminates noise

Small Size And Big Performance

The SB-2 features a 1/4 inch input and thru output for feeding an on stage amplifier. A custom Eclipse ET-DB3 transformer performs impedance matching and signal balancing.

A -15 dB pad can be engaged for high output instruments such as active basses and digital pianos.

The stereo to mono merge function allows stereo keyboards and computers to be connected without changing source settings while reducing the number of mixer channels required.

The XLR output follows the AES standard with pin 2 hot.

The Eclipse ET-DB3 transformer handles high signal levels while providing natural compression and transformer isolation to reduce hum and buzz caused by ground loops.

A ground lift switch disconnects pin 1 on the XLR output for additional noise reduction.

Applications

Using The SB-2 With Acoustic Guitar

Connect an acoustic guitar to the SB-2 to smooth signal peaks and provide a warmer tone. Its compact design is well suited for travel and live performance.

Using The SB-2 With Electric Bass

Connect the bass to the input send the thru output to an amplifier and the XLR output to the PA system. Transformer isolation helps eliminate hum and buzz caused by ground loops.

Using The SB-2 With A Keyboard

The SB-2 can connect a keyboard directly to a PA system. The input and thru jacks automatically merge stereo signals to mono while balancing the signal for cable runs up to 100 meters 300 feet with low noise.
