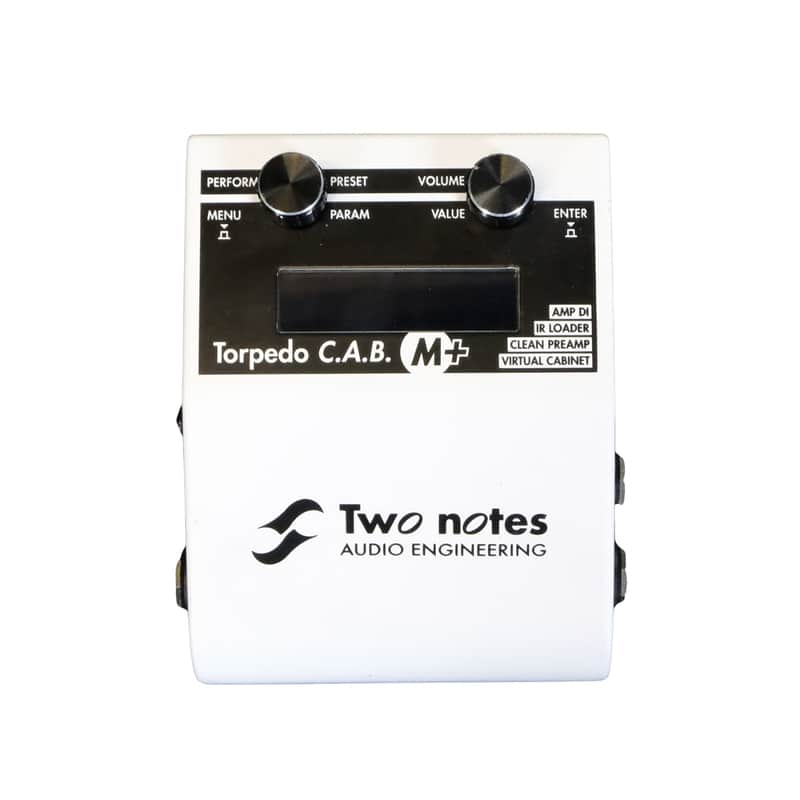

Two Notes Torpedo C.A.B. M+

The Two Notes Torpedo C.A.B. M+ offers a pristine, studio-grade tone tailored for players looking to transition seamlessly from a traditional amplifier to a direct-to-PA or recording setup. Featuring an integrated clean preamp alongside 32 premium DynIR Virtual Cabinets, this pedal gives you an organic playing experience that reacts beautifully to your individual touch. With selectable virtual tube configurations, including four legendary power tube types, it captures the raw, dynamic presence of an authentic amplifier pushing air without the need to haul heavy speaker enclosures.

Engineered for the demands of the road, the pedal boasts a highly compact, roadworthy metal chassis designed to easily fit onto any pedalboard layout. Inside, its digital architecture operates with professional 24-bit/96kHz audio processing and an ultra-low latency of just 2.2ms, keeping your signal path incredibly clear, transparent, and direct. The front panel is centered around a crisp, easy-to-read OLED screen that allows for seamless navigation through your virtual rigs, making adjustments simple and efficient during a performance.

This comprehensive pedal is based on an advanced digital circuit running Two Notes' critically acclaimed DynIR processing engine. It serves as a fully independent amp-free rig, starting with an internal clean preamp inspired by a legendary '74 Silverface B'man amplifier. This circuit design can easily be placed at the very end of your pedalboard chain, run directly between an amplifier head and a separate load box, or used as a standalone recording studio hub for guitar and bass.

Highlights

• Iconic Preamp Architecture: Built with an onboard clean preamp circuit inspired by a classic '74 Silverface B'man amplifier for highly responsive, pedal-friendly headroom.
• Next-Generation Cabinet Modeling: Loaded with 32 premium DynIR Virtual Cabinets, 8 studio microphones, and 12 room emulations for ultimate tonal versatility.
• Customizable Power Amp Modeling: Features four selectable tube types (EL34, EL84, 6L6, KT88) and Class A or Class A/B circuit emulations to customize your power section's sag and warmth.
• Ultra-Low Latency Engine: Delivers crisp 24-bit/96kHz AD/DA conversion and an ultra-low 2.2ms latency to keep your playing feel direct and instantaneous.
• Roadworthy and Compact Enclosure: Housed in a heavy-duty, highly portable metal chassis equipped with a clear graphical OLED screen for seamless parameter tracking.

Specifications

• Pedal Type: Digital Cabinet Simulator / Preamp / IR Loader
• Internal Processing: 32-bit floating-point
• Resolution: 24-bit / 96kHz AD/DA
• Preamp Model: '74 Silverface B'man
• Power Amp Models: EL84, EL34, 6L6, KT88 (Class A and Class A/B)
• Latency: 2.2 ms (Line Input to Line Output)
• Inputs: 1 x 1/4" TRS (Amp / Inst / Line Switchable), 1 x 1/8" TRS (Aux In)
• Outputs: 1 x 1/4" TS (Speaker Out), 1 x 1/4" TRS (Line Out), 1 x XLR (DI Out), 1 x 1/8" TRS (Headphones)
• USB Connectivity: Micro-USB (USB 2.0 Micro-B)
• Storage: 256MB Micro-SD card included (Supports up to 32GB)
• Power Requirements: 12V DC, 200mA (Center Negative)

Condition: Excellent. Light wear typical of a gently used Pedal. Light surface scratches, scuffs, etc.

This item includes everything pictured.

Please feel free to reach out to our knowledgeable sales staff with any additional questions!
