Yamaha CS-50 Polyphonic Synthesizer

Yamaha CS-50 – Features and Capabilities

The Yamaha CS-50 is a classic analog polyphonic synthesizer renowned for its rich sound, expressive performance controls, and versatile sound design capabilities. Combining analog circuitry with an intuitive control layout, the CS-50 offers a highly musical and inspiring playing experience for both studio production and live performance.

Analog Sound Engine

The CS-50 features a fully analog synthesis architecture with four-voice polyphony, allowing musicians to perform chords, layered textures, and expressive harmonic passages. Each voice is equipped with a voltage-controlled oscillator (VCO) capable of generating multiple waveforms, including sawtooth, square, pulse, and sine waves, providing a broad sonic palette ranging from warm pads and basses to leads and experimental textures.

Advanced Filtering and Tone Shaping

A resonant low-pass filter and dedicated high-pass filter allow detailed control over the harmonic content of the sound. These filters can be shaped dynamically through dedicated envelope generators, enabling everything from smooth evolving tones to punchy and percussive sounds.

Expressive Performance Controls

One of the defining characteristics of the CS-50 is its highly expressive keyboard performance system. The 49-key keyboard features aftertouch sensitivity, allowing performers to introduce vibrato, filter modulation, volume changes, and other expressive effects through finger pressure after a note is played.

The integrated ribbon controller provides intuitive real-time pitch bends and modulation effects, enabling fluid and expressive performances that respond naturally to the player’s touch.

Flexible Modulation System

The onboard low-frequency oscillator (LFO) offers multiple waveform options and can be routed to various destinations, including pitch, filter, and amplitude. This allows users to create vibrato, tremolo, filter sweeps, rhythmic modulation effects, and evolving textures.

Separate envelope generators for amplitude and filter control provide additional depth and precision when designing sounds.

Preset and Custom Sound Creation

The CS-50 includes a selection of preset sounds that provide immediate access to a variety of musical tones. In addition, its front-panel controls encourage hands-on sound design, allowing musicians to create unique custom patches through direct interaction with the synthesis engine.

Performance-Oriented Design

Built with professional musicians in mind, the CS-50 offers responsive controls, a clear panel layout, and reliable construction. Features such as portamento, touch-sensitive performance controls, pedal connectivity, and real-time modulation options make it well suited for expressive live performance and creative studio work.

Applications

The Yamaha CS-50 excels in a wide range of musical applications, including:

• Electronic music production

• Film and television scoring

• Ambient and atmospheric sound design

• Progressive and experimental music

• Live keyboard performance

• Studio recording and arrangement

Summary

The Yamaha CS-50 combines warm analog synthesis, expressive keyboard control, flexible modulation, and intuitive sound shaping into a highly musical instrument. Its ability to produce lush textures, dynamic leads, evolving pads, and distinctive analog timbres continues to make it a respected synthesizer among musicians, producers, and collectors worldwide.

• • Polyphony:
  • • 4-Voice Polyphony:Allows for playing four notes simultaneously, suitable for complex chords and layered sounds.
  • Oscillators:
  • • Single VCO per Voice:Provides sawtooth, square, pulse, and sine waveforms.
    • Oscillator Sync: Capable of syncing oscillators for richer harmonic content.
  • Filter:
  • • Low-Pass Filter:12dB/octave resonant filter with cutoff and resonance controls.
    • High-Pass Filter: Non-resonant high-pass filter for additional sound shaping.
  • Modulation:
  • • LFO (Low-Frequency Oscillator): For modulation of pitch, filter, and amplitude with adjustable rate.
    • Envelope Generators:Two ADSR (Attack, Decay, Sustain, Release) envelopes for detailed control over amplitude and filter modulation.
  • Performance Controls:
  • • Keyboard: 49-key, full-size, semi-weighted keyboard with aftertouch for expressive playing.
    • Ribbon Controller: For pitch bending and modulation, adding a unique expressive capability.
    • Portamento: Glide control for smooth transitions between notes.
    • Touch Response: Initial and aftertouch response for dynamic control of filter, amplitude, and modulation.
  • Preset and User Sounds:
  • • Preset Patches: Includes a selection of preset sounds for quick access to classic tones.
    • User Programmable:Allows for creating and saving custom sounds.
  • Connectivity:

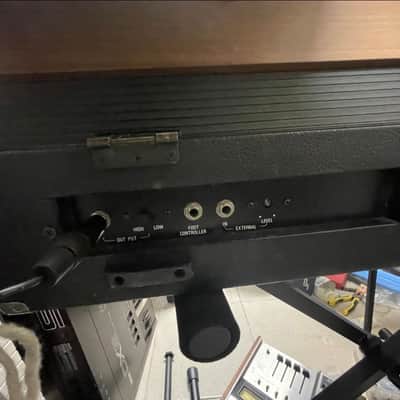

  • • Audio Output: Standard 1/4″ output for connection to amplifiers, mixers, or recording equipment.
    • Pedal Inputs: Inputs for sustain and volume pedals to enhance live performance capabilities.
  • Rich and Warm Analog Tone:Known for its lush, warm, and expressive sound.
  • Versatile Sound Design:Capable of producing a wide range of sounds, from basses and leads to pads and effects.
  • Expressive Playability:Aftertouch and ribbon controller provide unique expressive options.
  • Genres: Suitable for electronic music, rock, pop, ambient, and experimental music.
  • Usage: Ideal for live performances, studio recordings, and sound design due to its rich sound and versatile features.
  • Japan: The Yamaha CS-50 was designed and manufactured in Japan, known for its high-quality build and engineering excellence.
  • Expressive Controls: Ribbon controller and aftertouch provide unique expressive capabilities not found in many other synthesizers of its time.
  • Robust Construction: Built to withstand the rigors of live performance and frequent use.
  • Classic Design: Vintage aesthetic and intuitive interface make it a timeless instrument.
  • Vangelis (Electronic/Ambient): The legendary composer used the CS-50 for its expressive capabilities and rich sound.
  • Eddie Jobson (Progressive Rock): The British keyboardist and violinist has utilized the CS-50 in his performances and recordings.
  • John Carpenter (Film Score):The renowned film director and composer has used the CS-50 in his iconic film scores.

100V Version

Please check the power requirements for this device and the specifications of your power supply . If you need to use this item in a 117-240 V environment , you'll need a transformer .

More real preset sound and sound test on my DB Studio TV channel
