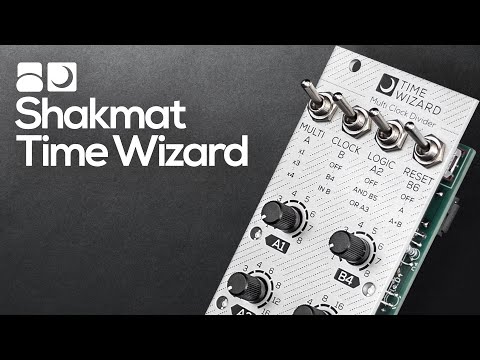

Shakmat Time Wizard - Clock Sorcery!

Such a fun, immediate clock dividing module. Complement Pam's menu diving with some on-the-fly triggering goodness! From Shakmat themselves:

Clock Sorcery

Casting spells on every boring clock signals, The Time Wizard got a bag full of arcane time-warping tricks. All his magical feats are based on 6 dividers with selectable division factors and 4 switches providing 81 routing variations.

This module's occult powers have been harnessed to easily clock and reset other sequencers with odd time signatures, provide weird clock division/multiplication ratios, and create complex poly-rhythms.

Features

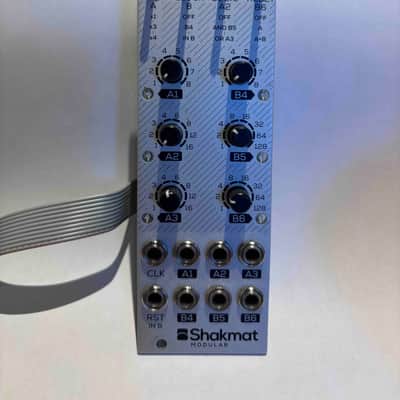

• Sextuple clock divider divided in two sections A and B
• Dedicated potentiometer acting on the division factor for each divider
• Clock multiplying and weird div / mult ratio abilities for the first section, first section incoming clock can be multiplied by 3 or 4, allowing to get easily triplets from a 16th clock or mult / div association as x4 / 7
• Independant clocking or divider association abilities for the second section, so B5 and B6 can get their clock in internaly from B4. For example, associating B4 = /7 and B5 = /16 provide a hit at each clock begining of 4 bars with a 7/4 time signature
• Auto-reset available for the first section or the whole module, the autoreset is provided by B6
• Additional logic functions for divider A2:A2 output can provide the following functions: A2 AND B5 or A2 OR A3

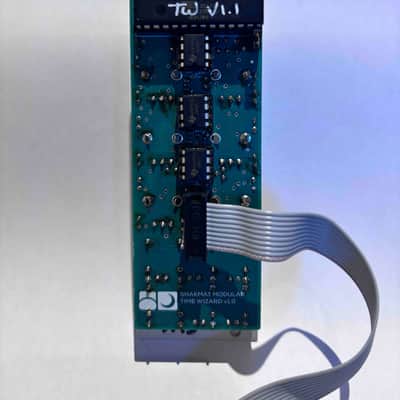

• Jumper on the back for Trigger or Gate selection for B5 and B6
• User replaceable firmware chip
• Skiff friendly

Specifications

• Width: 8HP
• Depth: 22mm
• +12v: 20mA
