Telecaster Custom Build 70’s Jimmy Page Bret Mason Jack White Gilmore Wiring wHSC

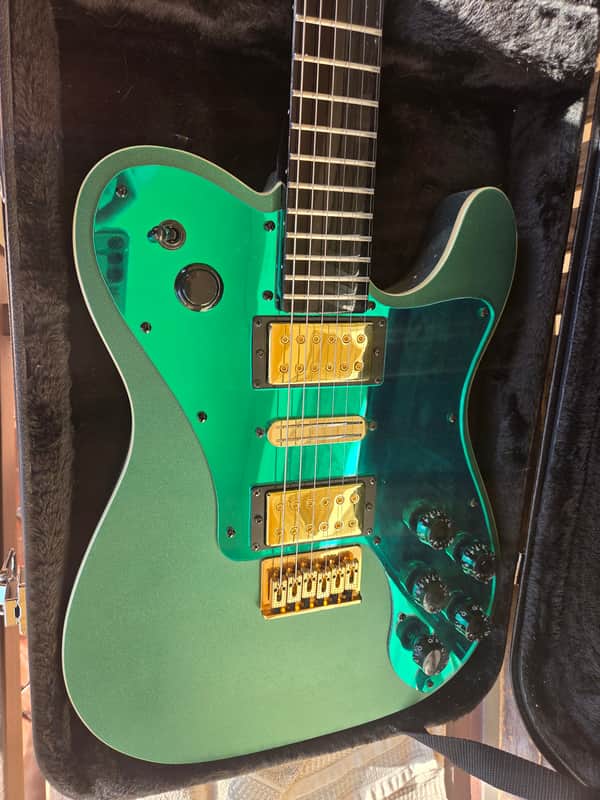

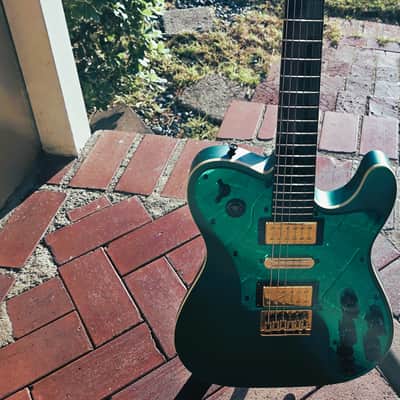

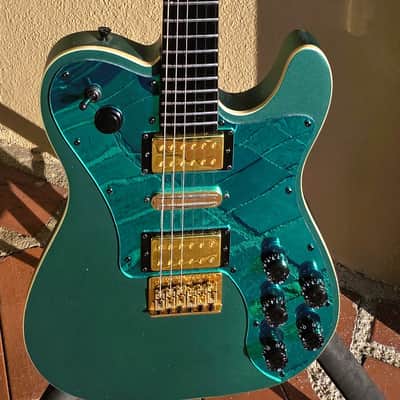

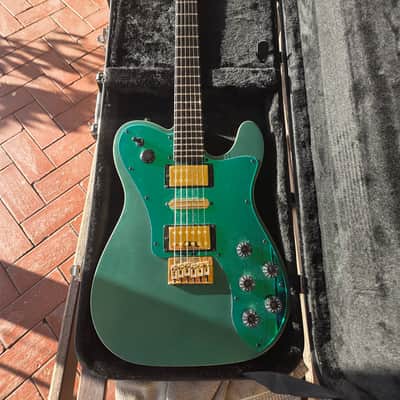

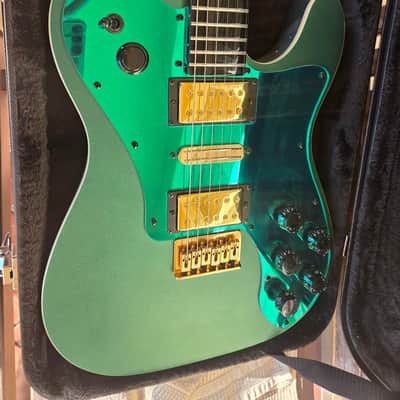

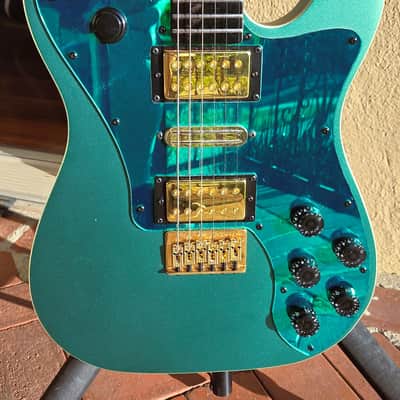

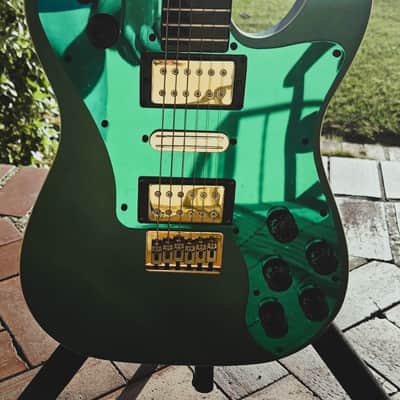

This is a custom build Telecaster style guitar I call the Telachine made to do EVERYTHING, including change your household remotes and open your garage door….hehe. The builder of this guitar has an incredible imagination coupled with the ability to replicate what some of the most popular guitars on the market today, followed up by the skill set to execute this dream boat. He used all high quality components and unique woods and finish work to achieve this amazing guitar. Some players may say this is a telecaster from hell! Of course those would be the simpletons that want a three way 2 PU “n” go style, which this can do too. However, I believe the Telecaster was actually born in hell so yes it is a Tele from the flaming city below, it just has the ability to rise above the boiling waters and fly to through the skies to the pearly gates. She is also quite light coming in at 5.8 pounds so there is no back breaking here. Below is the litany of things it actually does with all of its push/push knobs which are on every dial and every position of the toggle and it is also equipped with a momentary kill switch. Every kind of coil splitting/taping, phasing, reverse phasing and blending can be done from this one device. Every single spec is detailed below. This is a combination of the wring schemes from a whole bunch of Telecasters including, Jimmy Page, Nashville, Bret Mason, David Gilmore on a Tele, and just about any others worth mentioning. This guitar is in excellent condition and never been gigged with only a small scratch on the rear of the guitar. She comes in a Gator hard shell case that is in excellent+ condition too.

General Overview:

• Jimmy Page (50s style) wiring with added independent middle pickup with coil split
• Guitar Madness Gold Covered HexBucker Hight Output Humbucker Set
• Thin Profile Maple Neck with 22 Stainless-Steel Frets and Gloss Black Finish
• Gold/Black Tone Ninja Staggered Locking Tuners
• Pure Tone Gold Mono output Jack with multi-contact dual tension grounds & dual positive tips for optimal signal, tone & lowest possible noise.

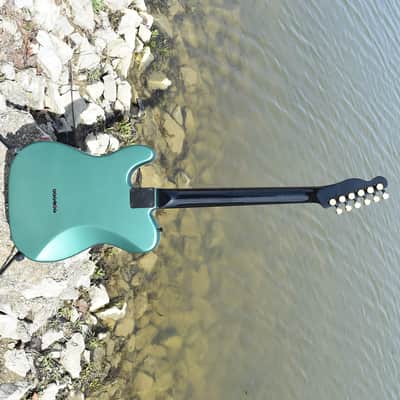

• Paulownia body with Metallic Green Matte finish, top binding, and rear comfort carve
• All cavities have been shielded and insulated. All grounding, shielding, insulation, and pickup phasing/polarity have been well thought out and executed
• Full level, crown, polish and full set-up by a certified luthier
• Lightweight: Total weight of guitar is 5.8 pounds
• Strings: D'Addario Nickel Wound XL 10-46 EXL110

About the wiring:

• Jimmy Page wiring (50s style) gives you 21 different combinations of tone. The chart of each of those 21 positions is below and in the images.
• Middle dual rail humbucker is independent and has a push/push coil split. Middle volume can be turned all the way off or blended into whatever position at whatever volume you like. Bridge and neck volume must be at least partially on for middle pickup to have volume.

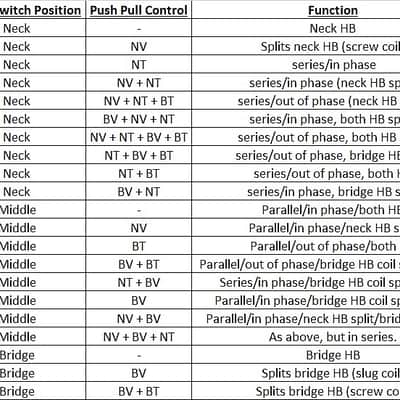

• Chart of knob positions is in the pictures.
• Shape your tone at the tip of your fingers. Want to smooth it out?...add middle humbucker to reduce resistance, or split a humbucker. Want to hear it out of phase?...push the bridge tone knob. Raw unbridled treble?...turn the middle humbucker all the way to zero.

21 Sounds:

1. Toggle: Neck//Push-Push: None//Function: Neck HB
2. Toggle: Neck//Push-Push: NV//Function: Splits Neck HB (Screw Coil)
3. Toggle: Neck//Push-Push: NT//Function: Series/In Phase
4. Toggle: Neck//Push-Push: NV + NT//Function: Series/In Phase (Neck HB Split)
5. Toggle: Neck//Push-Push: NV + NT + BT//Function: Series/Out of Phase (Neck HB Split)
6. Toggle: Neck//Push-Push: BV + NV + NT//Function: Series/In Phase (Both HB Splits)
7. Toggle: Neck//Push-Push: NV + NT + BV + BT//Function: Series/Out of Phase, Both HB Splits
8. Toggle: Neck//Push-Push: NT + BV + BT//Function: Series/Out of Phase, Bridge HB Split
9. Toggle: Neck//Push-Push: NT + BT//Function: Series/Out of Phase, Both HB
10. Toggle: Neck//Push-Push: BV + NT//Function: Series/In Phase, Bridge HB Split
11. Toggle: Middle//Push-Push: None//Function: Parallel/In Phase, Both HB
12. Toggle: Middle//Push-Push: NV//Function: Parallel/In Phase, Neck HB Split
13. Toggle: Middle//Push-Push: BT//Function: Parallel/Out of Phase, Both HB
14. Toggle: Middle//Push-Push: BV + BT//Function: Parallel/Out of Phase, Bridge HB Coil Split (Screw)
15. Toggle: Middle//Push-Push: NT + BV//Function: Series/In Phase/Bridge HB Coil Split (Slug)
16. Toggle: Middle//Push-Push: BV//Function: Parallel/In Phase/Bridge HB Coil Split (Slug)
17. Toggle: Middle//Push-Push: NV + BV//Function: Parallel/In Phase/Neck HB Split/Bridge HB Split
18. Toggle: Middle//Push-Push: NV + BV + NT//Function: In Series/In Phase/Neck HB Split/Bridge HB Split
19. Toggle: Bridge//Push-Push: None//Function: Bridge HB
20. Toggle: Bridge//Push-Push: BV//Function: Splits Bridge HB (Slug Coil)
21. Toggle: Bridge//Push-Push: BV + BT//Function: Splits Bridge HB (Screw Coil)

Switching Positions (with middle humbucker turned off):

1. Bridge (Resistance 15.83 ohms)

2. Bridge and neck (Resistance 7.71 ohms)

3. Neck (Resistance 14.57 ohms)

Switching Positions (with middle humbucker fully engaged):

1. Bridge (Resistance 6.06 ohms)

2. Bridge and neck (Resistance 4.32 ohms)

3. Neck (Resistance 5.86 ohms)

Body:

• Paulownia body with Metallic Green Matte finish, top binding, and rear comfort carve

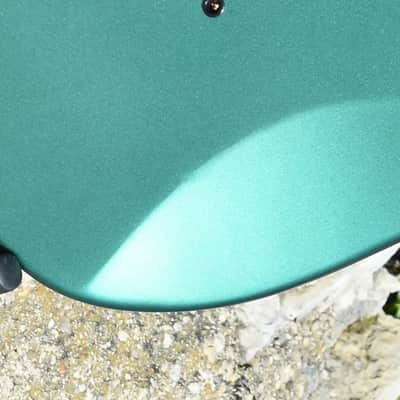

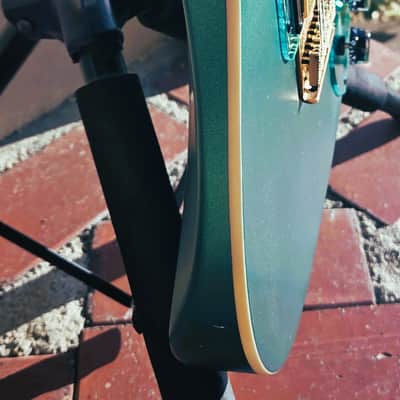

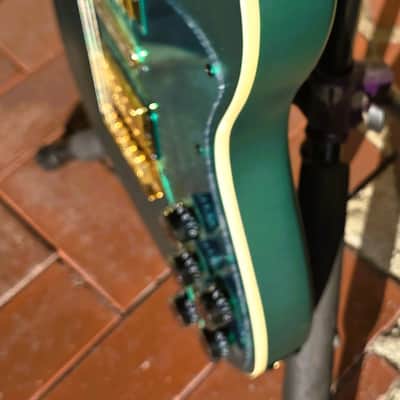

• There is a slight wave in the contour of the rear comfort carve shown in the last picture. Seems to be a characteristic of the wood grain. Was there prior to painting, feels smooth, and is hardly noticeable.

Neck:

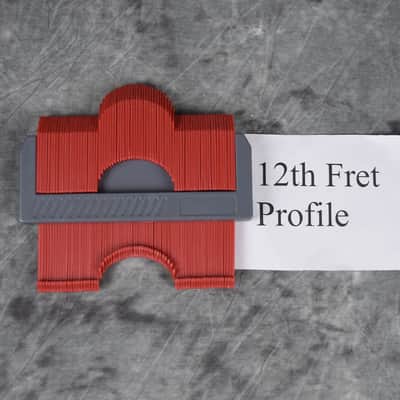

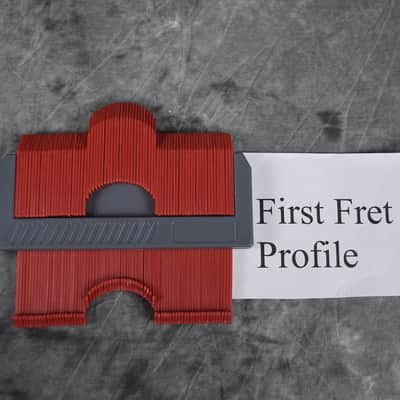

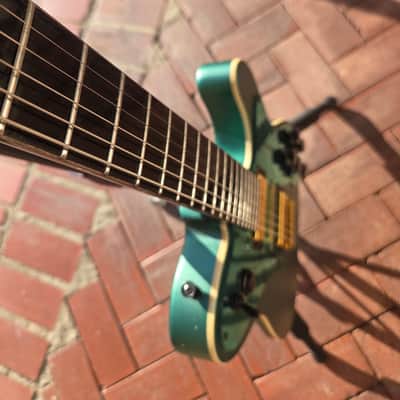

• Maple, Slim profile "C" Shape neck 22 stainless steel medium/jumbo frets, gloss black finish. Fast 20" radius (1st fret 0.85", 12th fret 0.90")
• Scale length 25.5"

Hardware:

• Gold modern hard-tail bridge with roller saddles
• Black knobs and black switch tip
• Black output jack plate
• Black strap pin buttons
• Gold/Black Tone Ninja Staggered Locking Tuners
• Black neck plate
• Black string ferrules
• Custom black pickguard

Electronics:

• Guitar Madness Gold Covered HexBucker in bridge 17k (Exact measure 17.00 ohms).
• Guitar Madness Gold Covered HexBucker in neck 16k (Exact measure 15.59 ohms).
• Gold dual rail humbucker in the middle 10k (Exact measure 9.84 ohms).
• 500K Push/Push Split Audio Taper potentiometers
• Black 3-way Toggle switch with black switch tip
• 0.022uF Polyester Film Tone Capacitor for bridge pickup
• 0.015uF Polyester Film Tone Capacitor for neck pickup
• Pure Tone Gold Mono output Jack with multi-contact dual tension grounds & dual positive tips for optimal signal, tone & lowest possible noise.
• All cavities have been shielded and insulated. All grounding, shielding, insulation, and pickup phasing/polarity have been well thought out and executed

Other Options that are included:

• Add Tesi kill switch 24mm black
• Added two string trees. (No string trees were necessary since the staggered tuners gave the strings sufficient break angle. However they are included on the guitar.

Trades are always considered if you are in the Los Angeles area. Just let me know what you are offering in detail with photos if your trade item is not listed.

Shipping in the lower 48 USA is free and included. Local pick up in Los Angeles is welcome and will be given a $40 rebate.

Worldwide shipping (anywhere other than the lower 48 states USA) is $300 or less depending on your location. THIS PRICE WILL MOST LIKELY BE LOWER DEPENDING ON WHERE YOU ARE. Overseas buyers just need to pay the upfront upon purchase and I will refund you any difference after your item ships. I will only charge you actual shipping charges and not for packing, handling, or boxes. I do this with everyone so you do not need to request it. I will also include an amount that I would have spent on domestic shipping as a credit as well. So, shipping rebate will be; difference in the Shipping rate PLUS a domestic shipping credit. I will provide a shipping receipt upon request.
