GX Series amplifiers are ideal for professional entertainers who require maximum performance and portability on a limited budget.

GX amplifiers deliver just the right amount of power to the most popular speakers used by entertainers.

Power levels matched to the most popular speakers. Inputs: XLR, 1/4" TRS and phono.

Outputs: Speakon® combo and binding posts

Voltage: USA 120v

Output power per channel, 4 Ω / 1 kHz (single channel): 850 W

Output power per channel, 8 Ω / 1 kHz (single channel): 600 W

Output power per channel 4 Ω / 1 kHz (both channels): 700 W

Input Sensitivity: 1.2 V rms

Output Circuitry: 2-tier Class H

Signal to Noise (20 Hz - 20 kHz): 100 dB

Maximum Input Level: +24 dBu (16 V rms)

Distortion (1 dB below rated power, 1 kHz): 8 Ω: less than 0.02% 4 Ω: less than 0.05%

Input Impedance: Greater than 20 kΩ (balanced)

Voltage Gain: 34.4 dB

Power Requirements (1/8 power, pink noise at 4 Ω):: 6A

Frequency Response: 20 Hz–20 kHz, +0, -1 dB

Output power per channel 8 Ω / 1 kHz (both channels)): 500 W

Agency Approvals: UL, CE, RoHS/WEEE Compliant

Input Connectors (each channel): 3-pin XLR and 1/4" TRS, balanced, parallel Phono, unbalanced

Amplifier and Load Protection: Short circuit, open circuit, thermal, RF protection Load protected against DC faults

Dynamic Headroom (4 Ω): 2 dB

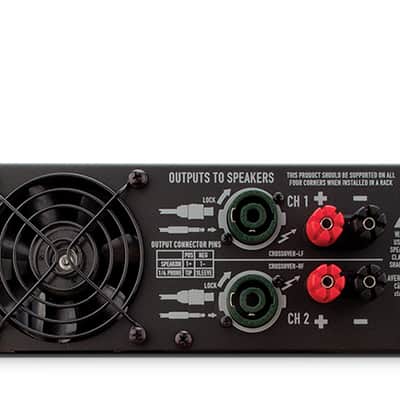

Output Connectors (each channel): Speakon®, 1/4", Binding posts

AC Current(A) and Heating(BTU/hour), 120 VAC (multiply current by 0.5 for 230 VAC): 0.3/60(Idle), 3.3/734(8 + 8 Ω, 1/8 power 1), 8.5/1456(8 + 8 Ω, 1/3 power 2), 16.2/1891(8 + 8 Ω, full power 3), 5.8/1160(4 + 4 Ω, 1/8 power 1), 11.2/2162(4 + 4 Ω, 1/3 power 2), 24.5/3754(4 + 4 Ω, full power 3)

Front Panel Controls and Indicators: Gain controls, 21 detents Red CLIP LEDs, proportional, 0.1% THD threshold Green SIGNAL LEDs, threshold 35 dB below clipping Blue POWER LED, AC on

Dimensions: Height: 3.5" (89 mm) 2RU Width: 19" (483 mm) Depth: 10.1" (257 mm)

Rear Panel Controls: Full Range / Crossover switch 100 Hz, 3rd order LP (sub), 2nd order HP (top)

Weight: Net: 28 lb (12.6 kg) Shipping: 32 lb (14.6 kg)

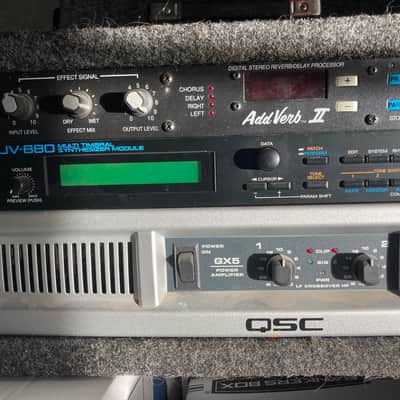

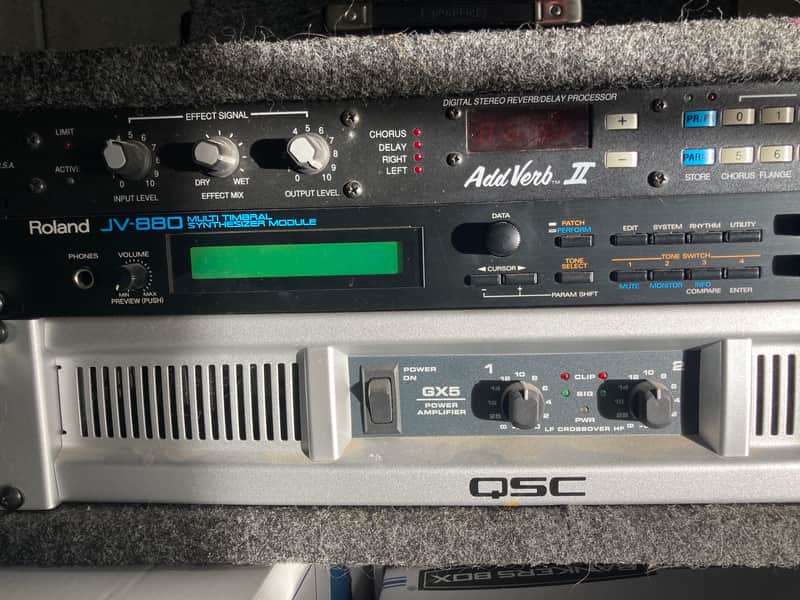

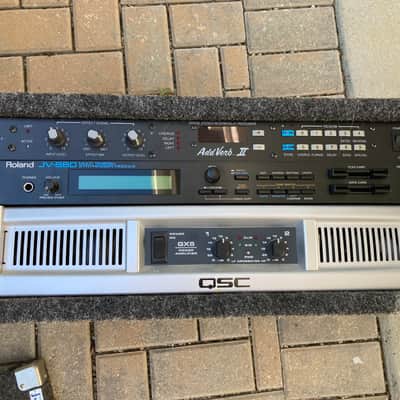

AddVerb and Synth module NOT INCLUDED
