Panasonic RAMSA WR-DA7 32-input Digital Mixing Console, 2 ADAT Cards

This is a working 32 channel digital mixing board with 2 ADAT cards. These ADAT cards are rare and very difficult to find and are valued at around $300 a piece. This expands the WR-DA7 from it's stock 16 inputs to a true 32 inputs.

Please note this will ship in 2 boxes, one for the mixer and the other for the meter bridge,

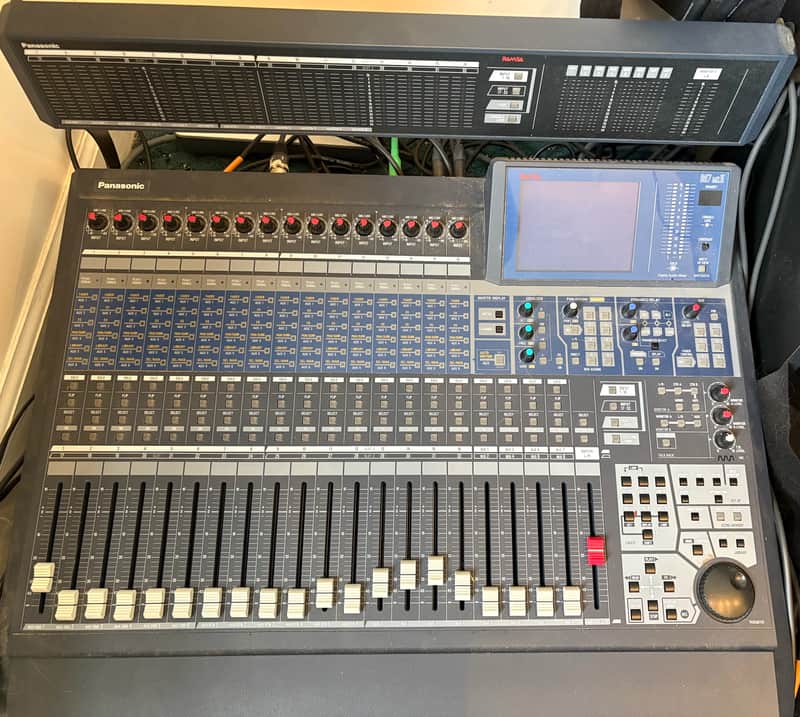

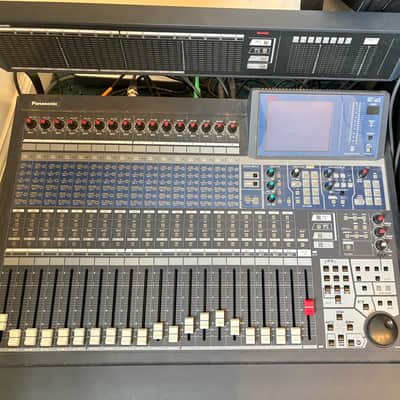

The Ramsa WR-DA7 is a classic 32-channel, 8-bus digital mixing console introduced by Panasonic in the late 1990s. Renowned for its warm 24-bit converters, motorized faders, and automated workflow, it was heavily favored in both professional recording studios and video post-production environments. A staple in pro-audio folklore, the WR-DA7 remains celebrated for its sound quality and rugged, heavy chassis. Here is a breakdown of its core features and specifications: Core Architecture & Processing

• Channels: 32 inputs combined with 8 mix buses and 6 aux sends (with dedicated returns).
• Dynamics & EQ: Each channel and mix bus features comprehensive 4-band parametric EQ, alongside robust dynamics processing (compressor, gate, and limiter).
• Conversion: High-quality 24-bit A/D and D/A converters that provide over 110dB of dynamic range.

Hardware & Control Surface

• Motorized Faders: Features 16 physical moving faders for channels 1-16, plus additional banks and faders for buses, master control, and external MIDI device control.
• Display: A prominent, backlit LCD panel in the top-right corner serves as the visual hub for routing, metering, and parameter editing.
• Build: The compact, heavy (23kg) chassis features a hard ABS resin faceplate and an optional meterbridge for precise visual feedback.

I/O & Connectivity

• Analog Inputs: 16 built-in analog inputs (8 balanced XLRs with individually switchable phantom power on channels 1–8, and 8 TRS jack inputs on 9–16).

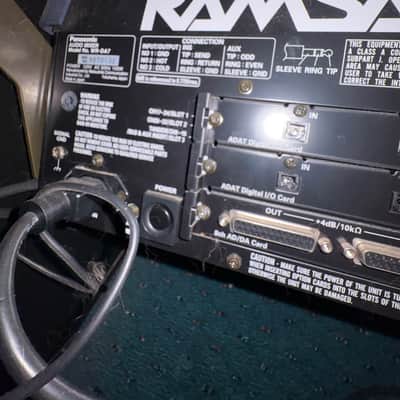

• Expansion: Three expansion slots on the rear panel accommodate optional I/O cards (including ADAT, TDIF, and AES/EBU) to expand the desk's digital capabilities.
• Post-Production: Equipped with built-in RS-422 and RS-485 connectivity for machine control, with options for SMPTE time code synchronization and 5.1 surround mixing.

Software & Automation

• DAW Integration: Features comprehensive onboard automation for faders, mutes, and EQ.
• Remote Control: The board can be connected to a Mac or PC via its serial interface using software like RamsaMax to back up scene memories, automation data, and operating systems.

You can read user discussions and community perspectives regarding its sound and reliability on platforms like Gearspace.
