X-Light-Weight 6.5lb Brent Mason Style Nashville Guitar-Butterscotch Blonde Ash 12" Radius Maple Neck+ 7-Way Switch+ Frets Leveled, Crowned and Polished + Humbucker+ Full Setup + Tortoise Guard !

From: The Haywire Custom Shop in South Carolina:
Instruments for Professionals-We Ship World Wide!

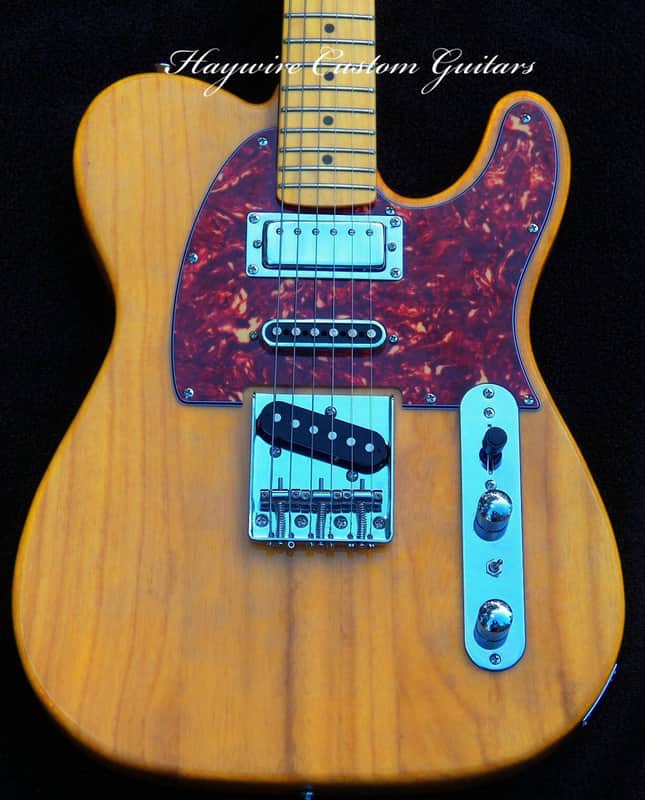

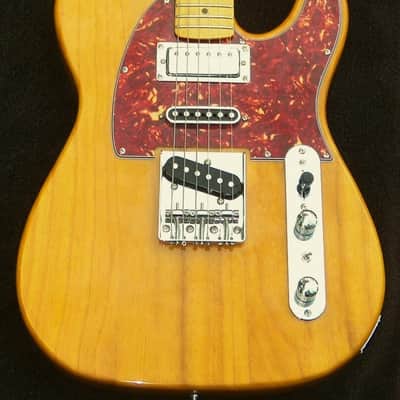

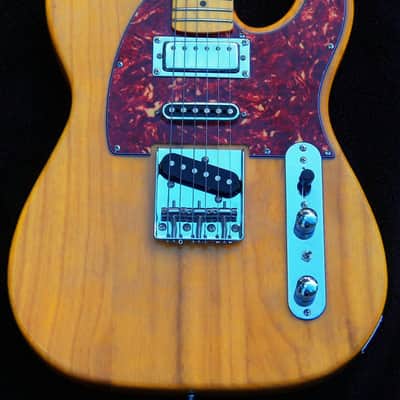

Brent Mason Style Nashville Natural Butterscotch Blonde X-Light 6.5 lb. 7-Way Switching+ Frets Leveled, Crowned and Polished +Maple 12" Radius Neck with Mini-Humbucker.

Haywire Custom Guitars X-light guitar. This guitar will be a comfort because it's so light. Haywire Custom Guitars builds very light guitars for musicians. As a musician you need this guitar for long gigs requiring constant stage presence for hours. Haywire Custom Guitars super-light guitar, feather light, and X-Light guitars will be a comfort in that they are so super-light it will help eliminate back and shoulder pain. It makes it a pleasure for musicians to work all night on the job playing guitar pain-free.

Haywire Custom Guitars 3 pickup Nashville guitar designs for Telecasters and Stratocasters. The pickups and wiring maintain everything you love about vintage tone. Our 3 pickup Nashville combinations are famous for sonic flexibility and a perfect platform for pushing the limits of tone.

X-Light-Weight 6.5 lb. 2025 Brent Mason Style Nashville Guitar-Natural Butterscotch Blonde Ash with Roasted Maple and Rosewood Neck+ Light Weight +7-Way Switch+ Frets Leveled, Crowned and Polished + Humbucker with Tortoise Guard PLUS Full Setup + 22 Frets + Treble Bleed Circuit plus more. Thickness at the first fret is .87 and the 12th is .89 with a modern "C" back profile.

This guitar includes a Mini-Humbucker, a Middle Strat Pickup and a RWRP standard Tele Bridge pickup like the Brent Mason Style guitars AND the ability to get all pickup combinations like Brents!

You’re going to love having all of the sounds and features of the two most popular single and double cutaway style solid body guitars combined into one amazing light-weight instrument.

The three pickup design with enhanced switching configuration allows the player to evoke the sounds of Hendrix, Clapton, and everything in between. This guitar is a hybrid of the two most popular single and double cutaway style solid body guitars in one versatile instrument. No more running around to switch guitars during a live performance when you have this guitar. Change from country to rock sounds with a mere flip of a switch!

The neck is similar to a Standard thin. Medium thin. A bit more meat than a standard thin neck with a modern "C" back profile. Telecaster 1960's Nashville style Butterscotch Blonde Light Guitar with Special Custom Modifications
with Treble Bleed Circuit installed featuring 7 Sound Switching, Mini-Humbucker, Strat Middle and Bridge SRV Pickups. Body wood is Ash.

This Guitar features:

1-Frets Leveled and Crowned perfectly and ends dressed for no sharp edges-NO BUZZ
2-Tortoise Pick Guard
3-Treble Bleed Option Already Completed on this guitar!

4-Action and intonation are dialed in perfectly

5-Strings are radiused to the neck for ease of playing

6-New jack with very smooth operation

7-Gloss finished neck back with a modern "C" back profile.

8- Hand-cut nut with proper depth in each string slot to aid your playing consistency

9-12" Radius Fretboard + 1-11/16 nut width

Incredible sounding Pickup Configuration with every possible pickup combination available.

A combination of a neck mini-humbucker, middle single coil, and a Telecaster bridge pickup produces a versatile sound with a warmer, fuller tone from the mini-humbucker in the neck, a bright and articulate sound from the middle single coil, and a punchy, snappy attack from the Telecaster bridge pickup, allowing for a wide range of tones depending on which pickup(s) are selected and how they are blended together.

Key characteristics of a neck Mini-Humbucker, middle single coil and a Telecaster bridge pickup combination:

Warm and smooth neck tone:

The mini-humbucker in the neck position provides a fuller, warmer sound with less pronounced highs compared to a standard single coil, ideal for smooth chords and lead lines with a bit more body and bass.

Bright and articulate middle tone:

The single coil in the middle position offers a clear, articulate sound with a brighter character, perfect for clean rhythm playing and adding definition to your tone. It's a perfect reactive pickup when played simultaneously with another pickup. A combination sounding quacky and a good choice for slide playing.

Punchy and cutting bridge tone:

The Telecaster bridge pickup delivers a snappy attack with a bright edge, ideal for cutting through the mix with strong rhythm playing and lead lines with bite.

Versatility:

• Clean tones:
• By using a mix of pickups, you can achieve a balanced, clean sound with good clarity across the frequency spectrum.
• Crunch and overdrive:
• When pushed with distortion, the combination can provide a nice blend of warmth from the neck pickup, cutting edge from the bridge, and articulation from the middle pickup.

How the pickup combination works together:

• Positional versatility:
• Depending on which pickup or combination of pickups you select, you can quickly switch between a warmer neck tone, a bright middle tone, or a cutting bridge tone.
• Blending options:
• When using the middle position with all pickups selected, you can blend the characteristics of each pickup, creating a unique, balanced sound.
• Note: Our electronics are added free of charge, however if you have any specific electronic requirements, please ask. As a full service custom shop, we have every and any part you'll need.
• Excellent Condition!

Variable Treble Bleed Circuit included:
This mod keeps the tone you have on "10" throughout the entire range of the volume control. We add a resistor capacitor network to the input and output of the volume control to keep the highs from leaving your tone as the volume is decreased.
By adding this circuit, we can help you avoid the "muddy tone" syndrome.
Now your tone is much more controllable and articulate!

When the Treble Bleed Circuit is included:

Turning the volume control applies varying amounts of a specially tuned high frequency filter to the selected pickups. Now each pickup has the ability to produce a stronger, fuller tone and 50% less noise. This variable treble bleed circuit is pre-installed. This variable treble bleed/bypass circuit corrects the problem of high frequency losses, provides auto-adjustment of tone at reduced volumes and improves audio taper between 3 and 10.

PLUS:
Tortoise Pick Guard
with
6 Saddle Top Speed Loader String-through bridge

3 great NEW pickups:
SRV Series Humbucker Neck Pickup, middle and
SRV Bridge Pickup - NEW! It has a fat, rich bottom, with strong, clear mids
 New Electronics** Custom finished Telecaster .....Professional Setup The neck is excellent with newly leveled and crowned frets. If you want great comfortable familiar feel, low action, good breakup and sustain from your pickups-then this is for you. A 12" radius guitar neck.


Haywire Custom Guitars offers this Nashville Tele with SRV pickups, & 7 way Switching Sound and Treble Bleed guitar mods.

Special Telecaster Bridge Pickup:
DC Resistance: 8.10K - 8.23K

Special Strat Middle Pickup:
DC Resistance: 7.58K

Special Mini-Humbucker Neck Pickup:
DC Resistance: 12.6K

 New from the Haywire Custom Guitars-Custom Shop

USA-Custom Shop 7 Sound Switch Translation:

Two choices now missing on a stock Nashville style.

Quick Run-Down: Here's what you'll get after we added the 7 Sound Toggle Switch between the Tone Controls. This mini-toggle will add the neck pickup to any position of the 5 way selector switch to gain access to all possible combinations of the 3 pickups. The mini-toggle switch adds the neck pickup in any position of the 5 way slider switch.

On this guitar you'll have two choices, now missing on your stock Nashville Telecaster.
Here's what you'll get after we added the 7 Sound Toggle Switch between the Tone Controls:

USA-Custom Shop 7 Sound Switch Translation:

NORMAL Position 1 of the 5-way selector switch activates the bridge pickup alone by engaging the toggle switch at this point it will activate the neck pickup giving you the bridge and neck pickups together.

Likewise, with the 5-way selector switch in the second position with the bridge and middle pickups activated, a flick of the toggle switch adds the neck pickup to the equation which gives you ALL of the pickups together. The two choices now missing on your stock 3 pickup guitar. The toggle adds the neck pickup when YOU want it.

7 WAY Switching includes: 5-way switch pickup selections PLUS Your 2 new selections:
The quick Run-Down: Here's what you'll get after we added the 7 Sound Toggle Switch between the Volume and Tone Controls:
(Toggle ON for the first two selections as follows:)
Toggle ON Position 1-Will give you tones and sounds reminiscent of the "Byrds” Rickenbacker tone.

Toggle ON Position 2-Will make all three pickups available at one time.
(Toggle off for following normal switch controls as follows:)
position 1 Bridge pickup alone bridge + neck in parallel
position 2 bridge + middle pickup in parallel all three pickups in parallel
position 3 middle pickup alone
position 4 middle + neck pickup in parallel
position 5 neck pickup alone

It is a great gigging guitar. It is a keeper with GREAT features. If you want great sound, comfortable familiar feel, low action, good breakup and sustain from your pickups-then this is for you. Haywire Custom Shop added the setup, and SRV pickups, the treble bleed circuit and 3 saddle speed-loader bridge

For Your Audiosyncrasies.........

Haywire Custom Guitar instruments feature a number of deluxe electronic configurations, from guitars with distinctive switching and control options to powerful, tonally versatile pickup configurations by a variety of some of the best Pickup Makers in the U.S.A.

Mini-Humbucker Neck Pickup is a higher output pickup, fuller tone, with more drive for your amp. Fullest tone played clean of all our neck pickups. It's wax potted for better tone. Mini-Humbucker Pickup for full power Double Coil Sounds 12.6K output From the Haywire Custom Shop Included:

Treble Bleed Option and Full Setup Already Completed on this guitar body!

Listed, upgraded, customized and modified by:

Haywire Custom Guitars Inc. Instruments for Professionals Call or write with any questions you may have:
 Haywire Custom Guitars Haywire Guitar Custom Guitars-Home of the "Gig Ready" Guitar! This Haywire Guitar comes with one year warranty on our workmanship from Haywire Custom Guitars.

These pickups are great for fat clean tone or harder driving rock with more grind or Soulful Blues Neck and bridge will be equal, or bridge slightly hotter when playing single notes.

SRV Neck and Bridge Pickups for Warmth with exceptional definition for any chord voicing and great presence for coming through a mix.
When the Treble Bleed modification is ADDED:
It allows you allows you to roll off your volume without losing the highs. Would you like being able to use the volume control... without sacrificing tone? Now You Can.

With the Treble Bleed Circuit Mod added on this guitar, what does it do?

It prevents the treble frequencies from bleeding off. It allows the treble frequencies to be re-introduced into the output for clarity and improved timbre.

At Haywire we simply install a TB Circuit capacitor. We build them in our custom guitars for a better Low and High sound spectrum:

1-error-correction of signals with enhanced clarity

2-preserve high end frequencies

3-improved taper when rolling back your volume control

Hand-soldered here in our shop: between the input and output lugs of your guitar volume control pot, to smooth out treble bleed.

Get more uniform tone from 1 to 10, and a more rounded sound at low volume.

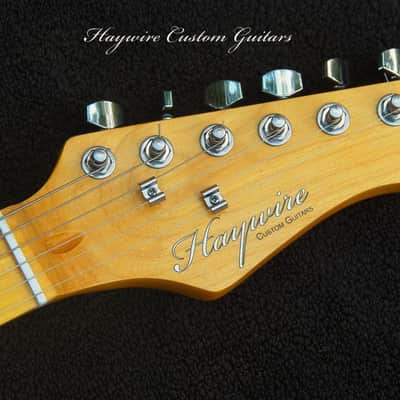

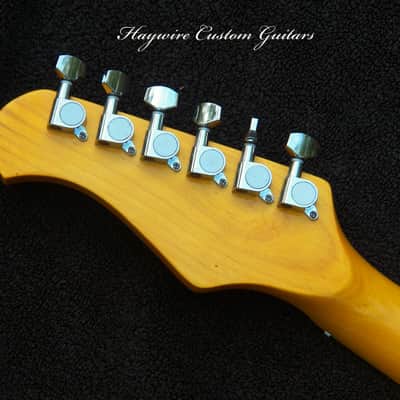

THE NECK
Roasted Maple Neck Custom Shop USA Hand Built beauty.
It has been fitted, the frets leveled, the neck aligned on all 4 axis, the frets were then
crowned and polished for a smooth broken in feel.
The neck has a comfortable familiar feel with low action and a standard 1-11/16" nut width added to a "C" neck profile and the Guitar Neck Fingerboard Radius is 12"

The fingerboard, or playing surface of the guitar neck, is usually curved or radiused across its width. The purpose of this radius is to accommodate the natural ergonomic shape of your fingers when they are in playing position. Comfort is certainly a major factor in selecting a fingerboard radius, but it is not the only factor. Musical Style... the fingerboard radius must also allow you to play the style of music you prefer. On this guitar the STRINGS are also radiused to the neck curve.

 All controls and pots, switches are new with **NEW Hardware**. The SRV pickups are built for tone and longevity. They are slightly hotter than stock but wound more for better sustain and they are very quiet. For our European Players-These Pick Ups are RoHS Compliant. Included with even pole pieces for reliable tone.

(Haywire Custom Guitars offers custom guitars made to their customer's specifications. The guitars are made with upgraded components at a reasonable price. They also offer custom guitar neck replacements, installations and custom guitar neck contours. Not always but sometimes we use stock photos per Reverb rules "Manufacturers may use stock photos" only grain patterns may vary. All other features described in the listing are accurate.) "Building satisfied players one Haywire Custom guitar at a time!" Great Tone and Sustain with lots of resonance.

The Bridge and Saddles on this Guitar Body:  Vintage 3 Saddle Bridge with Speed loader Bridge
