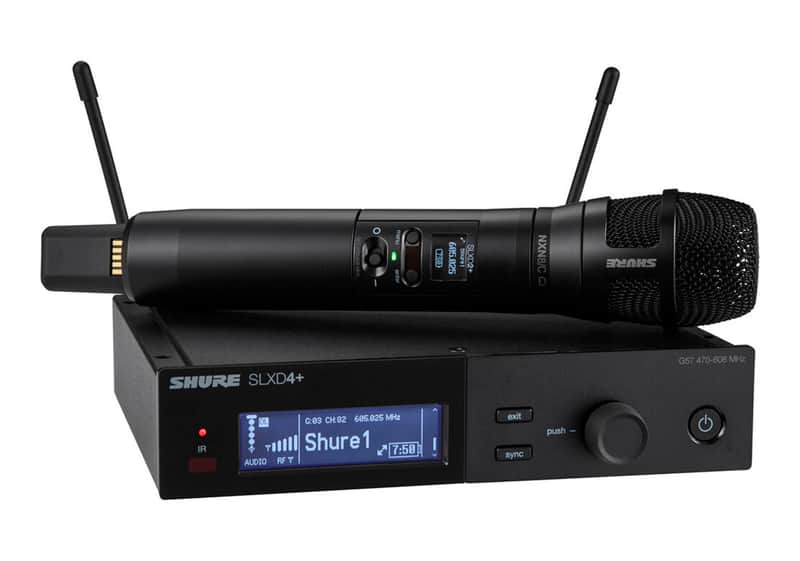

Shure SLXD24+/N8C Digital Wireless Handheld System with Nexadyne 8/C Cardioid Dynamic Microphone (G57: 470 to 608 MHz)

The Shure SLXD24+/N8C handheld wireless system features the Nexadyne™ 8/C cardioid dynamic microphone and is engineered to deliver professional-grade digital wireless performance for live sound, presentations, and broadcast applications. The system provides transparent 24-bit audio quality with a dynamic range exceeding 118 dB, ensuring your voice or instrument is captured with clarity and detail. Its robust RF performance spans a 138 MHz wide-tuning range, offering extensive geographical coverage and reliable operation even in challenging environments.

The SLXD24+/N8C supports up to 11 simultaneous systems in 6 MHz TV bands and up to 14 systems in 8 MHz TV bands, making it ideal for multi-microphone setups. Automatic Setup keeps the receiver and transmitter securely linked despite RF interference, while ShowLink® Ease enables remote adjustments of transmitter parameters, including frequency changes, power output levels, control locking/unlocking, and firmware updates—all over the air. These features allow effortless wireless management for professional engineers and volunteers alike.

Embedded Shure Digital Feedback Reducer software automatically minimizes unwanted audio feedback, and AES-256 encryption provides secure, reliable transmission. Users can monitor RF status and manage receiver and transmitter settings via the Wireless Workbench desktop software or the WWB Mobile app over Wi-Fi or Bluetooth. Powered by two AA batteries (included) or optional SB903 Li-ion rechargeable batteries, the SLXD24+/N8C offers up to 8 hours of uninterrupted performance, making it a robust and versatile solution for any wireless audio setup.

Included in the Box:

1 x SLXD4+ Digital Wireless Receiver

1 x SLXD2+/N8C Handheld Transmitter with Nexadyne 8/C Cardioid Dynamic Microphone

1 x Microphone Clip

2 x 1/4 Wave Antennas

1 x Rackmount Kit

2 x AA Batteries

1 x Power Supply

1 x Carrying Pouch

Product Specifications:

Microphone Type: 1x Handheld with Interchangeable Capsule

Polar Pattern: Cardioid

Frequency Response: 50 Hz to 20 kHz

Sensitivity: -54 dBV/Pa

Color: Black

Wireless Technology: Digital UHF

Diversity: Yes

RF Frequency Band: 470 to 608 MHz

Number of RF Channel Frequencies: 5520

Max Operating Range: 328.1' / 100 m

Max Transmitters per Band: 14

Dynamic Range: 118 dB

Latency: 2.8 ms

Encryption: AES 256

Mobile App Compatible: Yes (Android & iOS)

Receiver Type: 1x Tabletop/Rack-Mountable

Mounting Options: Rackmount (with Included Hardware, 1 U Half-Rack)

Antenna (Receiver): 2x Removable

Number of Audio Channels: 1

Audio I/O (Receiver): 1x XLR 3-Pin Balanced Mic/Line Output, 1x 1/4" TS Unbalanced Output

Network I/O: 1x RJ45

Gain Range: -18 to +42 dB

Display: Backlit LCD

Power Requirements: AC Input

Included Transmitters: 1x Handheld

RF Output Power: 1 / 10 mW

Antenna (Transmitter): Fixed Single-Band Helical

Input Level: Microphone

Bias/Plug-In & Phantom Power: N/A (Fixed-Capsule Handheld Transmitter)

USB I/O: No

Muting: Off/On Switch

Sync Method: IR

Transmitter Battery Type: 2x AA (Included)

Transmitter Battery Life: 8 Hours

AC/DC Power Adapter: 15 VDC (Included)

Receiver:

Weight: 2 lbs. / 930 g (without Antennas)

Dimensions (L x W x H): 7.8 x 6 x 1.7" / 197 x 152 x 42 mm

Handheld Transmitter:

Weight: 5.1 oz / 144 g

Dimensions (L x W x H): 6.9 x 1.5" / 176 x 37 mm

Shipping Weight: 8.74 lbs.

Shipping Dimensions (L x W x H): 17.8 x 14 x 6.3 in
