This unit is in excellent working condition.

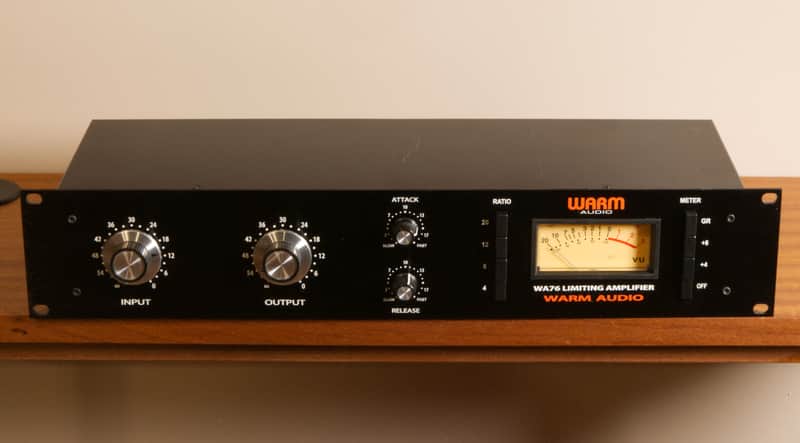

Warm Audio WA76-D Features:
- Single-channel clean-gain discrete FET compressor/limiter
- Re-creation of the iconic D-Rev ’76 with added recording features
- 100% analog discrete audio circuit path
- 600Ω input impedance attenuator
- Selectable 10kΩ input impedance to match modern audio interface specs
- Class A line-level output amplifier
- Custom original-spec, large-core CineMag USA input and output transformers
- Premium ceramic and electrolytic capacitors, metal film resistors
- Supports the infamous all-buttons-in ratio setting
- Variable dry/wet blend control for easy parallel processing

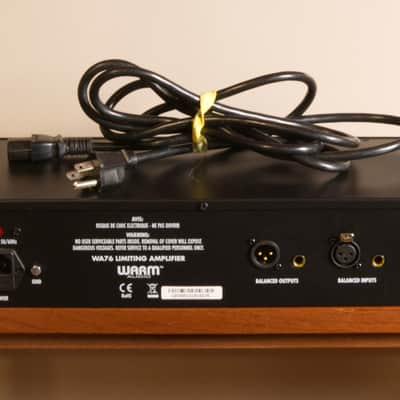

- Balanced XLR and TRS inputs and output
- Variable sidechain highpass filter: 30–300Hz, 12dB/octave
- 1/4-in. stereo link and external sidechain access
- Active bypass for running unit as a line amp
- True bypass for instant A/B comparisons
- Vintage-spec attack and release times
- Attack: 20–800μs
- Release: 50ms to 1s
- VU meter switchable for GR, +8 output, +4 output, and unit off
- Frequency response: 20Hz–20kHz (±1dB)
- Signal-to-noise ratio: 92dB (A-Weighted)
- Total amplifier gain: 53dB
- Total harmonic distortion: -67dB (at -6dBu
- 2U, 19-in. rackmount chassis
- Internal 100–230V universal power supply, IEC inlet
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Listed | 25 days ago |
|---|---|
| Condition | Excellent (Used) Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more |
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
| Made In |
|
