Powers On Without Issue

LCD Bright with No Dead Pixels

CD Tray Opens & Closes Without Issue

Formats & Records to Cards Without Issue

All Inputs Function & Record Without Issue

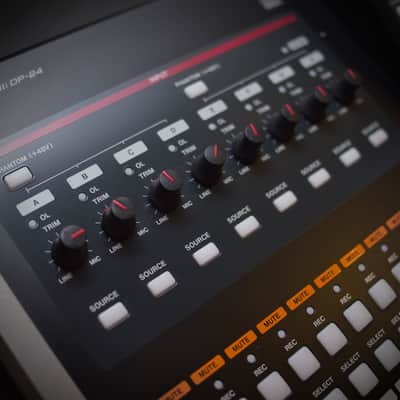

All Faders and Trim Function Without Issue

Headphone Out Functions Without Issue

Monitor Out Functions Without Issue

Transport Controls Function Without Issue

Buttons All Function Without Issue

Knobs & Jog Wheel All Function Without Issue

Known Issues:

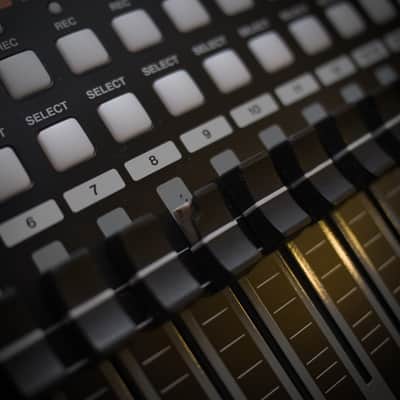

Minor Cosmetic Damage to 1 Fader (Does not effect function)

Minor Cosmetic Damage to 1 XLR Input Jack on Rear (Does not effect Function)

Minor Cosmetic Rubbing of Surface on Jog Wheel

No Power Supply Included

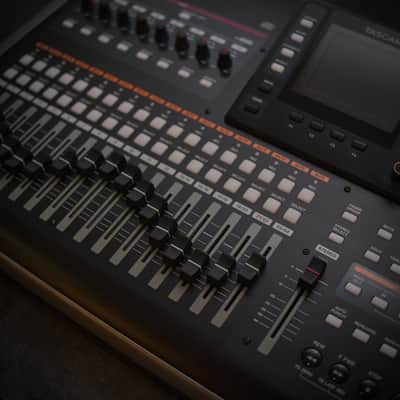

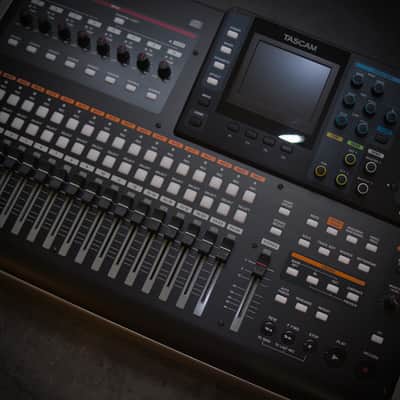

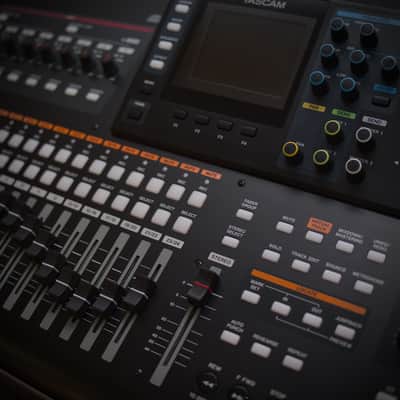

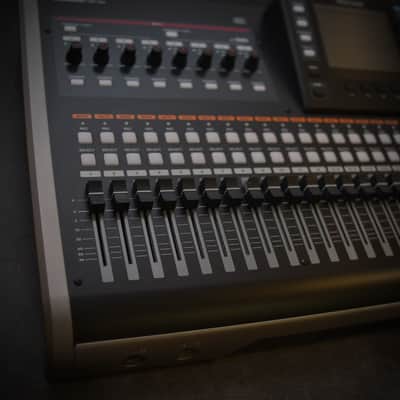

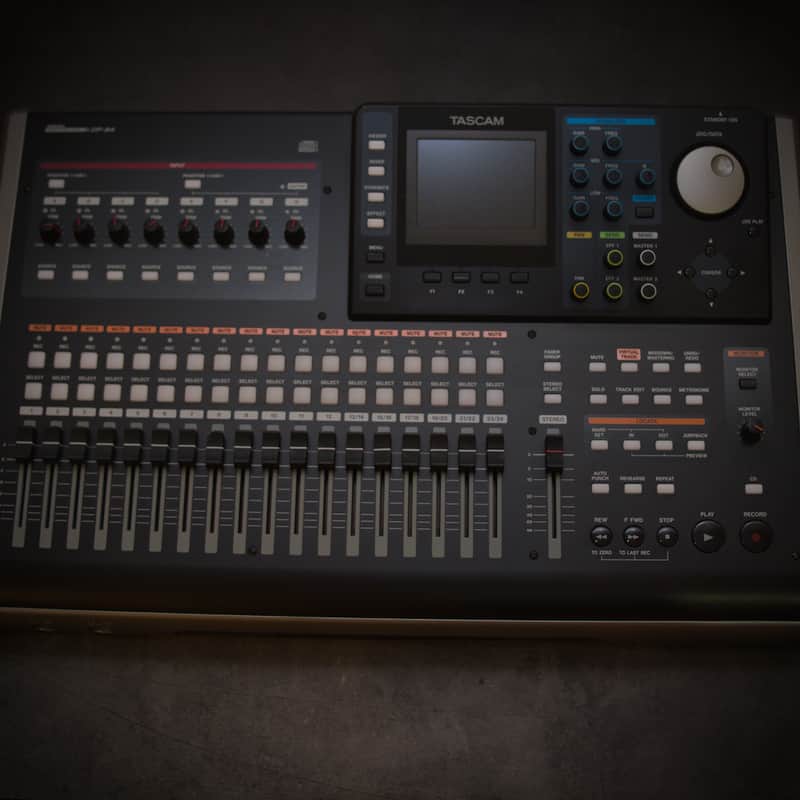

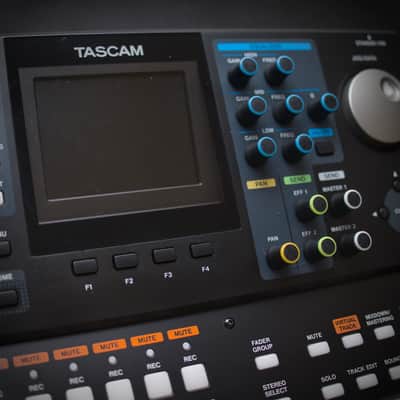

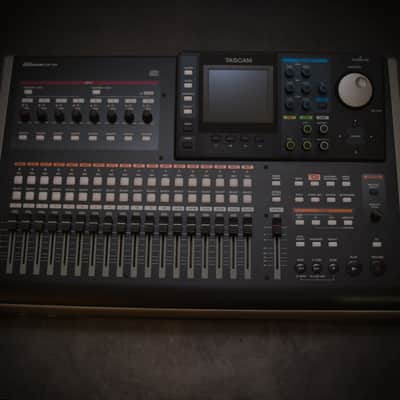

The Tascam DP-24SD is a 24-track digital Portastudio that records up to 8 tracks simultaneously to SD/SDHC cards (up to 32GB) at 44.1 or 48 kHz / 16 or 24-bit resolution.  It features 8 XLR-1/4" combo inputs with phantom power, a high-impedance input on Input H for direct guitar recording, and a 3.5" color LCD for intuitive control.  The unit includes onboard effects like reverb, delay, amp simulation, and mastering tools (multi-band compressor, EQ, normalize). It offers 19 faders, 3-band EQ on all inputs and tracks, virtual tracks for alternate takes, and USB 2.0 for file transfer. Powered by an included AC adapter, it's a standalone, all-in-one solution for recording, mixing, and mastering.

Core Specifications

• Tracks: 24-track playback, 8-track simultaneous recording
• Sample Rate: 44.1 or 48 kHz
• Bit Depth: 16 or 24-bit
• Recording Media: SD (512MB–2GB), SDHC (4–32GB)
• File System: FAT16 (SD), FAT32 (SDHC)
• File Format: WAV
• USB: USB 2.0 High-Speed (file transfer only)
• Display: 3.5" color LCD

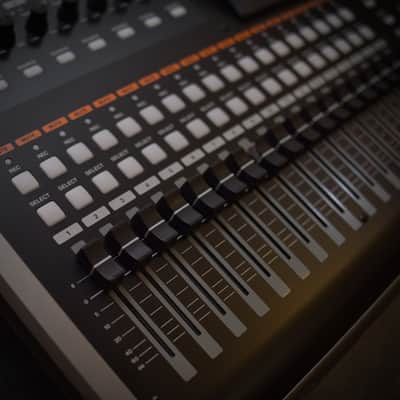

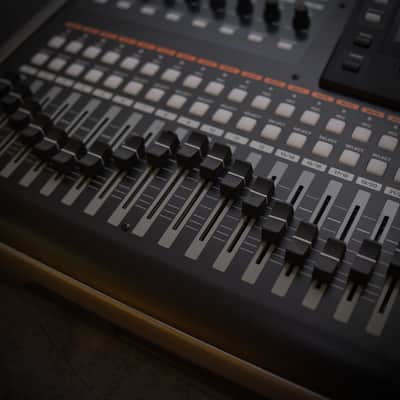

• Faders: 19 linear faders
• Effects: Input dynamics, guitar amp sim, reverb, delay, chorus, multi-band compressor, EQ, normalize

Inputs & Outputs

• Inputs:
• • 8 × XLR-1/4" combo jacks (mic/line)
  • Phantom power (+48V) on all inputs
  • Input H supports Hi-Z for direct guitar
• Outputs:
• • RCA stereo output (unbalanced)
  • 1/4" balanced monitor outputs
  • 1/4" stereo headphone output (70 mW + 70 mW)
  • 2 × 1/4" unbalanced effect sends
• Other I/O:
• • USB Mini-B (file transfer)
  • 2.5 mm TRS remote input (for optional RC-3F footswitch)

Audio Performance

• Frequency Response: 20 Hz – 20 kHz (±1 dB)
• Signal-to-Noise Ratio: ≥90 dB
• THD: ≤0.01%
• Input Impedance:
• • XLR: 2.4 kΩ
  • TRS: 22 kΩ or more (1 MΩ on Input H, Guitar mode)
• Nominal Levels:
• • XLR: -14 dBu
  • TRS: +4 dBu
  • RCA Out: -10 dBV
  • Monitor Out: -2 dBu
