May 2026 Service

Drive Belts Replaced (2x)

Counter Belt Replaced (1x)

Counter Re-Aligned

Lifter Mechanism Greased

Rotational Points Lubricated

Exterior Cleaned

Interior Cleaned

Heads Cleaned

Tape Path Cleaned

All Switches, Faders, Potentiometers, Inputs/Outputs De-Oxidized

Heads De-magnitized,

Condition of Deck

Cosmetics are Decent for Age (Some Minor Imperfections are Present - See Photos)

All Transport Controls Functional

Counter Functional

Metering LEDs all Functional

Pan & Level Knobs All Present & Functional

Mono Switch Functional

Rec Function Switches Functional

Inputs Functional

Outputs Functional

Trim & Faders Functional

Complimentary Type II High Bias New Old Stock Sealed in Original Packaging Cassette Tape Included

Known Issues

As is common on most of these decks, there is a low decibel white noise floor in the background of the headphone output which does not effect the line out (RCA) signal. Disclosed here regardless for transparency.

No power cable included (will require a non OEM brand 12v 1 A center negative readily available on amazon).

General Info

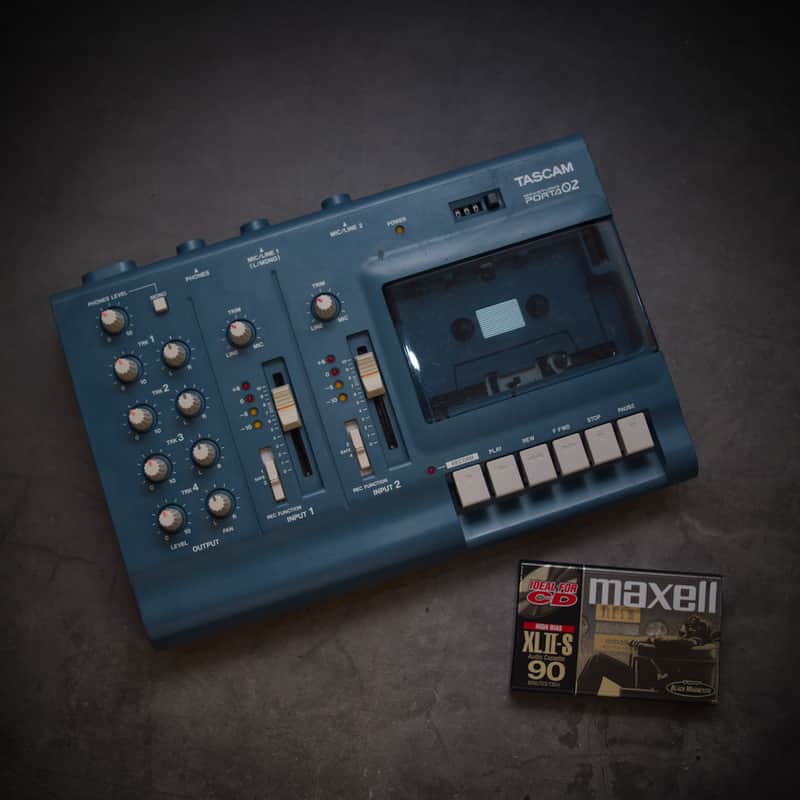

The Tascam Porta 02 MKII is a 4-track analog cassette recorder designed for musicians and educators seeking an affordable multitrack recording solution. It supports 2-track simultaneous recording using standard Type II (chrome) cassettes at a tape speed of 4.8 cm/s (1 7/8 ips).  It features two 1/4" mic/line inputs, one of which is a Hi-Z guitar input for direct instrument recording.  The unit includes a 4-channel mixer with level and pan controls, dedicated linear faders, a headphone output with independent level control, and stereo/mono switching. It requires an external 12V DC power supply and has RCA stereo outputs. The design is compact (305 × 64 × 205 mm).

Core Specifications

• Tracks: 4-track recording with 2-track simultaneous recording
• Tape Speed: 4.8 cm/s (1 7/8 ips)
• Tape Type: Optimized for Type II (chrome) cassettes
• Frequency Response: 50 Hz – 12.5 kHz ±3 dB
• Signal-to-Noise Ratio: 43 dB
• Total Harmonic Distortion: < 3.0% (400 Hz, -10 dB)
• Channel Separation: > 40 dB (at 1 kHz)
• Erasure: 65 dB (at 1 kHz)
