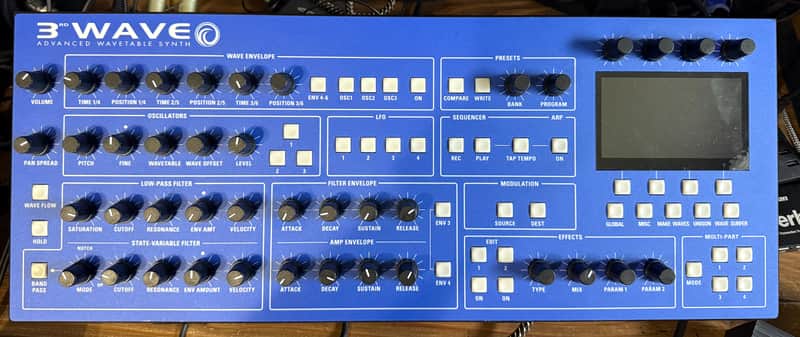

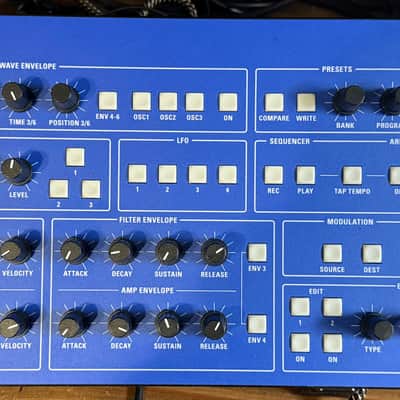

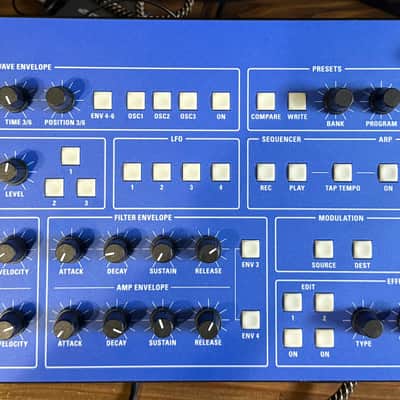

Barely used 3rd Wave Desktop, 4-part 24-voice version. Still has the film over the screen.

Great synth, just way too much for my needs

3rd Wave Specs:

SOUND ENGINE

3 High-resolution Digital Oscillators Per Voice

• 64 total user wavetable positions with 48 wavetables that contain 64 waveforms per table (32 legacy PPG waves with room for another 16 of this type)

• 32 original 8 bit wavetables from the PPG 2 series instruments with room for 16 more user created 8 bit wavetables

• 7 high-resolution modeled analog waveforms (sine, saw, triangle, supersaw, pulse, white noise, pink noise)

• VCO sync

• Linear FM

• 6-stage wave envelope per oscillator with variable time and position that can be looped

• Optional wave flow section that allows for no wavetable as well as no waveform interpolation

• Upper wavetable mode as with the original PPG 2 series

• Unison mode and chord mode with variable voice count

1 Analog Low-pass Filter

• Dave Rossum designed, classic, 2140 low-pass resonant filter

• 24 db per octave slope

• variable saturation amount

• optional resonance compensation

1 State-Variable Filter

• 12 db per octave slope

• Continuously variable between low-pass, notch, and high-pass, operation with optional band-pass mode

4 ADSR+ Delay Envelopes

• Filter, Amplifier, plus 2 additional envelopes switchable between exponential and vintage PPG-style response

• Freely assignable to multiple modulation destinations

4 Low-Frequency Oscillators

• Triangle, sawtooth, reverse sawtooth, square, pulse 1, pulse 2, pulse 3, and random (S&H)

• Variable delay

• Note reset

• Syncable to master clock BPM

2 Digital Effects

• BBD, stereo delay, tape delay, chorus, phaser, flanger, distortion pedal, rotating speaker, ring mod, room reverb, hall reverb, super plate reverb – most modeled on famous hardware devices

• Syncable to master clock BPM

• Parameters modulatable via mod matrix

WAVEMAKER TOOL

Built-In Custom Wavetable Maker

• “Sample-to-wave” functionality. Connect an audio source to the 3rd Wave’s Audio In port, press “Make Waves” and the synth samples the audio to create a custom wavetable

• Samples to convert can also be brought in as a 96 kHz wav file through USB

• Store up to 32 custom wavetables

• 64 waveforms per wavetable

• Accepts pitched or un-pitched material as input

• 96 kHz sampling rate

• 16-bit resolution

• 1024 cycles per waveform, converted automatically to cover entire keyboard range

• Flexible wave-sampling length

• Imports Serum™ wavetables

SEQUENCER

Performs both Note and Parameter Sequencing

• 4 parts per sequence

• 24 sequences per preset

• Up to 32 measures per sequence

• Variable quantization resolution per sequence (32nd, 16th, 8th, quarter, half, whole note, or quantization off), that is settable in real time

• Variable swing

ARPEGGIATOR

1 Arp per Multi-part

• Up, down, up/down, and assign modes

• Variable range (1, 2, or 3 octaves)

MOD MATRIX

16-slot Modulation Matrix Per Multi-Part

• 16 slot modulation matrix with 27 mod sources and 114 mod destinations

• 12 additional fixed-source mod paths

• Modulation assignment buttons enable quick and easy modulation routing

• Mod Matrix runs at audio rates

• Sequencer can record and play mod parameter changes in real time

CONTROLS

• 77 knobs and 39 buttons enable deep, comprehensive editing with minimal menu diving

PROGRAMS

• 500 factory programs. User rewritable

IN/OUT

• 4 Stereo outputs (2x 1/4″ phone jack per part)

• Headphone out (stereo 1/4″ phone jack)

• MIDI In, MIDI Out, and MIDI Thru

• USB port for bidirectional MIDI communication

• Audio Input for creating user wavetables from external audio source (1/4″ phone jack)

• Audio Input can also route audio through the filters, output chain, and effects

• Sustain/footswitch input

• Volume pedal input

• Expression pedal input

POWER

• Operates worldwide on voltages between 100-240v, 50-60 Hz, 65 watts maximum power consumption
