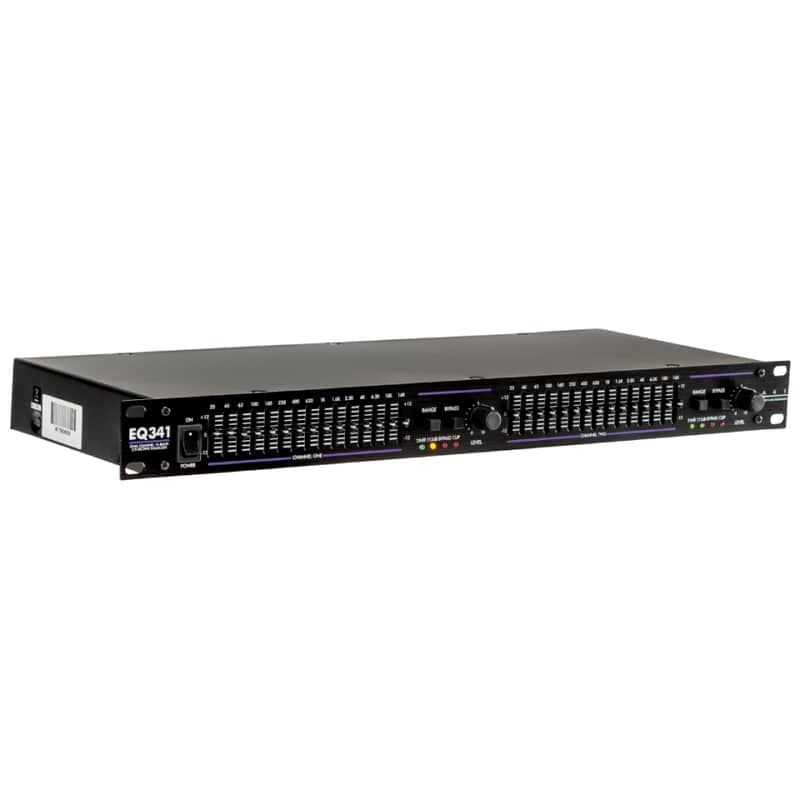

ART-EQ341 Dual 15-Band Graphic EQ
This seller has not set a shipping cost for Brazil. Please contact them to ask about shipping.
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
ART 300-Series graphic equalizers are designed for live sound, studio, and installation audio applications to provide intuitive sound shaping, versatile features, and silent operation.
The EQ341 is a dual-channel 15-band EQ. Each channel has an independently switchable range of 6 or 12 dB, master level control, and bypass switch to quickly compare the dry and processed signals.
The rear panel has balanced XLR, balanced 1/4” TRS, and unbalanced RCA connectors, so the EQ341 is easy to integrate into any system. It also features a ground lift switch to help eliminate hum.
Looking for even more control? Check out the dual 31-band .
Features- Dual 15-Band Graphic EQ
- 20mm Sliders with Centre Detent
- Switchable 6 dB or 12 dB Range
- Master Level Controls
- Balanced XLR and 1/4" TRS Inputs and Outputs
- Unbalanced RCA Input and Output
- 1U Rackmount
- Specifications Channels2Bands per Channel15 (2/3 Octave, ISO Spacing)Accuracy+/- 3% of Centre FrequencySliders20 mm with Centre DetentRange+/- 6 dB or +/- 12 dBInputs2x Balanced XLR and 1/4"
2x Unbalanced RCAInput Impedance20 kΩ (Balanced)
15 kΩ (Unbalanced)Maximum Input Level+22 dBm (Level Control at Centre)Outputs2x Balanced XLR and 1/4"
2x Unbalanced RCAOutput Impedance Level<150Ω (Typical)Frequency Response20 Hz to 20 kHz (+/- 0.5 dB)Signal to Noise Ratio-94 dBTotal Harmonic Distortion0.01%Channel Separation>50 dBOverload LED Threshold6 dB below Clipping (All Filters Flat)Dimensions (HWD)1.75” x 19” x 5.5”
4.4cm x 48.3 x 14 cmWeight4.85 lbs. / 2.2 kg
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Categories | |
| Electronics |
|
Product safety information may be available here.
