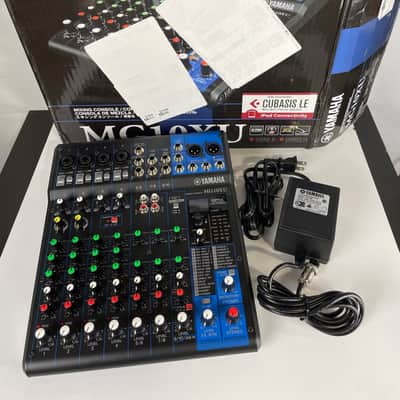

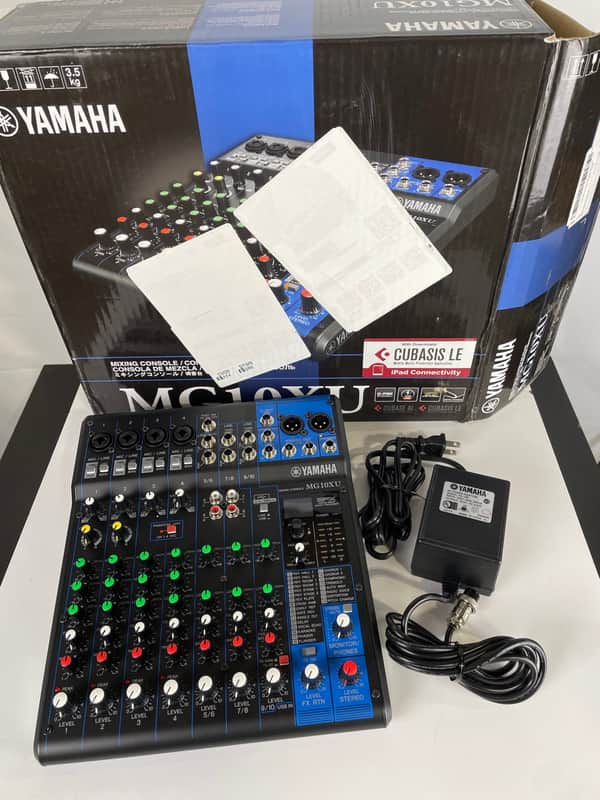

Damage: None. Note: Open box - Wear and tear on the original packaging.

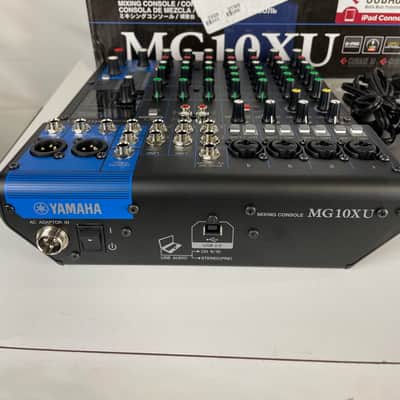

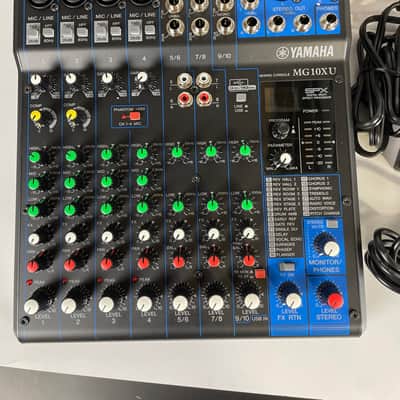

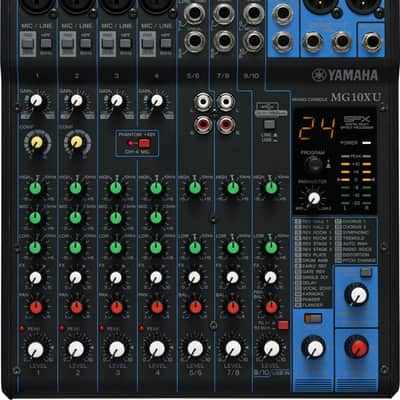

The MG10XU from Yamaha is a compact ten-input mixer with built-in effects for performances, lectures, recordings, and similar applications. The mixer features four mic/line combo inputs with D-PRE mic preamps as well as six 1/4" line inputs with stereo level controls. It also features USB connectivity and is capable of providing two channels in and two channels out to your computer at up to 24-bit / 192 kHz, ideal for recording live performances, demos, and more. Each of the four mic/line inputs is equipped with a 3-band EQ, pan control, and a high-pass filter. The four D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. They also each feature 26 dB attenuation switches for recording loud sound sources such as guitar amplifiers. The MG10XU mixer has stereo XLR and TRS outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers, or devices such as digital recorders. Each of the MG10XU's channels feature a dedicated FX bus send level and there are 24 effects presets to choose from. The overall level of the FX bus is controlled by the dedicated FX return level control. Providing reverbs, delays, phaser, flanger, chorus, tremolo, auto-wah, distortion, and more, these effects can be used to help vocals and instruments sit better in your mix.

Product Features

• Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
• “D-PRE” Mic Preamps with an Inverted Darlington Circuit
• High-Grade Effects: SPX with 24 Programs
• 24-bit / 192kHz 2in / 2out USB Audio Functions
• Includes Cubase AI DAW Software Download Version
• PAD Switch on Mono Inputs

Attributes

• Color: Black

Technical Specifications

• Features: USB
• # of Channels: 10
• Dimensions: 2.8" H x 9.6" W x 11.6" D
• EQ: 3-Band EQ
• Inputs: 4 x Combo, 6 x TRS, 4 x RCA
• Outputs: 2 x XLR, 2 x TRS, 2 x TRS (Monitor)
• Power Source: PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m)
• USB: 1 x USB-B
• Processing Type: Analog
• # of Mic Inputs: 4
• Busses/Groups: 1 x Stereo
• Aux Sends: 1 x Post (incl. FX)
• Computer Connectivity: USB
