Mad Scientist On Stage - Refurbished

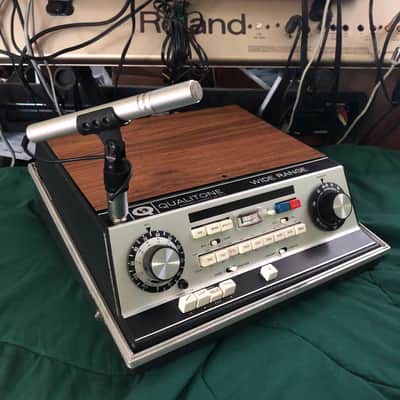

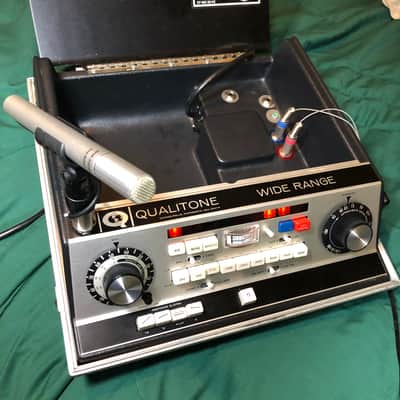

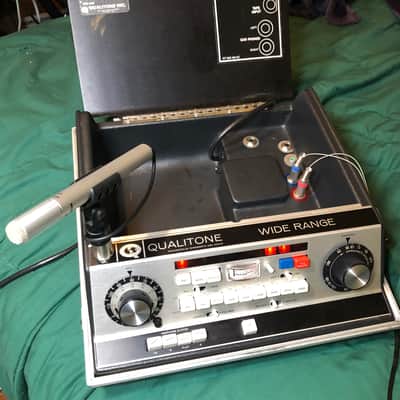

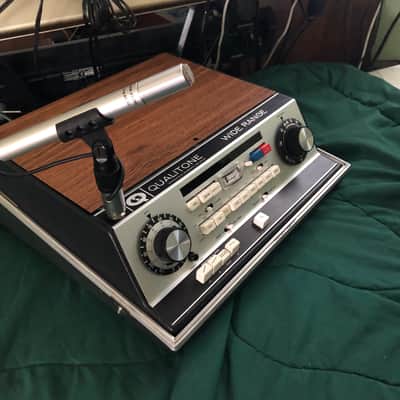

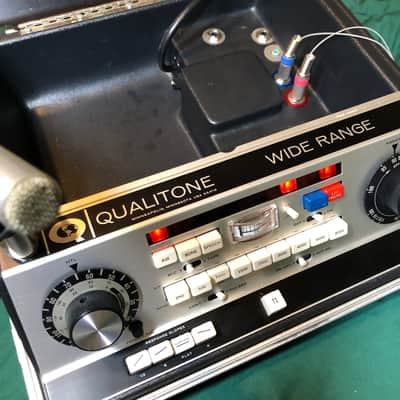

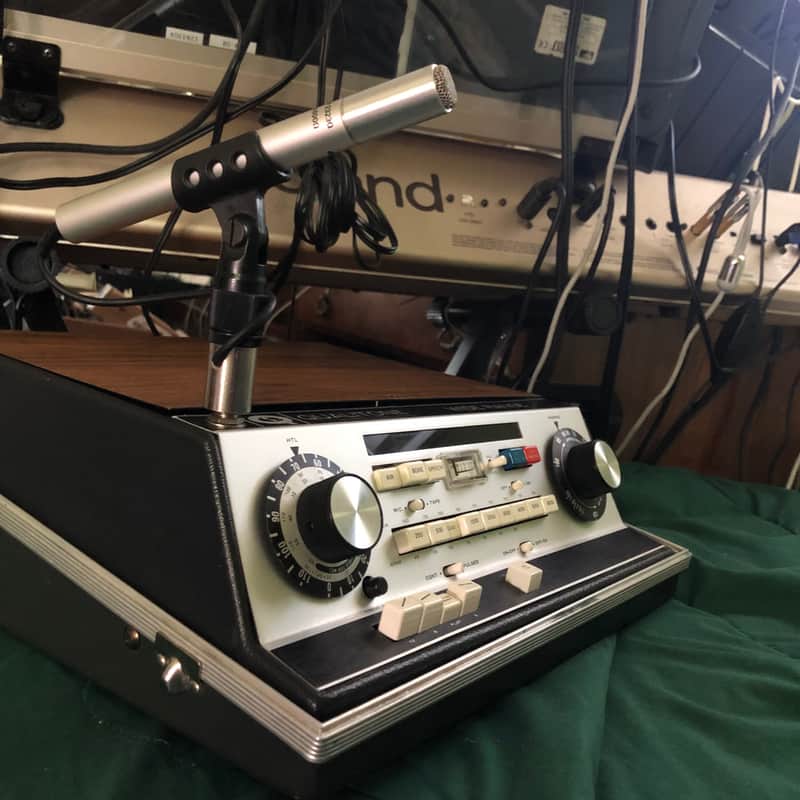

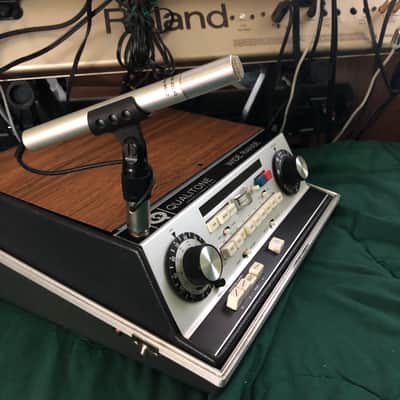

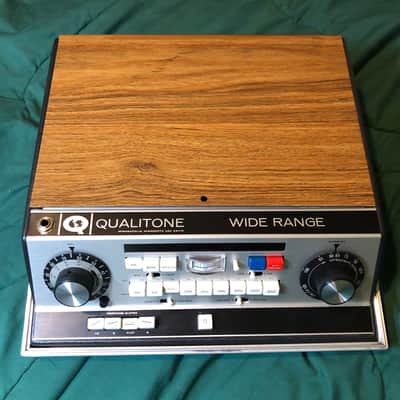

70's Medical Hearing Test Machine - Musically Useful for: • Tones (9 of them: continuous or pulsed) • White Noise Generator • Mic and line input • 4 position Equalizer (for line input): Bass cut, Normal, High Cut

Unit refurbished to fully working condition. Made in the USA in the days of Analog synths - all discrete components: no ICs! - Quality medical equipment with that 1970's Sci-Fi look - Great Stage Prop! - Sound Source - Or you can actually use to scientifically test how far your hearing is gone!

Features:

• Tones (9 of them: continuous or pulsed)
• White Noise Generator
• Mic, Mic and line input
• 4 position Equalizer (for line input): Bass cut, Normal, High Cut

Detail Features:

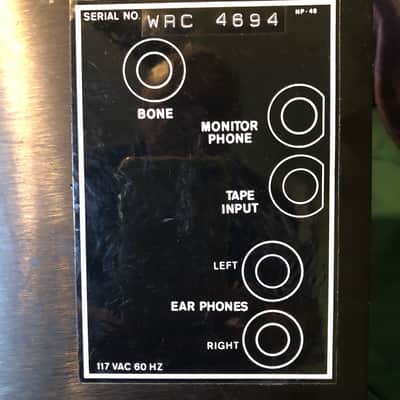

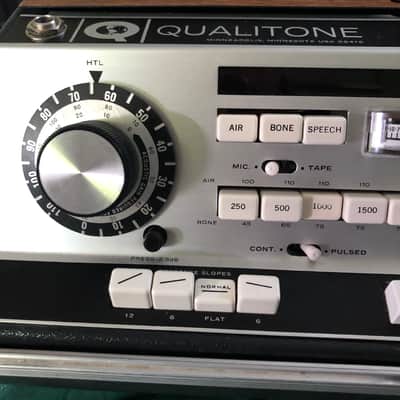

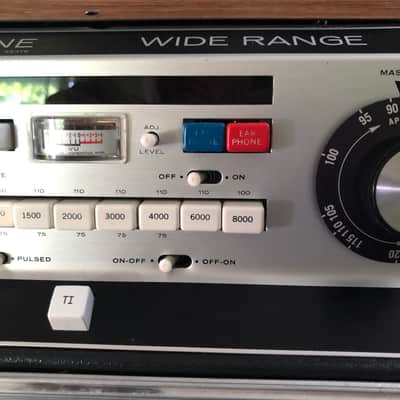

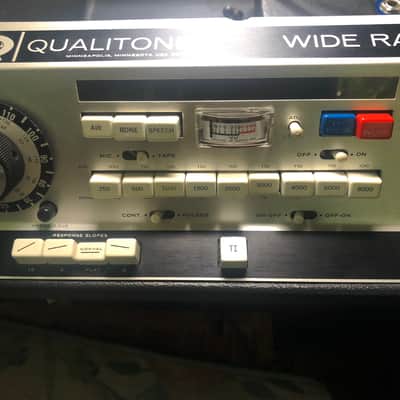

• Tone Generator: 9 Tones: 250 / 500 / 1000 / 1500 / 2000 / 3000 / 4000 / 6000 / 8000 Hz: either continuous, or pulsed (about 1 Hz pulse rate) - To be sent to outputs: "Air" (Head Phone Jack: Left and Right separately) or "Bone" (7 Tones - all except: 6K and 8K) - • White Noise Generator - sent to Head Phone jacks: Left Right separately switchable: (either TEST SIGNAL (Tone, Mic, or line in) or WHITE NOISE (Masking) - Separate level controls for Test Signal (HTL) and White Noise (Masking), -2.5 db mute button for HTL comntrol (to determine low end of audibility) • INPUTS: MIC, Line ("Tape") with Monitor Ouptut jack - Input level control with VU meter for Mic, Line ("Tape") • 4 position Equalizer (for line input): -12db Bass cut, -6db Bass Cut, Normal (Flat), -6 db High Cut • Operation indicator Lights (Orange lamps)

Work performed on this unit: Treated controls and switches with contact cleaner, lubricated, tested capacitors, fabricated adapter cable to make it usable - - It is hard to work on this machine - I spent more than 4 hours on it - now works well

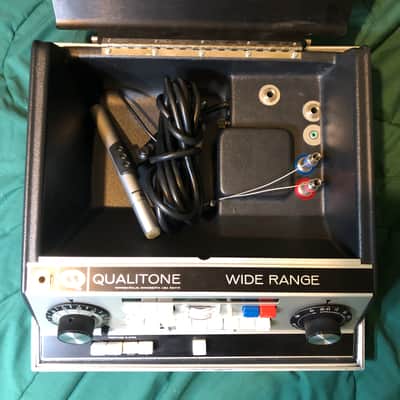

Lot: Hearing Test Machine, Original Condensor Micrpohphone, Adapter that I fabricated: from 2 x 1/4" mono to 3.5 mm stereo - which allows: to use modern head phones or to feed sound to modern equipment
