Akai MFC42 Analog Filter – Excellent Condition – Original Owner – Tested

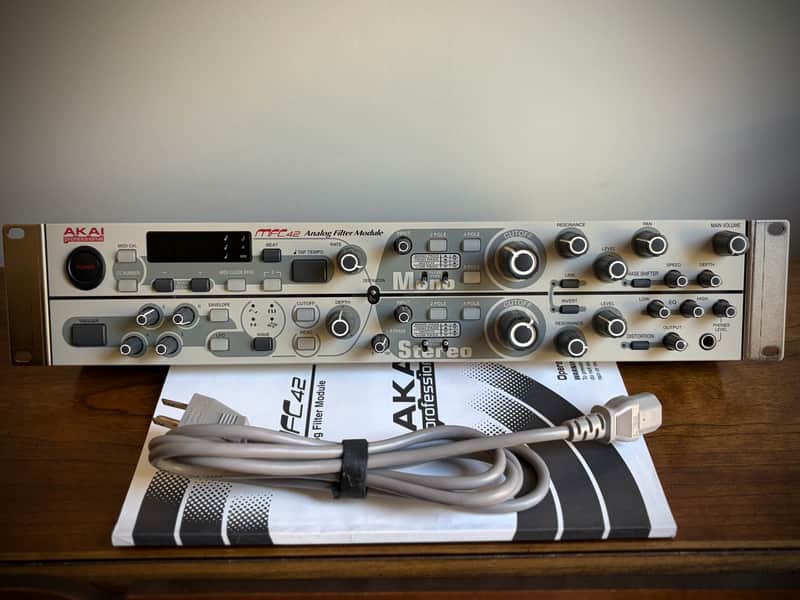

For sale is an Akai MFC42 analog filter in excellent condition. The unit has been kept rack mounted in a clean, smoke-free environment since purchase. I am the original owner, and the MFC42 has been fully tested and works wonderfully. The MFC42 comes with the original owners manual and a power cable.

Please feel free to reach out with any questions.

Description from Vintage Synth Explorer:

The MFC42 is a true analog filter module designed by Akai for their MPC-series gear. However, you can use it to process any sound source since it has basic 1/4" inputs and outputs and MIDI! It has genuine analog filters for that warmer tone with Lowpass, Highpass, Bandpass, and Notch filter types. It consists of a MONO filter section and STEREO filter section. The MONO section offers 2-, 4-, and 8-pole filter slopes. The STEREO section offers 2- and 4-pole filter slopes. The MONO 8-pole slope utilizes the whole filter circuitry so the STEREO section is not active. Likewise, the MONO section is inactive when the STEREO section is in 4-pole mode. But when both sections are used simultaneously, they can be linked so that the MONO filter's control knobs control both MONO and STEREO sections. The link can also be inverted so the two sections sweep in opposite directions.

Other features include one ADSR envelope for the filter's contour. This envelope can be triggered by MIDI and Trigger button, but not by audio unfortunately. The LFO is essential to bringing this filter to life! It has four waveforms including sawtooth, square, triangle and random. It can be synced to MIDI clock and can modulate to 16th, 8th, 1/4, 1/2, whole, double-whole, and triplet notes in tempo with your MPC (or MIDI) sequences! Or use the "Tap" button to tap in the tempo in real-time. A large numeric display shows the current tempo and there's also an EQ on-board for global sonic fine-tuning. Effects include a very harsh (in a good way) Distortion and stereo analog Phase Shifter. The ins-and-outs consist of three 1/4" inputs (mono/stereo), stereo phono (RCA) inputs, stereo 1/4" outputs, stereo phono (RCA) outputs, and MIDI in, out and through. All pertinent knobs and buttons can send and receive MIDI control.

Filter Modes - Lowpass, Highpass, Bandpass, NotchFilter Slopes - Mono Analog filter: 2-, 4-, and 8-pole slopes
Stereo Analog filter: 2- and 4-pole slopes

Envelopes - ADSR Envelope

LFO - MIDI-syncable with sawtooth, square, triangle, random waveforms. Can modulate filter cutoff and/or resonance.

Effects - Distortion, stereo analog phase shifter, EQ

Control - MIDI IN/OUT/THRU (send/receive on 1 channel only)

Date Produced - 2001
