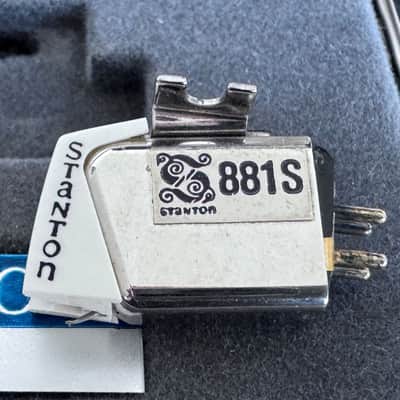

Stanton 881S MM Phono Cartridge with D81S retipped stylus and original box

Stanton 881S MM Phono Cartridge retipped with a new tapered hardened lightweight aluminum-magnesium alloy cantilever and new Ogura Vital PE true ellipsoid hyperelliptical line contact diamond stylus.

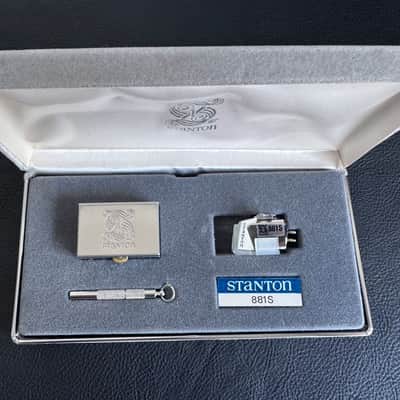

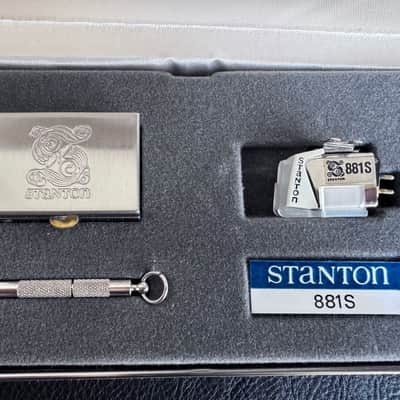

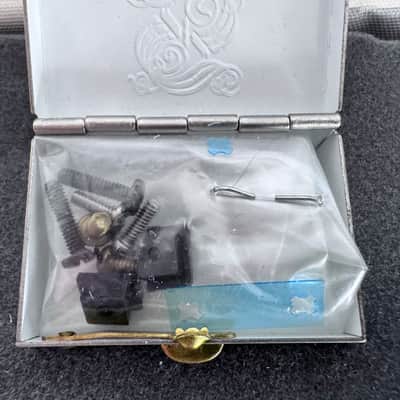

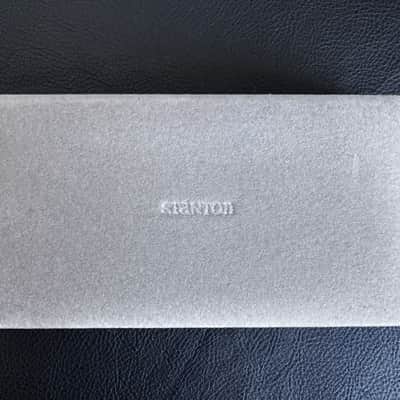

Original box, stylus guard, manual, mounting hardware (No Calibration Sheet and Longhair Brush - broken hinges).

The original stylus was retipped with new tapered hardened lightweight aluminum-magnesium alloy cantilever and new Ogura Vital PE true ellipsoid hyperelliptical line contact diamond stylus by Joseph Long aka Groovetickler.

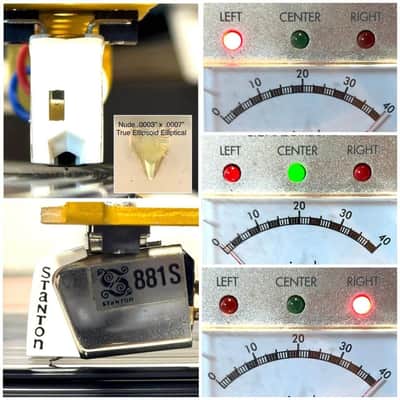

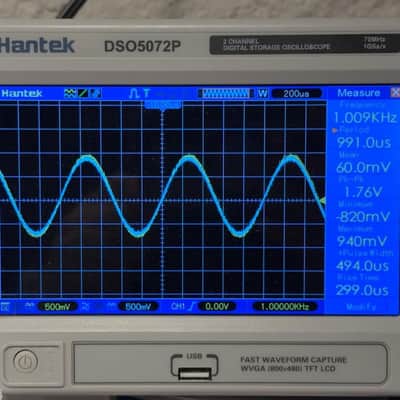

Channel separation: 40db.

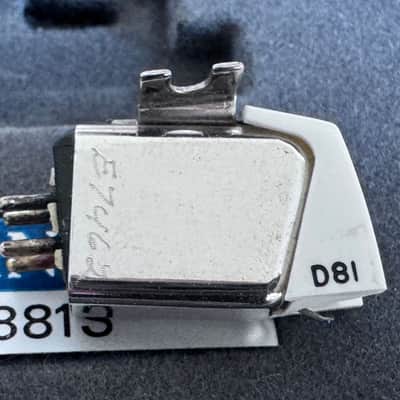

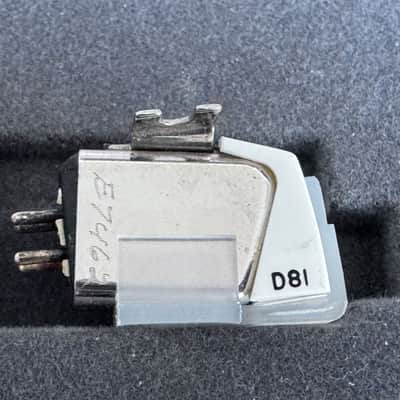

Serial number: E7462

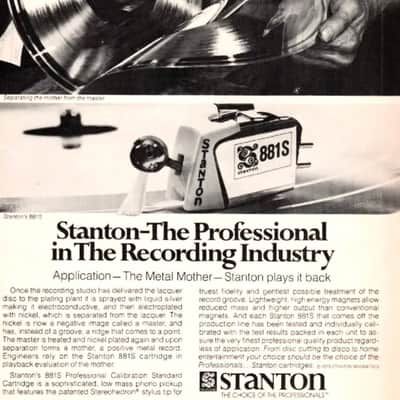

About Stanton 881S
/////////////////////////

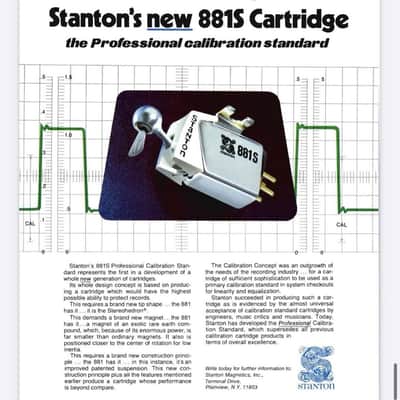

Stanton's 881S Professional Calibration Standard represents the first in a development of a whole ~ generation of cartridges. Its whole design concept is based on producing a cartridge which would have the highest possible ability to protect records.

This requires a brand new tip shape ... the 881 has it ... it is the Stereohedron®. This demands a brand new magnet .. . the 881 has it . .. a magnet of an exotic rare earth compound, which, because of its enormous power, is far smaller than ordinary magnets. It also is positioned closer to the center of rotation for low inertia.

This requires a brand new construction principie .. . the 881 has it .. . in this instance, it's an improved patented suspension. This new construction principle plus all the features mentioned earlier produce a cartridge whose performance is beyond compare.

The Calibration Concept was an outgrowth of the needs of the recording industry .. . for a cartridge of sufficient sophistication to be used as a primary calibration standard in system checkouts for linearity and equalization .

Stanton succeeded in producing such a cartridge as is evidenced by the almost universal acceptance of calibration standard cartridges by engineers, music critics and musicians.

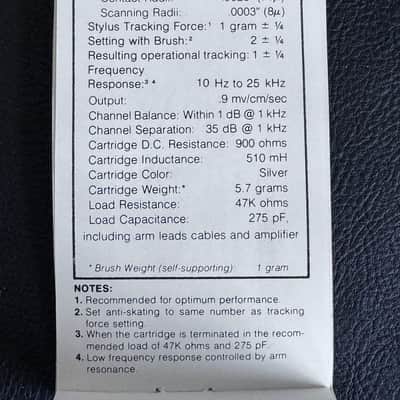

Specifications:
///////////////////

Stylus Type : Nude Stereohedron

Stylus Tracking Force : 1 gram ≤ 1⁄4

Setting with Brush: : 2+-1⁄4

Response : 10 Hz to 25 kHz (Individually calibrated to 20 kHz)

Output : 0.9 mV/cm/sec

Channel Balance : 1dB maximum difference @ 1 kHzChannel Separation : 35 dB

Ou Cartridge D. C. Resistance : 900 ohms

Cartridge Inductance : 510 mH

Load Resistance : 47K ohms

Load Capacitance : 275 pF including arm leads cables and amplifier

Replacement Stylus : D81S/ D81II-S
