JBL PRX815XLFW Module Amp Bucket Fully Working 100% 5094107-00X
This seller has not set a shipping cost for Slovenia. Please contact them to ask about shipping.
Rare Find
These don't show up often
Our users rate Reverb

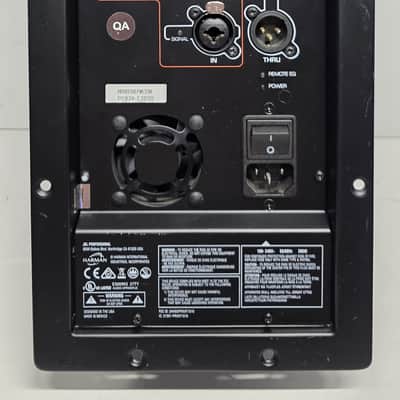

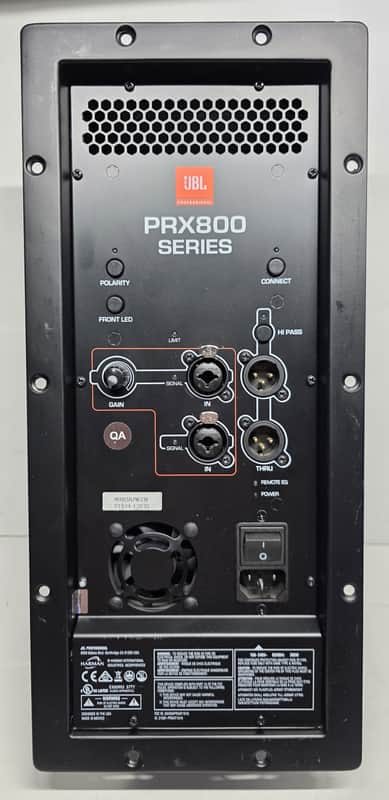

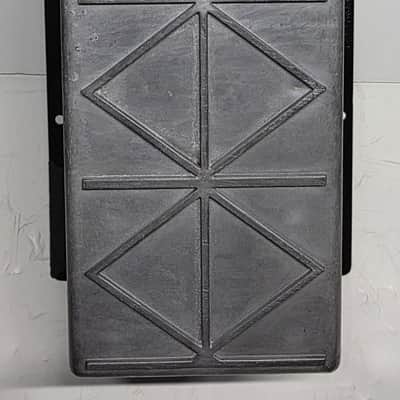

This is a fully working JBL PRX 815XLFW Amp Module.
Can be used as a replacement for your current JBL PRX cabinet or in custom made cabinet.
Dimensions of Module:
15" High
6 3/4" Wide
5" Deep
Cutout Dimensions:
5 1/2" Wide
13 3/4" High
Specs:
Inputs Two Balanced female XLR/ 1/4” combo connectors
Input Impedance 20K Ohms (balanced)
Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal presentPower: Blue indicates system has power and ready to pass audio.
Dynamic Control (Input) dbx Type IV™ limiter circuit
System Low Pass 80 Hz DSP
Loop out Crossover Frequency 80 Hz Digital 24db/octave Linkwitz-Riley Filter
Design Highly efficient Class-D amplifier
Power Rating 1500W
AC power input 100V - 240V ~ 50/60 Hz
Thanks For Looking !! !
