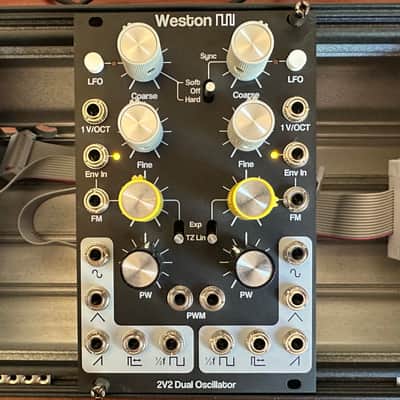

Weston Precision Audio 2V2 Dual Oscillator

Weston Precision Audio's 2V2 is a dual analog oscillator with through-zero FM, syncing, and tons of outputs. Using a pair of identical triangle core oscillators, the 2V2 is capable of sending out five simultaneous waveforms: sine, triangle, ramp, pulse, and a sub-octave square that is always an octave below the main outs.

In addition to being a very capable audio-rate oscillator, at the push of a button either side can be flipped to LFO mode. 2V2's FM inputs have a switch that can move it from exponential to linear through-zero modulation with an envelope input that lets you adjust how much modulation happens. VCO B features a switch that engages hard or soft sync to VCO A, opening up the creative possibilities for this fairly compact module. Engineered using temperature-compensated VCA modules, the 2V2 is incredibly stable even with ambient temperature changes, and each VCO can track over 7 octaves. Weston Precision Audio's 2V2 dual oscillator is a wonderful addition to anyone who wants thick tones or just a pair of analog oscillators in a compact package.

2V2 Features

• Two fully independent analog oscillators
• Through-zero and exponential modulation
• Hard or soft sync both oscillators together
• Each FM input has a VCA that shapes the FM depth via CV
• Five simultaneous outputs: sine, triangle, sawtooth, pulse, and suboctave
• PWM inputs

Product Details

• Eurorack module
• Width: 16hp
• Depth: 25mm
• Current draw: 115mA @ +12V, 85mA @ -12V
