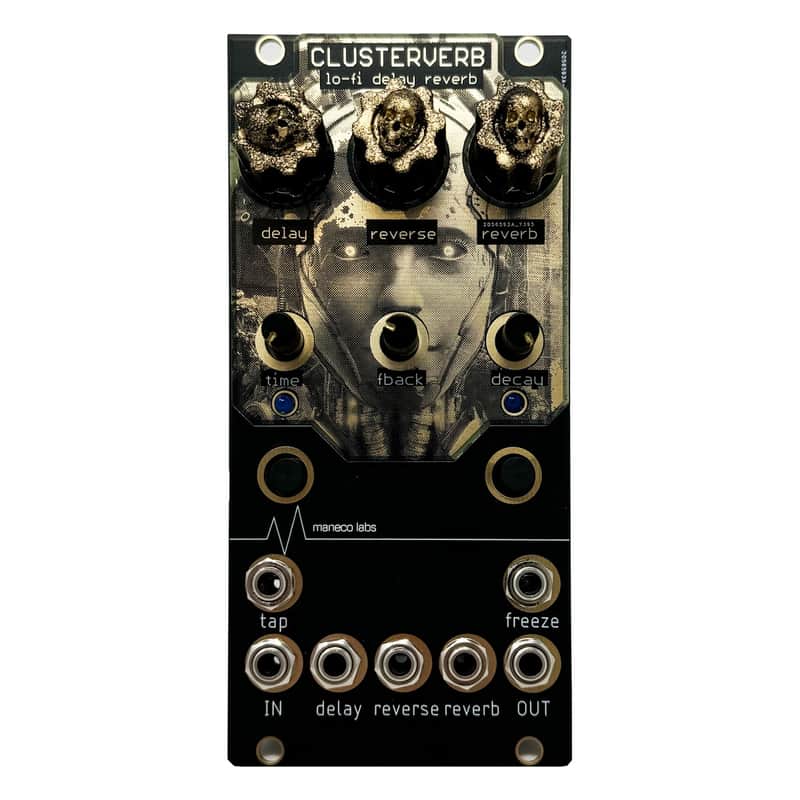

Maneco Clusterverb Eurorack Reverb Module

Manufacturer's description

Clusterverb is an effects processor combining three simultaneous sections — Reverse, Delay (with tap tempo), and Reverb (with freeze) — to create complex and immersive soundscapes. Despite its versatility, the module is intuitive and user-friendly.

Controls

• Delay Level: Adjusts the blend between the reverse component (previous stage) and the delayed output.
• Delay Time: Sets the speed of delay repetitions. Works with the tap tempo button, featuring a blinking LED for visual timing feedback.
• Delay Feedback: Controls the number of repetitions, ranging from a single echo to a sustained loop at high values.
• Reverse: Balances the dry input signal with the reversed component. Ranges from fully dry to 100% reversed.
• Reverb: Adjusts the balance between the reverse and delay stages and the reverb effect. Ranges from no reverb (dry) to 100% wet.
• Decay: Sets the size and decay of the reverb effect. Ranges from small chambers to vast atmospheric sounds.
• Momentary Touch Switches:
• Tap Tempo: For controlling delay timing.
• Reverb Freeze: Engages a hold function for the reverb.

Connections

• Input/Output Jacks:
• Signal Input: For external audio processing.
• Signal Output: Sends the processed signal.
• CV Control Inputs:
• Provides external control for delay, reverse, and reverb levels.
• Remote Trigger Inputs:
• Enables external triggering for tap tempo and reverb freeze functions.
