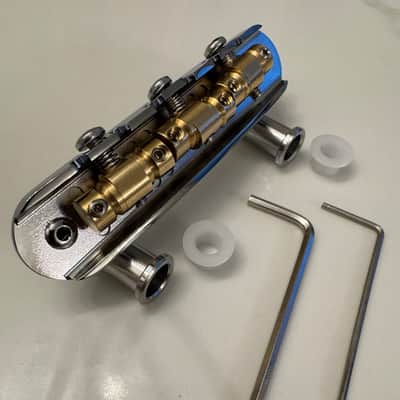

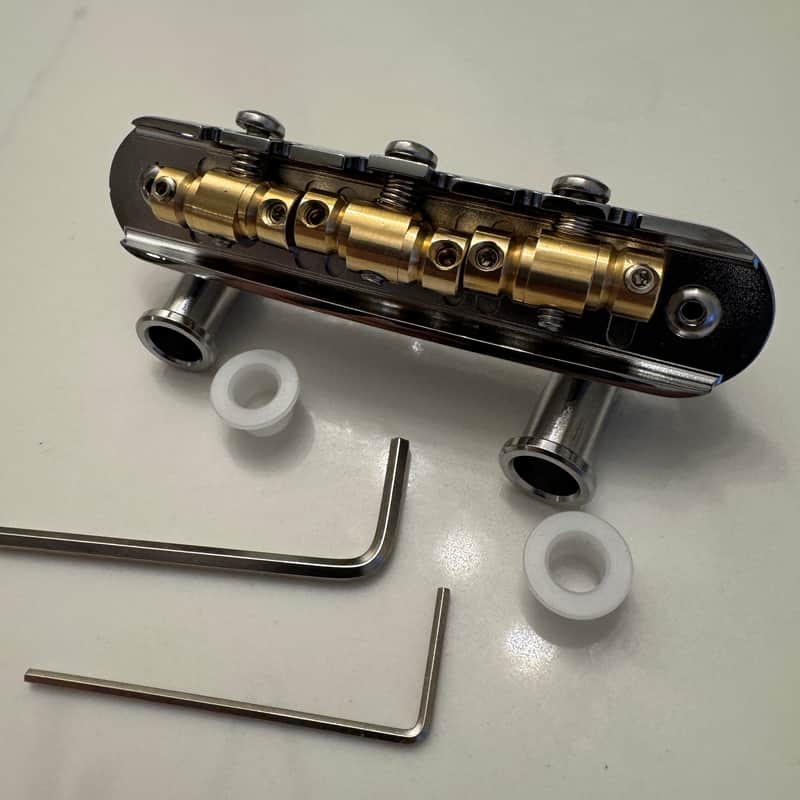

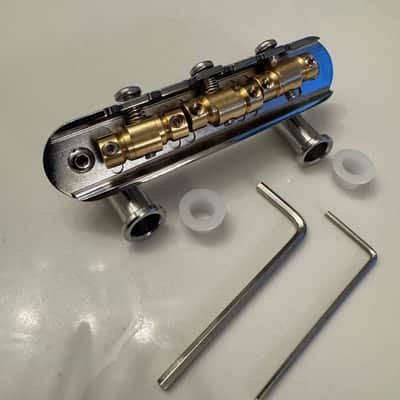

The Overpass “Goliath” Chrome Plated Brass Bridge with USA made Custom Raw Brass Saddles for Fender / Squier Jazzmaster / Jaguar / Mustang / Offset Guitar

“The Goliath” High Mass Solid Brass Block bridge, now offered with USA Made Compensated are Brass Saddles! The milling on these is TIGHT! No lateral movement on these saddles!

This is a premium, precision machined drop-in replacement bridge for offset guitars designed to permanently eliminate common rattle, buzzing, and tuning instability issues.

The grooves for the strings is deep and should minimize or eliminate any skipping.

Key Features

• Saddle Material: Compensated Raw Brass Saddles precision crafted in the USA
• Saddle Profile: Compensated deep string grooves for improved intonation across the fretboard .
• Adjustment Access: Phillips head intonation screws are easily accessible in between the strings for quick adjustments.
• Stability System: Includes two fixed Nylon Rock-Stop Sleeves. Eliminates side-to-side bridge movement and rattle.
• Quality Control: Every unit is inspected in the USA for thread integrity and finish quality.


Technical Measurements

• String Spacing: 53mm
• Post Spacing: 73mm. Standard offset guitar thimble spacing.
• Post Diameter: 9mm. Fits most modern Fender and Squier thimbles.
  Material: Plated Brass Body, Steel Posts. Chrome finish.
• Compatibility: Direct fit for most Fender/Squier Jazzmaster, Jaguar, and Mustang models.


NOTE: This bridge has been tested and confirmed as a “drop in fit” for Squier Classic Vibe Series Jazzmaster, Squier Classic Vibe Jaguar, Fender Vintera II Jazzmaster, MIJ mid/late 90’s JM66 Jazzmaster, Fender American Professional II Jazzmaster, American Pro Classic, I cannot guarantee fitment to any other model at this time. As I get sales, I will update from customer reports. I suspect it will drop it to most/all with the exception of offsets that use tune-o-matic /adjustomatic bridges. The legs can be removed with included hex wrench, and might actually work in those situations but have not been tested. See last image.

What’s Included

• 1x High Mass Solid Brass Bridge
• 2x Fixed Post Sleeves
• 2x 9mm Thimbles
• 1x Hex Key for Saddle Height Adjustment
• 1x Hex Key for Post Attachments
