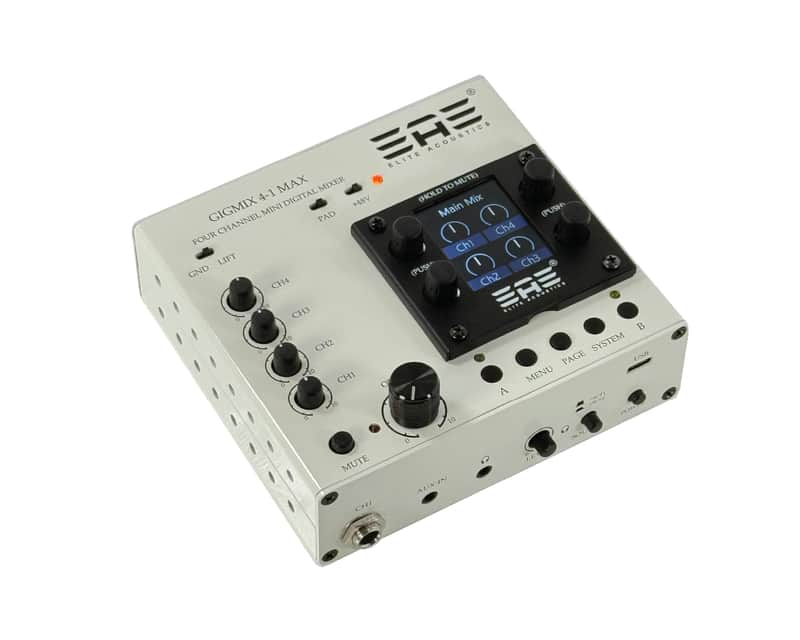

Elite Acoustics EAE GigMix 4-1 MAX (Open Box) mini Digital Mixer with 4 Input channels/Reverb/Delay

GigMix 4-1 MAX mini Digital mixer, porting the engine from the StompMix 4, the GigMix 4-1 MAX is built with a powerful 32-bit 100Mhz DSP engine and a compact lightweight pocket size package.  The GigMix 4-1 MAX mini digital mixer offers a full featured, highly intuitive four channels Digital Mixer with a Color Display.  4 effects level control for Reverb and Shimmer.  Assignable Delay effects.  The DSP engine provides a compressor, Gate, Mid sweepable EQ, Highpass Filter, Notch Filter, Phase reverse to each of the 4 inputs. Analog inputs consisted of 1 Class A solid-state Mic pre-amps and three 1/4″ TS line/Instrument inputs.  Two sets of stereo Mix outputs are selectable between a 1/4″ TRS jack and 2 XLR jacks with output level control knob .  2  assignable switches.  10 Memory for easy recall and set up. Mic Stand mounting accessory is also available.  The size/functionalities of the Gigmix 4-1  MAX mini digital mixer makes it the great pocket live gig mixer to your guitar/vocal setup.

Microphone Stand Mounting Hardware is sold separately.

GigMix 4-1 MAX Features

• 4-Channel Mini Digital Mixer
• 10 user scene memories.
• Color display
• Input Level Monitoring
• 1 Class-A Mic inputs with TRIM (CHAN 2) with +48V and PAD
• 3 LINE/INSRT inputs with Level Control(CHAN 1, 3 and 4)
• Independent Reverb, Shimmer effect on each channel
• 2 notch filter available on each channel
• High Pass Filter and Phase Reverse on each channel
• Noise Gate and Compressor on each channel
• 3 Band EQ with Sweepable MID on each channel
• Max 1 second Delay with Tap Tempo (assign to one Channel at a time)
• Assignable A/B switch functions (MUTE channels, EFX by-pass, Tap Tempo, Scene change etc)
• Output 1 (L/R XLR jacks) – Balanced – with Level Control and MUTE and GND LIFT
• Output 2 (L/R TRS 1/4″ jack)
• Headphone Output (Selectable “Out1 or Out2” with Level Control)
• 1/8″ Stereo AUX input.
• Main MIX and AUX MIX
• Scenes Change  – via A/B switches
• Metal chassis
• Power Switch
• AC/DC power supply included
• 12VDC power inputs (500mA, 2.1mm *Center Positive*)
• Designed and assembled in USA
