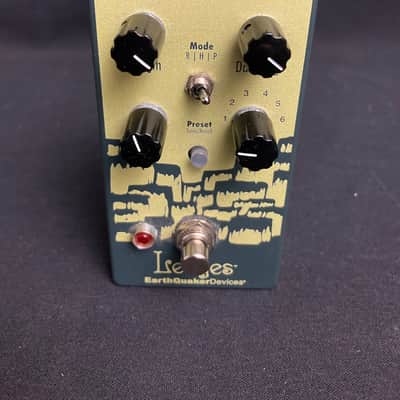

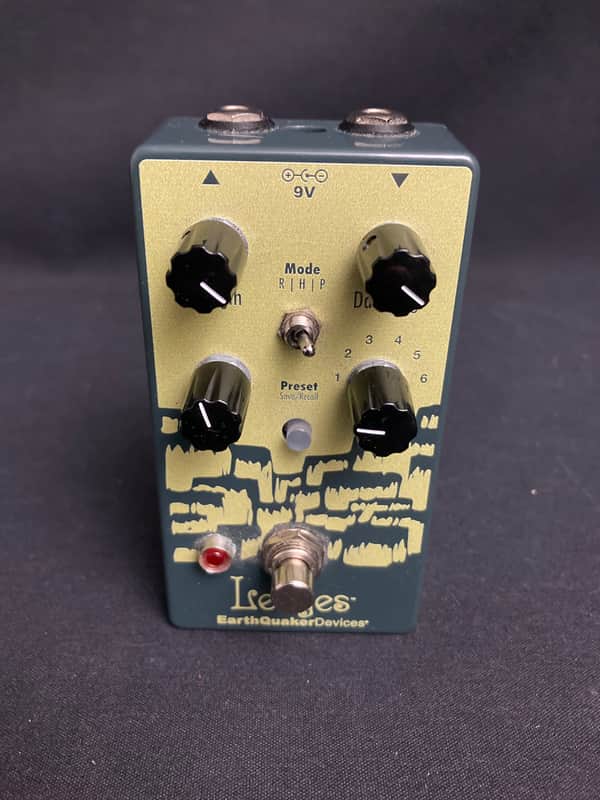

EarthQuaker Devices Ledges Tri-Dimensional Reverberation Machine Pedal in excellent condition.

Description from EarthQuaker Devices:

Ledges is a compact, three-mode reverb with the ability to save and recall six presets and user-assignable expression control with loads of customizable options. If you’re craving that warm, lush reverb tone from the players and songs you love, then this is your pedal. If you want to push the limits and take it further to sonic reaches that only you can uncover, then this is also your pedal. It’s everything you’ve ever wanted and needed out of a reverb.

We created Ledges for no-nonsense musicians who need access to a wide variety of fantastic sounds and don’t want to mess with menu diving, extra footswitches, or midi controllers. Ledges offers three distinct, rich reverbs that cover all your bases - Room, Hall and the almost infinitely regenerating Plate - with user assignable expression control and six presets to easily switch between settings. Presets can even save expression pedal assignments, making it easier than ever to save and switch between the 6 best reverb sounds that are yours and yours alone.

Ledges has three unique reverb modes: Room, Hall and Plate. Each mode uses a different algorithm, tuned to give specific spatial qualities, while still sitting perfectly in the mix. We steered clear of any tones that were harsh or muddy.

Length: Sets the length of the reverb.

Mix: Adjusts the level of the reverb.

Damping: Tames the treble in the reverb reflections.

Presets: Ledges has six available preset slots for you to save and recall your favorite settings. The settings for each of the three controls, the mode switch and the expression jack assignment can be saved and recalled in any of the slots.

Specs:

• Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
• Current Draw: 80 mA
• Input Impedance: 1 MΩ
• Output Impedance: 100 Ω
• TRS expression pedal wiring: Tip: Wiper / Ring: +3.3V / Sleeve: Ground
• Flexi-Switch® Technology: This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.
  • For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.
  • For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.
  Ledges is buffered bypass with tails. Power is required to pass signal.
• Power: This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
• Artwork: Artwork by Matt Horak
