The Cornerstone Imperium is a dual overdrive pedal that combines two distinct circuits: the Gladio SC and the Antique. Designed to blend the smooth, touch-sensitive characteristics of a John Mayer-style screamer with the dynamic richness of a Robben Ford-inspired Dumble tone, the Imperium allows users to operate each channel independently or stack them for more complex textures. The pedal features a dedicated CLEAN control on the Gladio side, which reintroduces the clean signal into the output path without compressing or filtering it, enhancing note articulation and bottom-end presence. On the Antique side, a PRESENCE knob shapes the high-mid and treble response after the clipping stage, offering a fine degree of tonal clarity and edge.

Imperium V2 includes four independent I/O jacks, providing flexible routing options and the ability to insert effects between the two channels or reorder their stacking configuration. Switching functions include normal on/off per channel, Direct Stack mode for simultaneous activation, and Flip Flop mode for toggling between channels. Each circuit is voiced to work either standalone or in combination, delivering a range from subtle drive to saturated lead tones with sustain and harmonic depth. All controls are responsive to pick dynamics, making the Imperium a versatile tool for expressive playing across blues, fusion, and rock contexts.

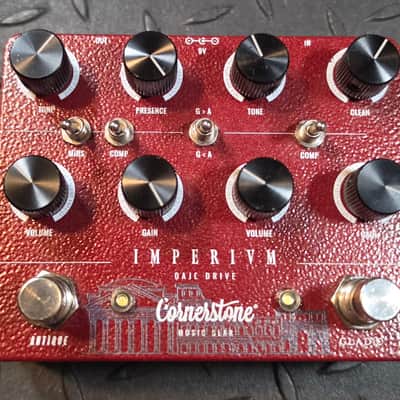

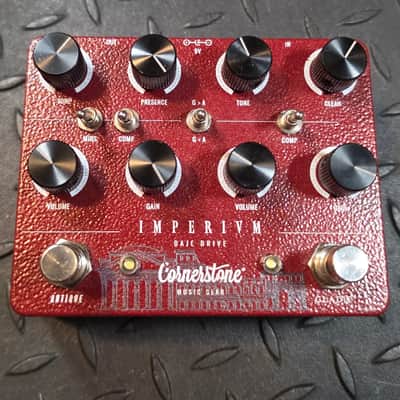

Controls

Gladio Side

• Clean: Mixes clean input signal back with overdriven output.
• Tone: Shapes EQ; flat at noon, warm/round below, brilliant/edgy above.
• Volume: Sets output level; unity at 40% rotation.
• Gain: Controls amount of overdrive.
• Comp: Adjusts compression amount.

Antique Side

• Tone: Adjusts low mids; CCW increases bottom end without muddiness.
• Presence: Adjusts high mids and treble; CW increases brightness and clarity.
• Volume: Sets output level; unity at 50% rotation.
• Gain: Controls amount of overdrive.
• Comp: Adjusts compression amount.

Shared

• Stacking Switch: Routes signal from Antique into Gladio or vice versa.

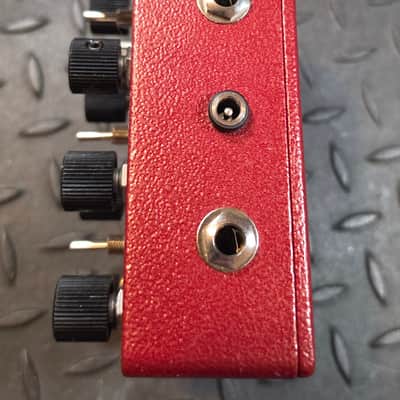

Connections

• Independent Input and Output for Gladio circuit
• Independent Input and Output for Antique circuit

Technical Specifications

• Current Consumption: 100mA
• Input Impedance: 510k
• Output Impedance: 10k
• Dimensions: 4.7 in x 3.7 in x 1.66 in (119 mm x 94 mm x 42 mm)
• Weight: 0.5 kg

Highlights

• Combines Gladio SC and Antique circuits in a single enclosure
• Independent channel control and stacking configurations
• Clean blend function for enhanced articulation and dynamics
• Presence control for post-clipping high-frequency shaping
• Four I/O jacks for flexible routing and switcher integration
• Switching modes: Normal, Direct Stack, Flip Flop
