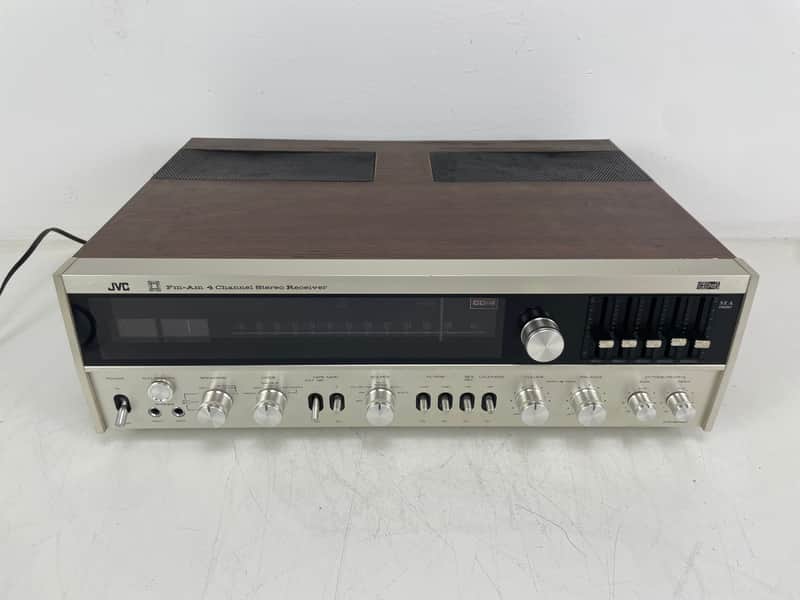

JVC - 4VR-54 4 6X - CD-4 Quadraphonic - 4 Channel Stereo Receiver - Serviced (Repaired)
Our users rate Reverb
For sale: a JVC 4VR-54 4/6X CD-4 4-channel stereo receiver, a classic quadraphonic-era amplifier.
BTL is a JVC original. With it you can play back 2-channel stereo with double power.
This is done by linking the power amplifiers so that when you are playing 2-channel sound two of the power amplifiers do not remain idle; by internal connection they are reconnected so that each of the two channels passes through two power amplifiers.
The 4VR-5456X is ready for the day when FM discrete 4-channel broadcasting starts.
At the moment some 2-channel FM broadcasts are made in matrix 4-channel formats; these can be heard as 4-channel by selecting the appropriate matrix decoder with the mode selector.
When 4-channel FM broadcasting starts, connect a demodulator to the jacks on the rear panel, remove the plate holding the FM 4-channel switch in its off position and switch on.

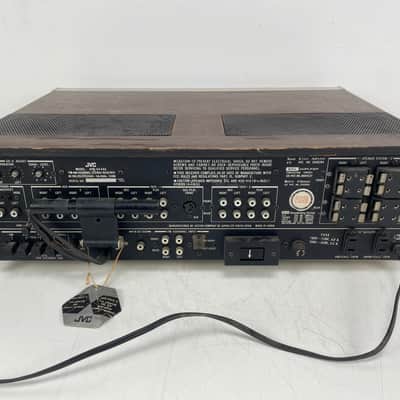

Connect the FM DET OUT jack on the rear panel to the demodulators input jack and the demodulator's output jacks to the FM 4-channel input jacks.
''Due to the weight being 20/30KG or above, please ask us for a shipping quote before buying to get the best rates and options, currently shown shipping is estimated''
Cosmetic condition:
The unit is in used vintage condition with visible cosmetic wear.

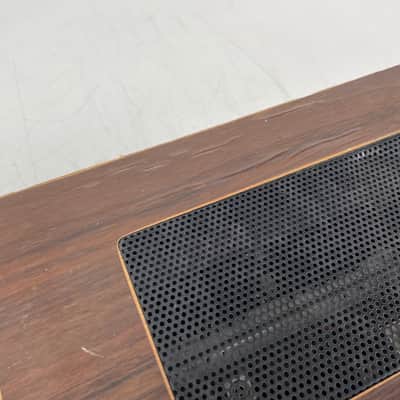

- Vinyl wrap on top is slightly lifting
- One vent panel is dented
- Side panels show scratches
- Overall structure remains solid
?? Functional status:
? Fully working
? FM transistor replaced
? Source selector switch repaired
? Tested and operational after service
Service Performed:
- FM transistor replaced
- Source selector switch repaired
- Full functional testing completed
- Basic operational check of all inputs and outputs
Specs:
- Tuning range: FM, MW
- Power output: 100W/ch (stereo), 43W/ch into 8? (quadraphonic)
- Frequency response: 10Hz to 50kHz
- Total harmonic distortion: 0.5%
- Damping factor: 40
- Input sensitivity: 3mV (MM), 150mV (line)
- Signal to noise ratio: 70dB (MM), 75dB (line)
- Output: 150mV (line)
- Speaker load impedance: 4? to 16?
Dimensions (LxWxH): 180 x 513 x 405mm
Weight: 18 Kg
Volts: 110-240v (If it’s 200V or higher, you’ll need an adapter in the USA)
We ship worldwide.
For international shipping, import fee's apply. These vary per countrie, and are for the buyer to pay.
-Shipping in the EU up to 30 KG (max)
-Shipping outside of the EU up to 20 KG (max) Shown costs might vary. Please ask us for a shipping quote for the best rates!
Please note: ‘’Whenever an item exceeds the weight noted above. Please ask for a shipping quote before making a purchase. The shipping costs are estimated in our shop because we do not know the shipping address.
Picking up the item is also possible. It can be picked up in Alkmaar
Delivery by us is also possible in some cases. Please reach out to us for more information about deliveries
State of listing: If a listing is listed ''for parts or not working'' returns are not accepted.
When we offer our products with the notice ''Serviced'' or ''Fully serviced'' that means the device is either ''serviced'' with a new belt, and cleaned the pots, Or ''Fully serviced'' recapped, Quiescent current adjusted etc as expected from a full service
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
