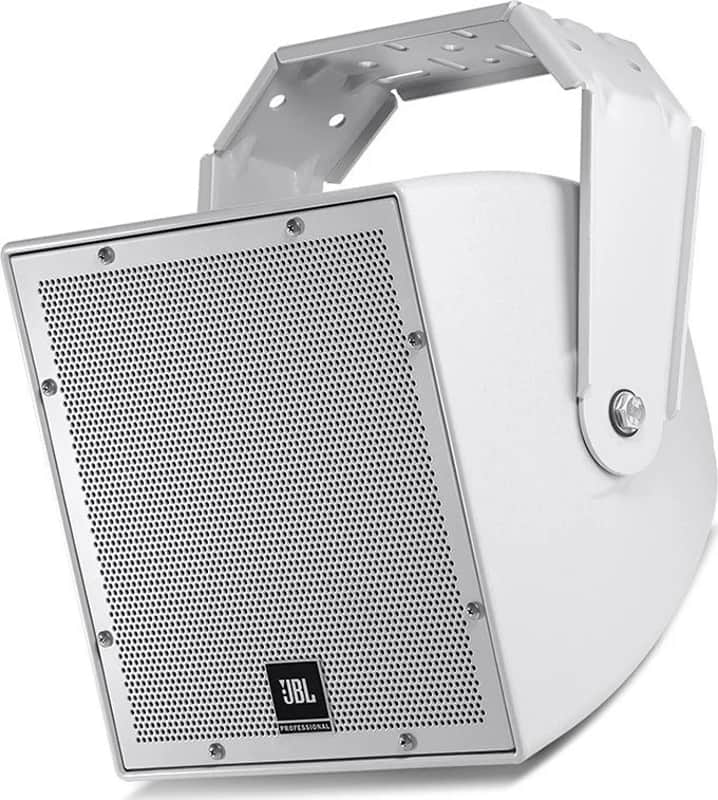

The AWC82 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

Frequency Range (-10 dB) : 80 Hz – 20 kHz

Frequency Response (±3 dB) : 100 Hz – 20 kHz

Coverage Pattern : 120° x 120°

Directivity Factor (Q) : 8.1 (1 k – 16 kHz)

Directivity Index (DI) : 8.4 dB (1 k – 16 kHz)

Long-Term System Power Rating (IEC) : 250 W 2 hrs.
200 W 100 hrs

Sensitivity (2.83V @ 1m) : 94 dB (Ave. 100 Hz – 20 kHz)

Maximum SPL : Direct 8 : 118 dB (peaks of 124 dB)
200 W Tap: 117 dB

Nominal Impedance : 8 ohms

Transformer Taps : 70V: 200W, 100W, 50W, 25W
100V: 200W, 100W, 50W

Attachment : Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.

Grille : Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.

Input Connection : CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")

Environmental : IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).

Dimensions : 300 x 300 x305 mm (11.8 x 11.8 x 12.0), cabinet
331 mm (13.0 in) including gland nut
359 mm (14.2 in) including bracket extending
to back

Net Weight : 9.8 kg (21.5 lb), 11.6 kg (25.5 lb) with U-bracket

Shipping Weight : 14.1 kg (31.0 lb)

Included Accessories : U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.

Features:

Highly weather-resistant IP56 rating
Consistent 120° x 120° broadband pattern control
Extraordinary clarity for speech, with extended frequency response for music.
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
250 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
High-power passive crossover network.
Overload Protection
80 Hz – 20 kHz frequency response.
200 Watt 70V/100V multi-tap (built-in transformer) direct 8 low-impedance.
