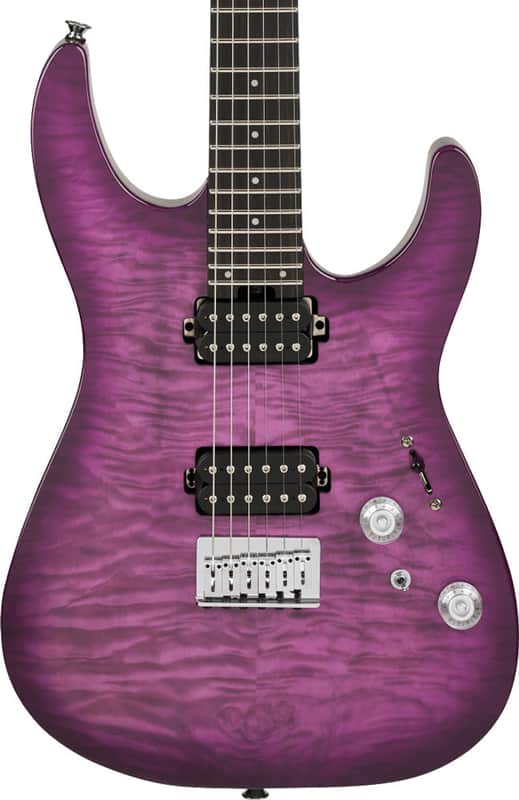

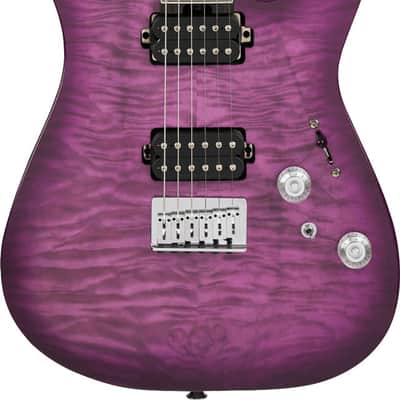

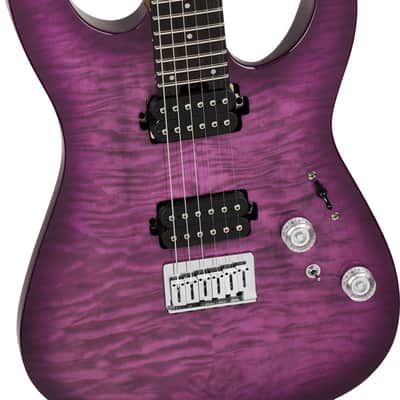

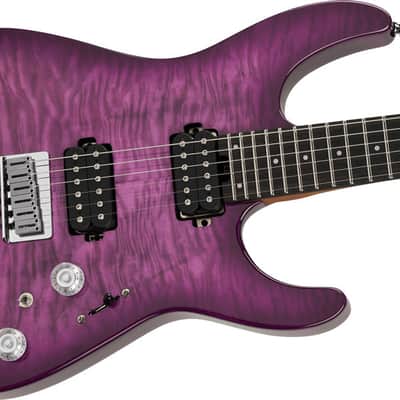

Loaded with premium features, this Pro-Mod Plus Dinky DK24 HT model features a sleek Dinky body constructed from basswood with a quilt maple top, sculpted shredder's cut heel and scalloped lower back bout for seamless access to the upper registers. The bolt-on caramelized maple neck features graphite reinforcement for rock-solid stability, a satin natural finish on the back of the neck for sublime playability, and a conveniently located heel-mount truss rod adjustment wheel for neck relief tweaks on the fly. Designed for speed, the 12"-16" compound radius ebony fingerboard features comfortable rolled edges, 24 stainless steel jumbo frets and Luminlay side-dots for enhanced visibility in low-light conditions.

This axe features an HH pickup configuration consisting of a direct mount Seymour Duncan Full Shred TB-10 bridge pickup and direct mount Seymour Duncan Alnico Pro II APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.

Other premium modern features include a five-way blade pickup switch, speed knobs for the volume and no-load tone controls, Charvel HT6 string-through-body hardtail bridge, Charvel-branded die-cast locking tuners and more.

Blending sophisticated style with assertive tone, the Pro-Mod Plus Dinky DK24 HT HH E delivers premium performance and modern features.

Features

• 25.5" scale length

• Basswood Dinky® body with quilt maple top

• Scalloped lower back bout

• Bolt-on maple neck with graphite reinforcement

• Sculpted shredder's cut heel

• 12"-16" compound radius ebony fingerboard with 24 jumbo stainless steel frets

• Heel-mount truss rod adjustment wheel

• Direct mount Seymour Duncan® Full Shred™ TB-10 humbucking bridge and Seymour
• Duncan Alnico II Pro™ APH-1N humbucking neck pickups

• Five-way blade switch, volume control and no-load tone control

• Charvel® HT6 string-through-body hardtail bridge

• Charvel-branded die-cast locking tuners

• Included deluxe gig bag



General

Series:  Pro-Mod Plus
Orientation:  Right-Hand
Color:  Violet Radiance
Country Of Origin:  ID

Neck
Headstock:  Licensed Fender® Stratocaster®
Neck Material:  Caramelized Maple
Neck Finish:  Natural Satin
Neck Shape:  Speed Neck with Rolled Fingerboard Edges
Neck Construction:  Bolt-On with Graphite Reinforcement
Fingerboard Radius:  12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material:  Ebony
Position Inlays:  4mm Pearloid Dot
Side Dots:  Luminlay®
Number of Frets:  24
Truss Rod:  Dual-Action with Wheel
Truss Rod Nut:  Heel-Mount Truss Rod Adjustment Wheel
String Nut:  Graph Tech TUSQ XL
Nut Width:  1.6875" (42.86 mm)
Nut Material:  Graph Tech TUSQ XL
Fret Size:  Jumbo Stainless Steel
Scale Length:  25.5" (648 mm)

Body
Body:  Basswood
Body Finish:  Gloss
Body Shape:  Dinky®
Body Top:  Quilt Maple
Body Style:  Solid Body
Body Material:  Basswood

Hardware
Bridge:  Charvel® HT6 String-Through-Body Hardtail
Pickguard:  None
Pickup Covers:  Black
Control Knobs:  Speed Knob
Switch Tip:  Black
Hardware Finish:  Chrome
Tuning Machines:  Charvel®-Branded Die-Cast Locking
String Trees:  Fender® Standard String Guide
Strings:  Nickel Plated Steel (.009-.042 Gauges)
Neck Plate:  None - 4-Bolt Sculpted Heel
Strap Buttons:  Standard

Electronics
Bridge Pickup:  Seymour Duncan® Full Shred™ TB-10
Neck Pickup:  Seymour Duncan® Alnico II Pro™ APH-1N
Pickup Configuration:  HH
Controls:  Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
Switching:  5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil, Position 3. Both Inner Coils, Position 4. Neck Inner Coil, Position 5. Full Neck Pickup
Auxiliary Switching:  2-Position Mini Toggle Down/All Series, Up/All Parallel

Measurements
Shipping Dimensions:  4.00x21.00x50.00 IN
Shipping Weight:  17.19 LB
Shipping Length:  50.00 IN
Shipping Height:  4.00 IN
Shipping Width:  21.00 IN
