🧠 Processing & Modeling

• Dual‑DSP SHARC engine for high‑resolution amp/effect modeling.
• HX Modeling recreates analog amp, cab, mic, and pedal behavior with component‑level accuracy.
• Amp/Cab/Mic Models: 100+ (latest firmware).
• Effects: 200+ (Helix + Legacy), with up to 32 simultaneous FX depending on DSP load.
• Snapshots: Up to 8 variations per preset with seamless switching.

🖥️ Interface & Controls

• 6.2" color LCD (800×480‑pixel class).
• 12 capacitive‑touch footswitches with customizable scribble strips and color‑coded LED rings.
• Hands‑free Pedal Edit Mode for on‑the‑fly editing.

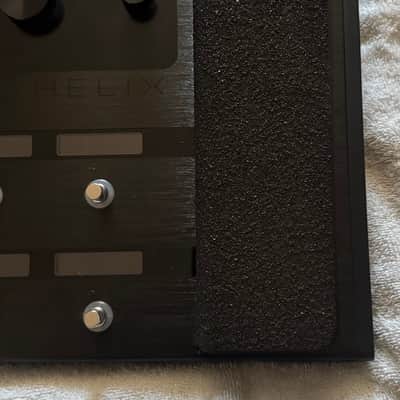

• Integrated expression pedal + inputs for two additional expression pedals.

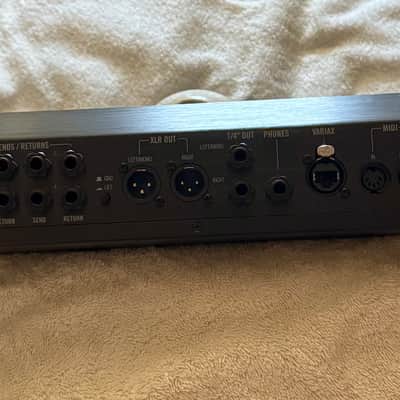

🔌 I/O Configuration

Inputs:

• 1× 1/4" Guitar In
• 1× 1/4" Aux In
• 1× XLR Mic In
• 4× FX Returns
• 2× Expression inputs
• 1× Ext Amp
• 1× CV input/output

Outputs:

• 2× 1/4" main outs
• 2× XLR outs
• 4× FX Sends
• 1× 1/4" headphone out
• Digital: S/PDIF, AES/EBU, L6 Link
• USB Type‑B (8‑in/8‑out audio interface)

MIDI: In / Out / Thru Power: Standard IEC AC cable

🎛️ Routing & Performance

• Four stereo signal paths for complex routing.
• Third‑party IR loading supported.
• Looper: 60 seconds mono / 30 seconds stereo.
• 1024 presets (8 setlists × 32 banks × 4 presets).

📏 Physical Specs

• Dimensions: 22.05" × 11.85" × 3.58"
• Weight: ~14.6–14.7 lbs
