INTELLIJEL TRIATT EURORACK TRIPLE ATTENUATOR/ATTENUVERTER

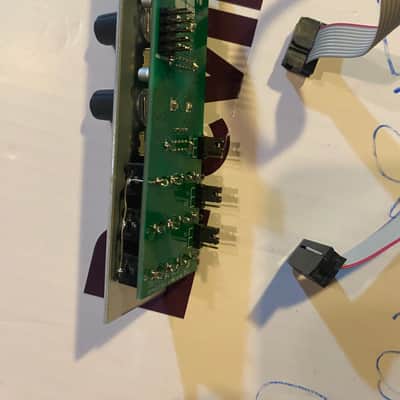

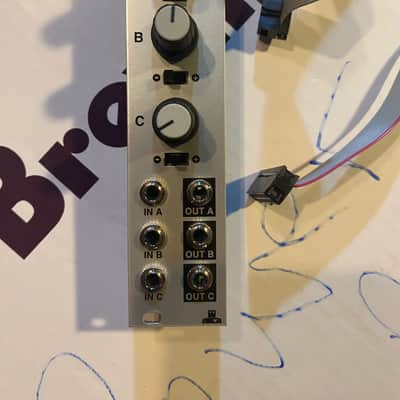

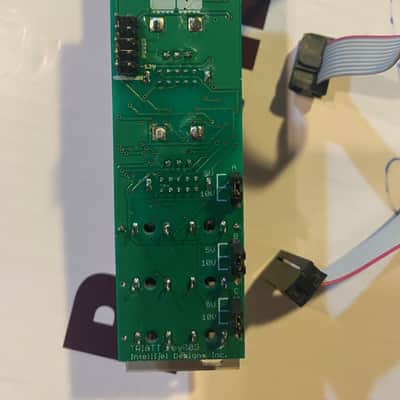

This Intellijel Triatt is essentially new and unused. It is a 6HP, 3-channel utility module designed for attenuating, inverting, and mixing signals (both CV and audio). This original version is characterized by its three Channels with each selectively acting as an attenuator, inverter, or attenuverter. Each channel has a switch to select between modes (Unipolar/Positive, Bipolar/Attenuverter, and Inverting Attenuator). When no cable is plugged into an input, the channel acts as a DC voltage source (0 to +5V or -5V to +5V, depending on the switch setting). The outputs are normalled to mix into the channel below, allowing the bottom output to act as a master mix of all three channels. The rear of the module has jumpers that allow you to change the internal normalization from 5V to 10V. The Triatt is sought after for its unique 3-position switch per channel: Right: Regular attenuator; Middle: Bipolar Attenuverter; and Left: Inverting attenuator. 6 HP Width. 24mm Depth. Current Draw: 16 mA @ +12V, 14 mA @ -12V.
SHIPPING WITHIN THE CONTINENTAL U.S. ONLY
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Listed | a month ago |
|---|---|
| Condition | Excellent (Used) Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more |
| Brand | |
| Model |
|
| Categories | |
| Synth Module Function |
|
| Horizontal Pitch |
|
| Modular Synth Format |
|
