Description

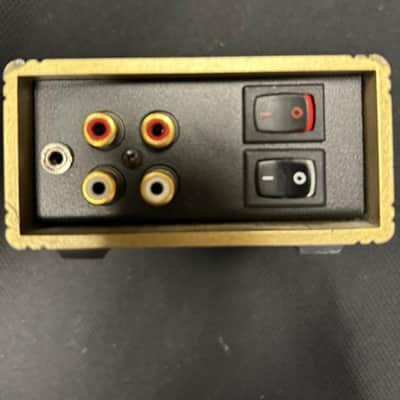

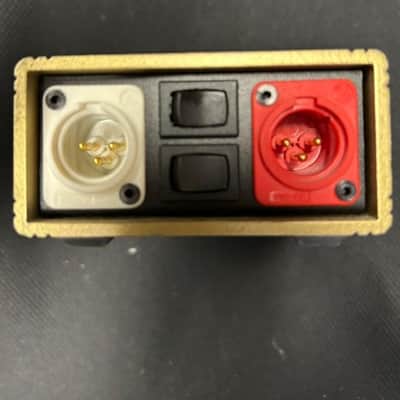

This unit contains two separate DIs - input your signals with one 3.5mm (1/8") mini TRS stereo jack, two sets of color coded RCA phono type input and through jacks or 1/4" TS input jacks. Output is via corresponding color coded XLRs.

Product Features

• 1/4" TS input jacks
• 20dB pad switch for connection to "hot" input signals
• 3.5 mm input jack
• Color coded RCA phono in / through jacks
• Color coded XLR output jacks
• Ground Lift switch to help eliminate hum and buzz
• Stereo/Mono switch for stereo operation or safely combine both inputs into a mono signal sent to both outputs
• Uses Whirlwind's TRHL-M transformers with metal shield
• 1 x Whirlwind pcDI Direct Box for Interfacing Outputs CD Players, Sound Cards, iPod MP3 Players
• 1 x Geartree Branded Polish Cloth
• UPC: 607595975111
• Type: DI
• Inputs: 1/4"
• Number of Inputs: 4

Attributes

• Color (X): Gold

Included Items

[1x] Whirlwind pcDI Multi-Media Dual Passive Direct Box

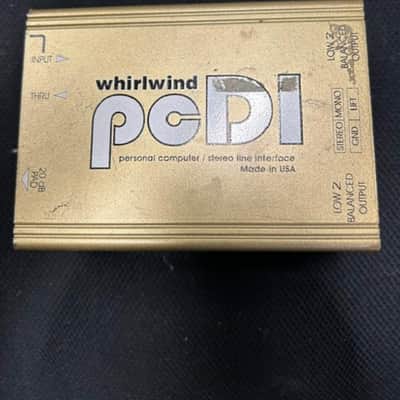

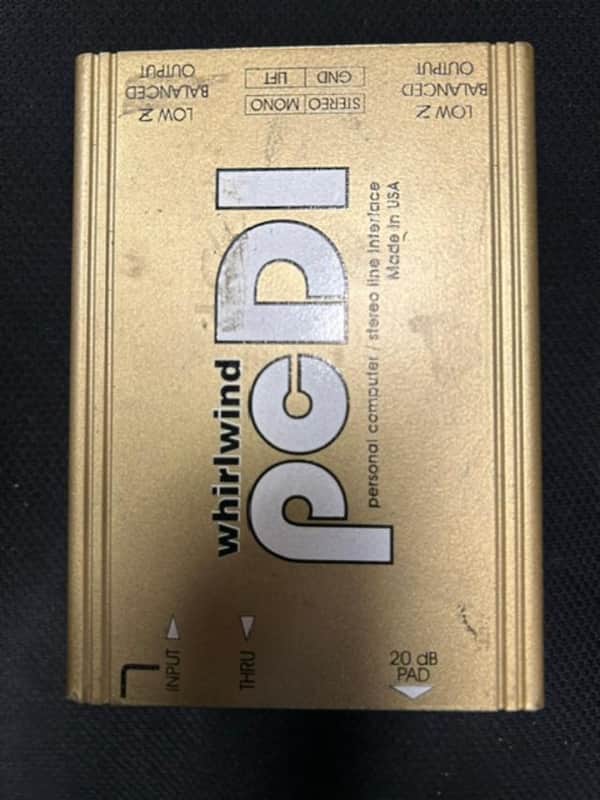

The pcDI from Whirlwind is a dual-channel direct box with RCA phono, 3.5mm TRS stereo, and 1/4" TS connectors, designed to interface unbalanced stereo line sources with professional, balanced low-impedance equipment. Output is via corresponding color-coded XLRs.The pcDI features a ground-lift switch per channel to help eliminate hum, a 20 dB pad switch for connecting "hot" signals and is perfect for interfacing the outputs of CD players, computer sound cards, MP3 players, etc. A stereo/mono switch allows for stereo operation or for combining both inputs into a mono signal that is sent to both outputs.

Technical Specifications

• Features: Ground Lift
• Active/Passive: Passive
• # of Channels: 2
• Dimensions: 2" H x 6.9" W x 7.1" L
• Inputs: 2 x RCA, 1 x 1/8" TRS
• Outputs: 2 x XLR, 2 x RCA thru
• dB Pad: -20dB
