Crafted from alder, the body is coupled with a bolt-on maple neck featuring a pair of graphite reinforcement rods to resist bending and warping under environmental stresses. The speed neck profile is designed for lightning fast playing and completely unhindered position shifts, while the comfortably rolled fingerboard edges provide the broken-in feel of an instrument with plenty of playing miles on it, and plenty more to go. Perfect for faster tempos, the 12"-16" compound radius ebony fingerboard hosts 22 jumbo frets and white dot inlays. For regularly touring musicians, a heel-mount truss rod adjust thumbwheel is a must, allowing for quick and convenient neck relief tweaks.

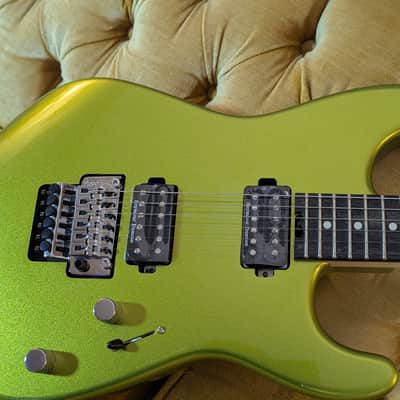

High-output Seymour Duncan® JB and Seymour Duncan '59™ humbucking pickups are directly mounted to the body, cranking out high octane rock 'n' roll tone with plenty of sweet overtones. The volume control conceals a push/pull coil split to have even more tonal variations on tap while the no-load tone control operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound that lets the full natural voice of the guitar shine through. Dive to rumbling depths or add a well-placed rising harmonic without sacrificing your tuning with the Floyd Rose® 1000 Series double-locking tremolo bridge system.

FEATURES

  • 25.5" scale length
  • Alder body
  • Bolt-on maple neck with graphite reinforcement and hand-rubbed satin urethane finish on the back
  • 12"-16" compound radius ebony fingerboard with 22 jumbo frets and white dot inlays
  • Heel-mount truss rod adjustment wheel
  • Direct mount Seymour Duncan® JB™ TB-4 humbucking bridge and Seymour Duncan '59™ SH-1N humbucking neck pickups
  • Three-way pickup blade switch, volume control with (push/pull coil split) and no-load tone control
  • Floyd Rose® 1000 Series double-locking tremolo bridge system

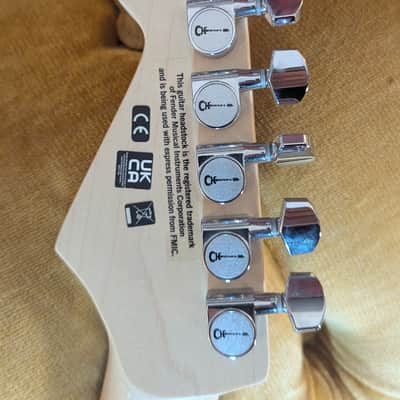

  • Charvel®-branded sealed die-cast tuners, Charvel neck plate and standard strap buttons
  • Available in Lime Green Metallic with chrome hardware, or in Miami Blue with gold hardware



SERIES-Pro-Mod

ORIENTATION-Right-Hand

COLOR-Lime Green Metallic

COUNTRY OF ORIGIN-MX


Neck

HEADSTOCK-Licensed Fender® Stratocaster®

NECK MATERIAL-Maple

NECK FINISH-Hand-Rubbed Satin Urethane

NECK SHAPE-Speed Neck with Rolled Fingerboard Edges

NECK CONSTRUCTION-Bolt-On with Graphite Reinforcement

FINGERBOARD RADIUS-12"-16" Compound Radius (304.8 mm to 406.4 mm)

FINGERBOARD MATERIAL-Ebony

POSITION INLAYS-White Dot

SIDE DOTS-White

NUMBER OF FRETS-22

TRUSS ROD-Dual-Action with Wheel

TRUSS ROD NUT-Heel-Mount Truss Rod Adjustment Wheel

STRING NUT-Floyd Rose® 1000 Series Locking

NUT WIDTH-1.6875" (42.86 mm)

NUT MATERIAL-Floyd Rose® 1000 Series Locking


Body

BODY-Alder

BODY FINISH-Gloss

BODY SHAPE-San Dimas® Style 1

BODY STYLE-Solid Body

BODY MATERIAL-Alder


Measurements

DIMENSIONS-4.50x15.20x42.30 IN

SHIPPING WEIGHT-10.90 LB

FRET SIZE-Jumbo

SCALE LENGTH-25.5" (64.77 cm)

SHIPPING LENGTH-42.30 IN

SHIPPING HEIGHT-4.50 IN

SHIPPING WIDTH-15.20 IN


Hardware

BRIDGE-Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)

PICKGUARD-None

PICKUP COVERS-Black

CONTROL KNOBS-Knurled Flat-Top

SWITCH TIP-Black

HARDWARE FINISH-Chrome

TUNING MACHINES-Charvel®-Branded Die-Cast

STRING TREES-Floyd Rose® Retainer Bar

TREMOLO ARM-Floyd Rose® 1000 Series Locking

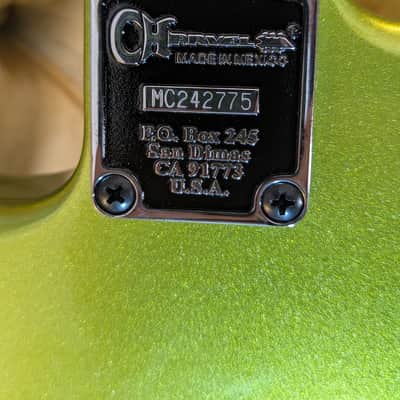

NECK PLATE-4-Bolt Serialized

STRAP BUTTONS-Standard


Electronics

BRIDGE PICKUP-Seymour Duncan® JB™ TB-4

NECK PICKUP-Seymour Duncan® '59™ SH-1N

PICKUP CONFIGURATION-HH

CONTROLS-Volume (Push/Pull Coil Split), No-Load Tone

SWITCHING-3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil

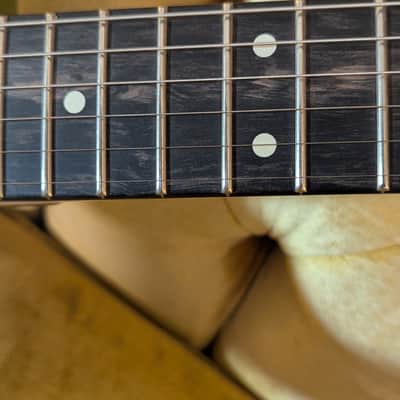

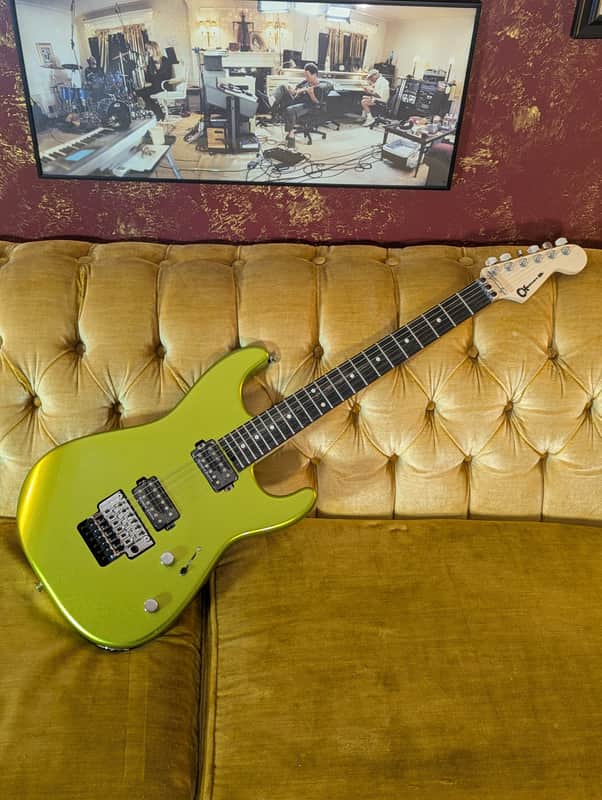

The weight on this guitar is 8.46lbs. Look at the ebony patter on this beauty! WOAH!!!!!!!

Does not come with case or gig bag. It is brand new and comes with full manufacturer's warranty!


We offer a full 7 day return / Satisfaction Guarantee on this guitar.


If you have any questions, please feel free to message us!

Listeda month ago
ConditionMint (Used)
Mint items are in essentially new original condition but have been opened or played.Learn more
Brand
Model
  • Pro-Mod San Dimas Style 1 HH FR E
Finish
  • Lime Green
Categories
Year
  • 2024
Made In
  • Mexico
Finish Style
  • Metallic
Fretboard Radius
  • 12"
  • 16"
Series
  • Charvel Pro-Mod
Right / Left Handed
  • Right Handed
Body Shape
  • S-Style
Number of Strings
  • 6-String
Neck Material
  • Maple
Offset Body
  • Non-Offset Body
Bridge/Tailpiece Type
  • Locking Tremolo Bridge
Body Type
  • Solid Body
Body Material
  • Alder
Pickup Configuration
  • HH
Wood Top Style
  • Opaque
Nut Width
  • 1.6875"
Model Sub-Family
  • Charvel San-Dimas Style 1
Fretboard Material
  • Ebony
Color Family
  • Green
Scale Length
  • 25.5"
Model Family
  • Charvel Style 1
Neck Construction
  • Bolt-On
Number of Frets
  • 22
